Under the Rear Suspension Crossmember

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The floor jack pad must not be placed under the rear suspension crossmember front reinforcement rib.

Position the floor jack pad as shown in Fig 1.

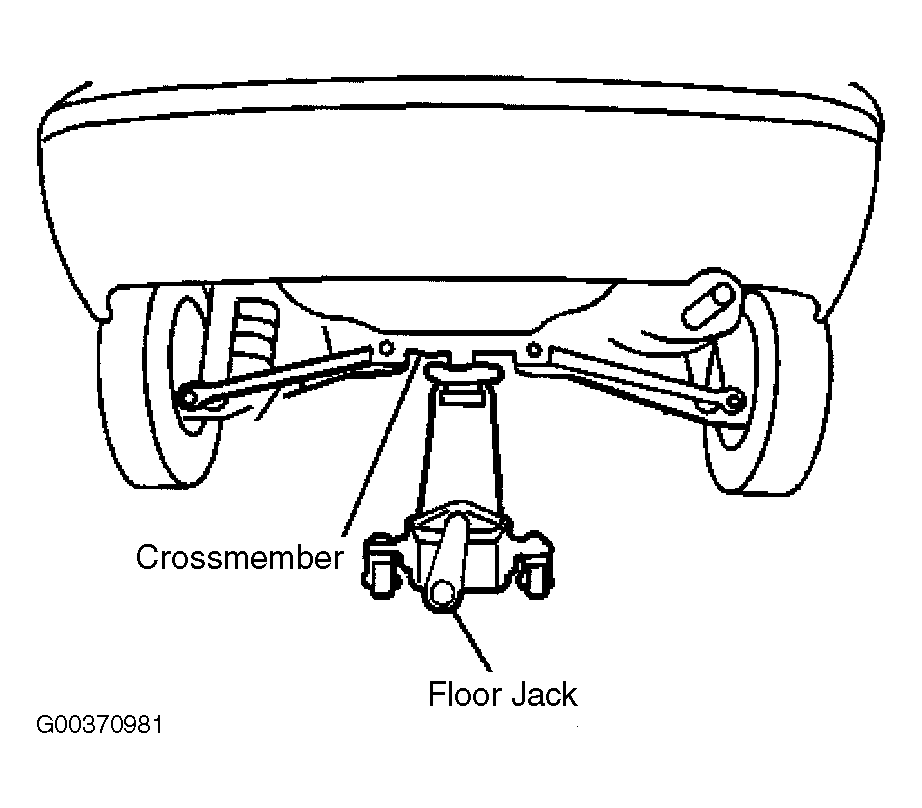

Fig 1: Positioning Floor Jack Under Rear Suspension Crossmember
G00370981Courtesy of GENERAL MOTORS CORP.
