Under the Front Control Arm

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Position the jack as shown in Fig 1.

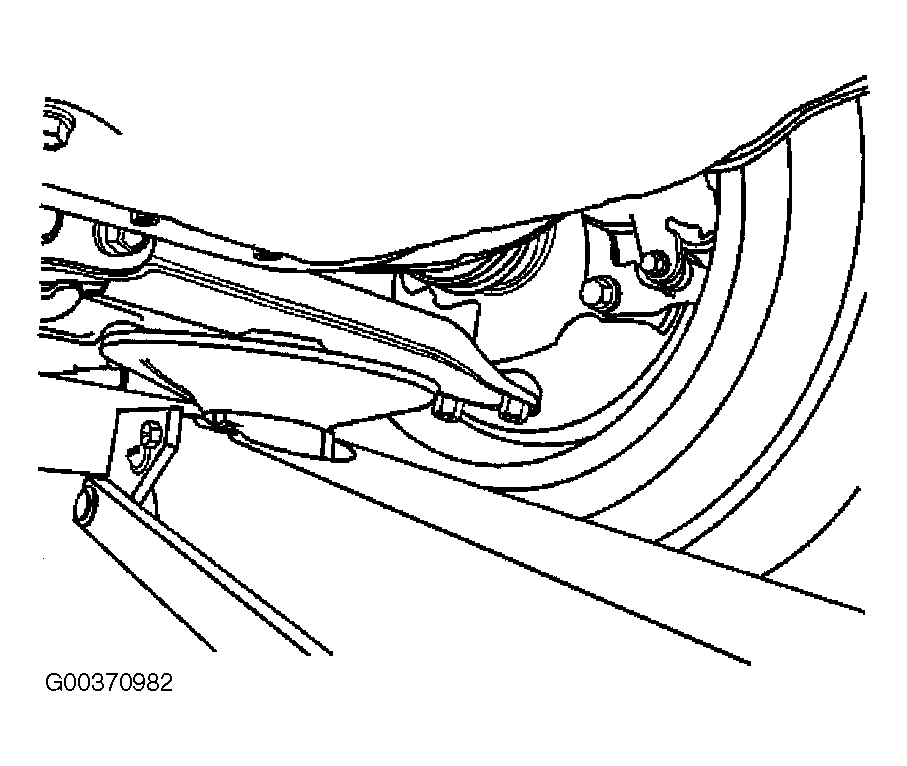

Fig 1: Positioning Floor Jack Under Front Control Arm
G00370982Courtesy of GENERAL MOTORS CORP.
