Wheel Stud Replacement: Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

If the vehicle has rear disc brakes, remove the rear brake rotor. Refer to REAR BRAKE ROTOR .
If the vehicle has rear drum brakes, remove the brake drum. Refer to BRAKE DRUM .
Install 2 wheel nuts onto 2 studs.
Use a pry bar on the 2 nuts in order to prevent the hub from turning.
Use the J 43631 in order to remove the wheel stud.

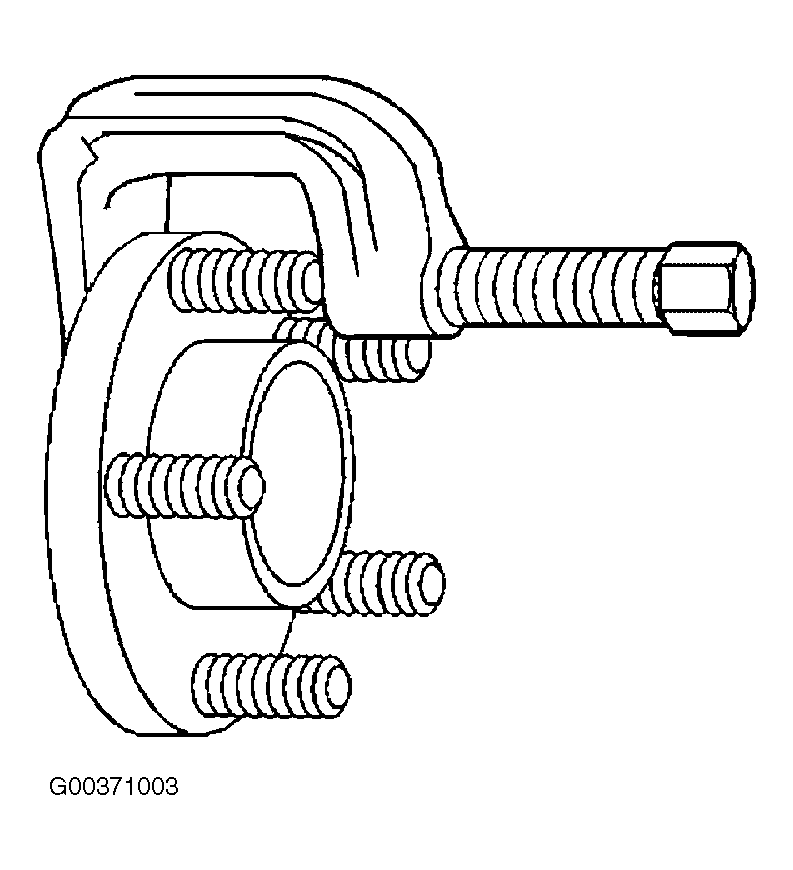

Fig 1: Using J43631 To Remove Wheel Stud
Courtesy of GENERAL MOTORS CORP.
