Wheel Bearing/Hub Replacement - Rear (Fwd): Installation
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to FASTENER NOTICE .

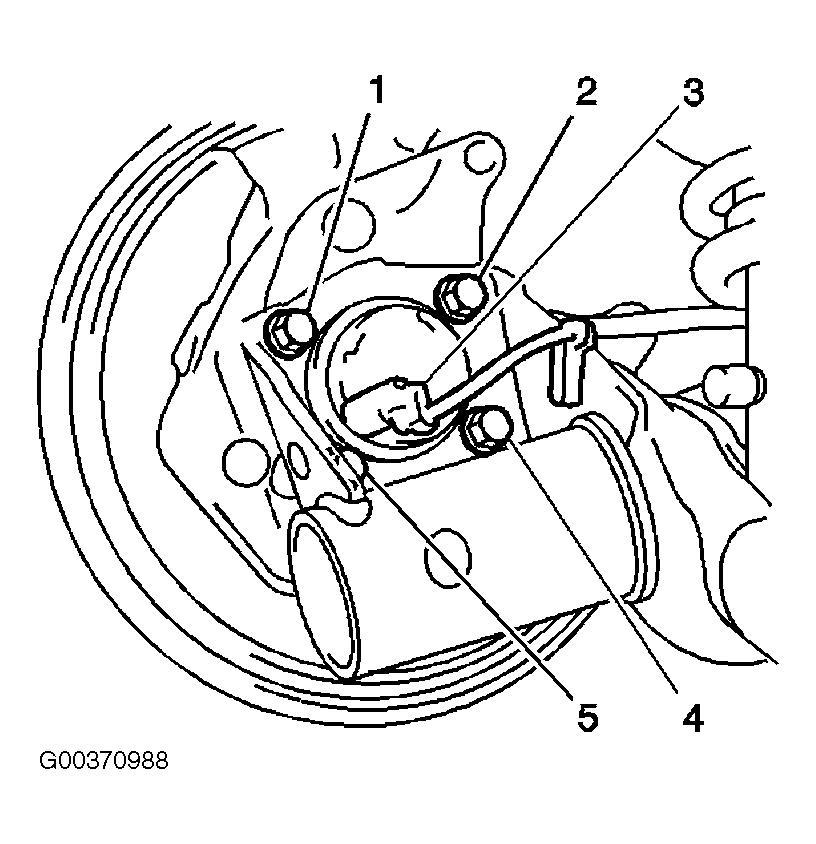

- Install the wheel bearing and hub assembly and the 4 bolts (1,2,4,5). See Figure. Tighten the bolts to 61 N.m (45.0 lb ft).
- Connect the rear wheel speed sensor connector (3). See Figure.
- If the vehicle has rear drum brakes, install the brake drum. Refer to BRAKE DRUM .
- If the vehicle has rear disc brakes, install the rear brake rotor. Refer to REAR BRAKE ROTOR .
- Perform DIAGNOSTIC SYSTEM CHECK - ABS in ANTILOCK BRAKE SYSTEM .
