Wheel Bearing/Hub Replacement - Rear (AWD): Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear knuckle. Refer to KNUCKLE REPLACEMENT - AWD .

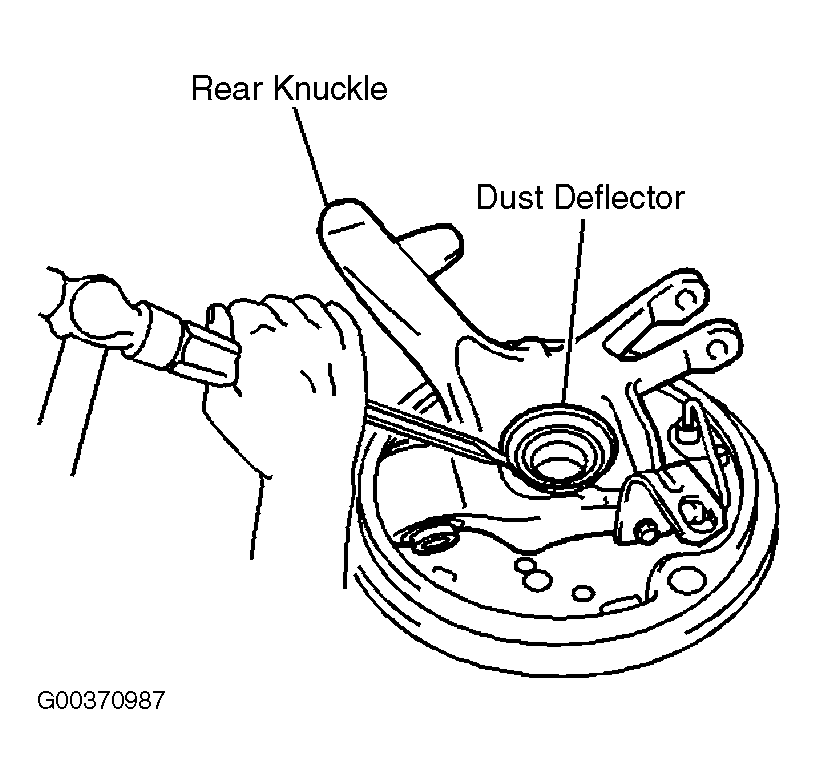

  2. Remove the dust deflector.
    Fig 1: Removing Dust Deflector
    G00370987Courtesy of GENERAL MOTORS CORP.

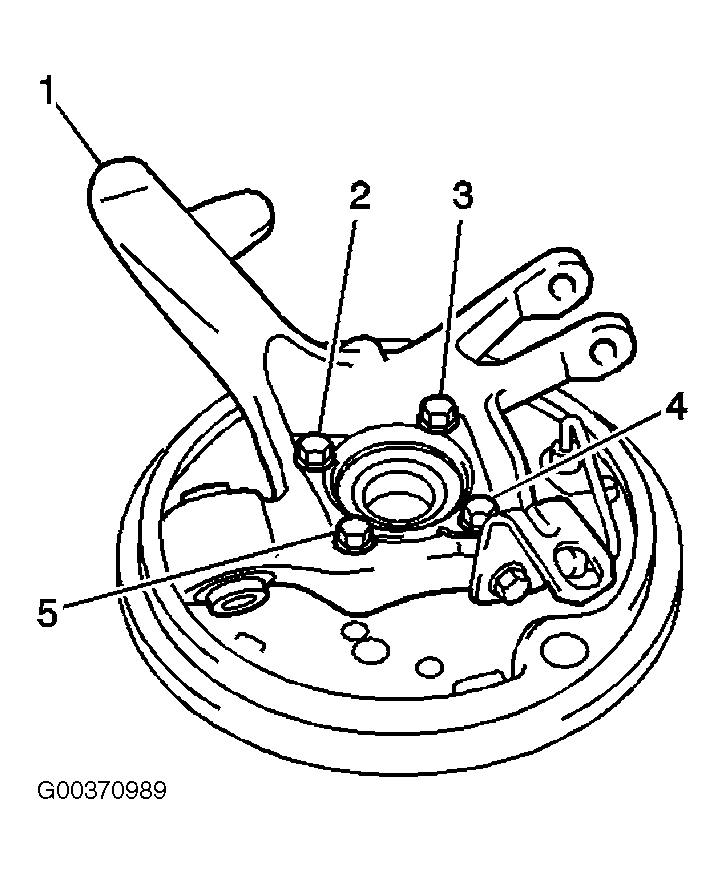

  3. Remove the 4 bolts (2,3,4,5) from hub assembly (1).
    Fig 2: Removing Hub Bearing Bolts
    G00370989Courtesy of GENERAL MOTORS CORP.
  4. Remove the wheel bearing and hub assembly.
