Stabilizer Shaft Replacement - Fwd: Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

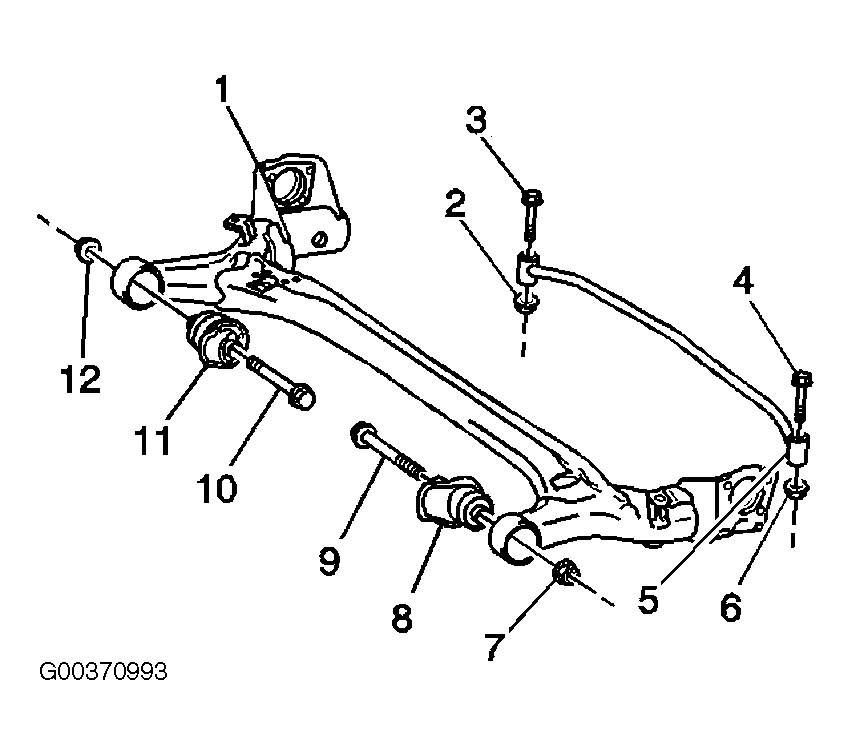

  1. Use the mark on the left rear side of the stabilizer shaft (5) in order to position the shaft on the rear axle (1). See Figure.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the 2 bolts (3,4) and the 2 nuts (2,6) in order to retain the shaft to the axle. See Figure. Tighten the nuts and the bolts to 195 N.m (143.8 lb ft).
