Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle.
Support the rear axle at a curb height position.
Remove the rear tie rod mounting bolt, washers and rear tie rod mounting nut from the frame bracket.

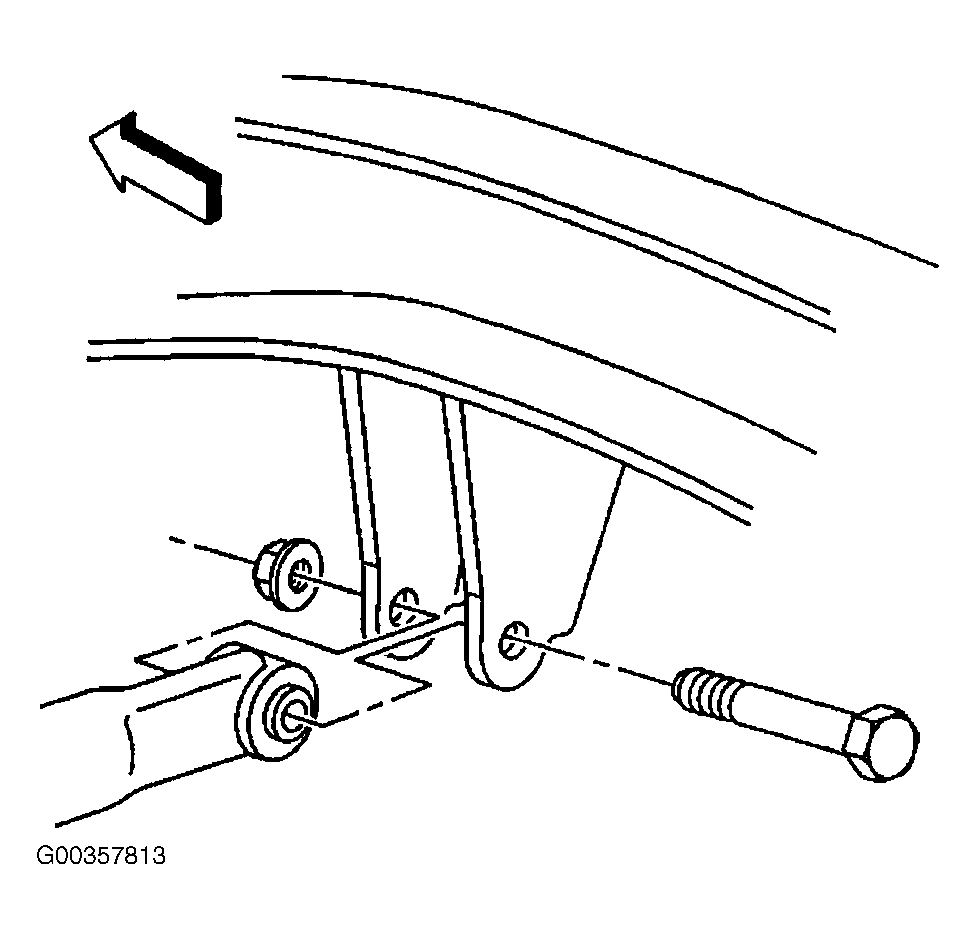

Fig 1: Removing Rear Tie Rod Mounting Bolt & Nut From Frame Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the rear tie rod mounting bolt, washers and rear tie rod mounting nut from the axle bracket.

Fig 2: Removing Rear Tie Rod Mounting Bolt & Nut From Axle Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the rear tie rod.

Fig 3: Removing Rear Tie Rod
Courtesy of GENERAL MOTORS CORP.
