Support Replacement: Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

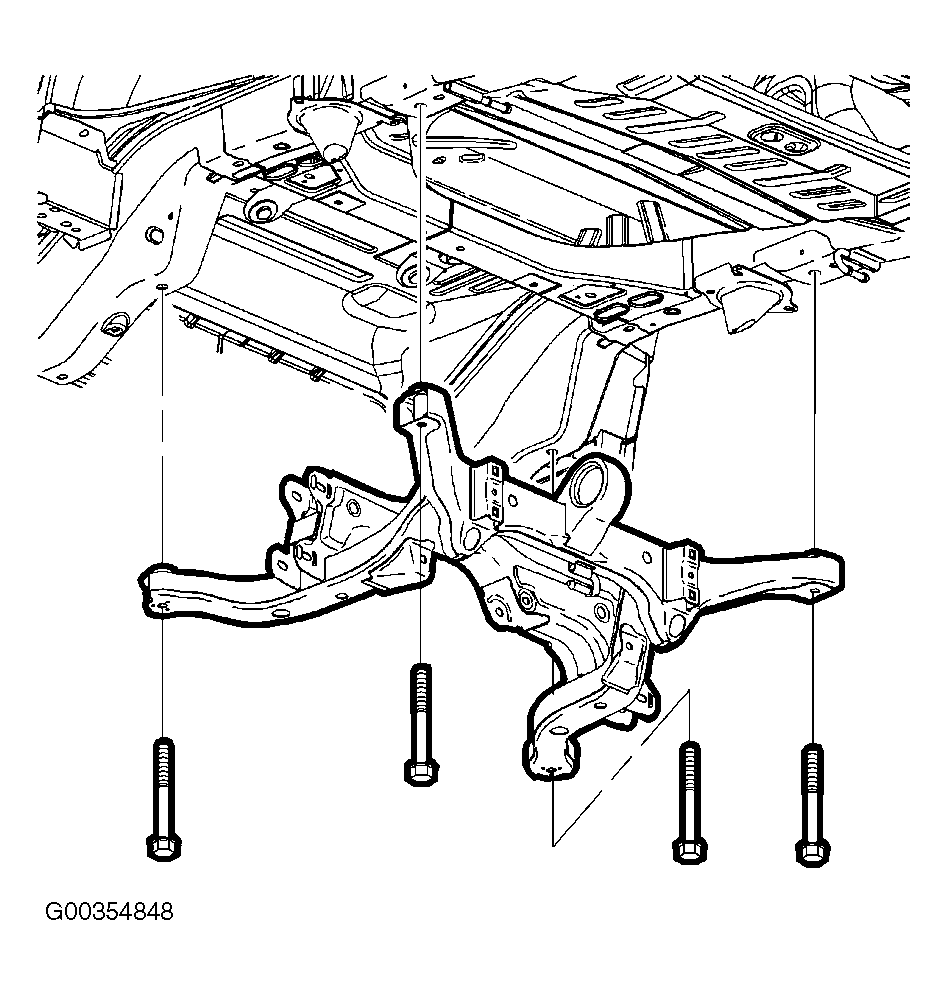

  1. Position the support assembly to the vehicle. See Figure.
  2. Install the support to body bolts. Tighten the support to body bolts to 170 N.m (125 lb ft).
  3. Connect the toe link to the support assembly. See TOE LINK REPLACEMENT .
  4. Connect the upper control arm to the support assembly. Refer to REAR AXLE UPPER CONTROL ARM REPLACEMENT .
  5. Install the lower control arm to the support assembly. Refer to REAR AXLE LOWER CONTROL ARM BUSHING REPLACEMENT .
  6. Install the stabilizer shaft. Refer to STABILIZER SHAFT REPLACEMENT .
  7. If equipped with all wheel drive, install the rear drive axle. Refer to DIFFERENTIAL REPLACEMENT in REAR DRIVE AXLE .
  8. Install the exhaust muffler and resonator assembly.
  9. Install the tires and wheels.
  10. Lower the vehicle.
  11. Check the rear alignment.
