Removal (4.2L)

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery negative cable. Remove the vacuum brake booster hose.
Remove the battery positive lead from the solenoid. See Fig 1. Remove the starter solenoid S-terminal lead nut from the solenoid. See Fig 2. Remove the starter solenoid S-terminal lead from the solenoid.
Remove the starter mount bolt and nut. Remove the starter motor. See Fig 3.

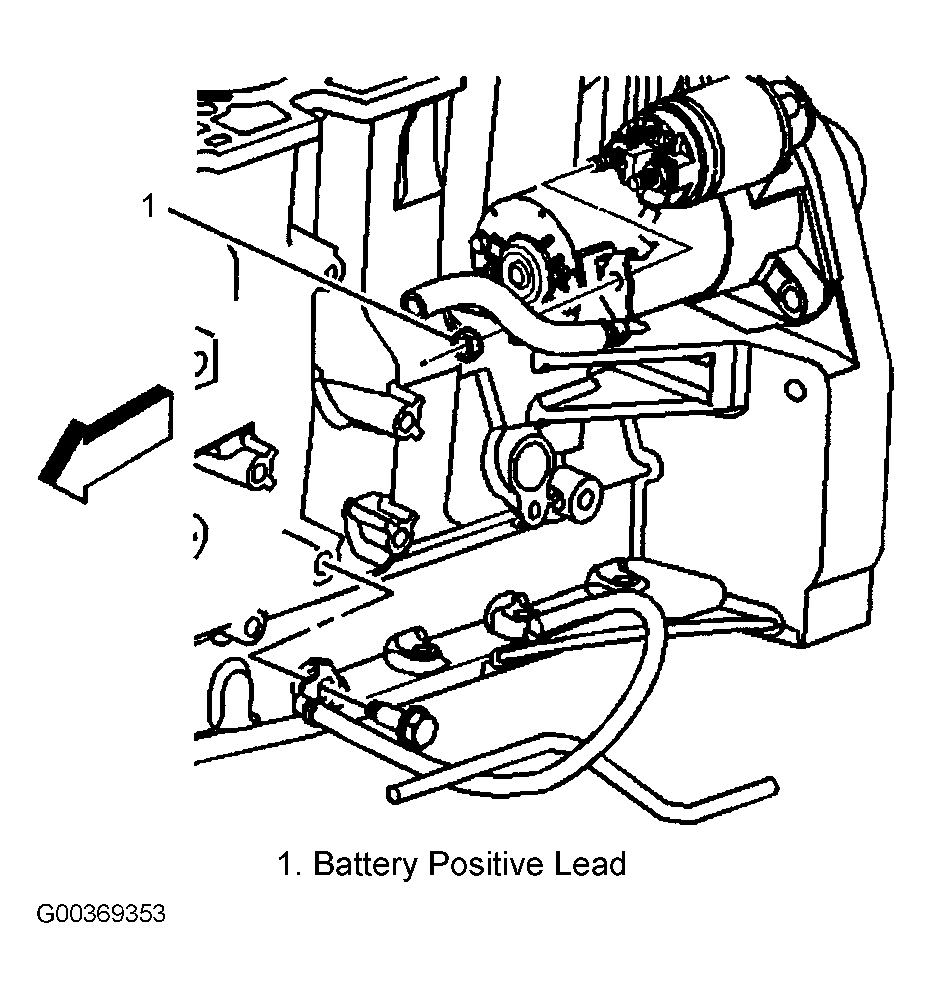

Fig 1: Identifying Battery Positive Lead

Courtesy of GENERAL MOTORS CORP.

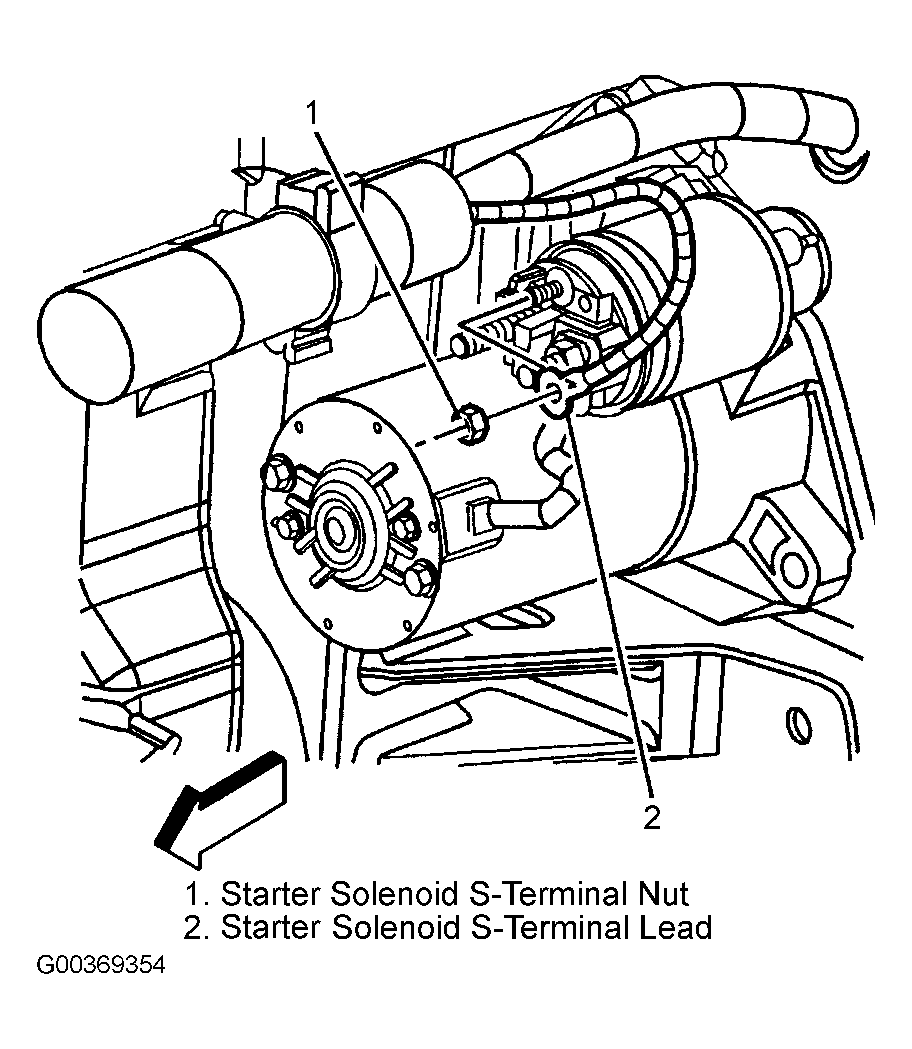

Fig 2: Identifying Starter Solenoid S Terminal

Courtesy of GENERAL MOTORS CORP.

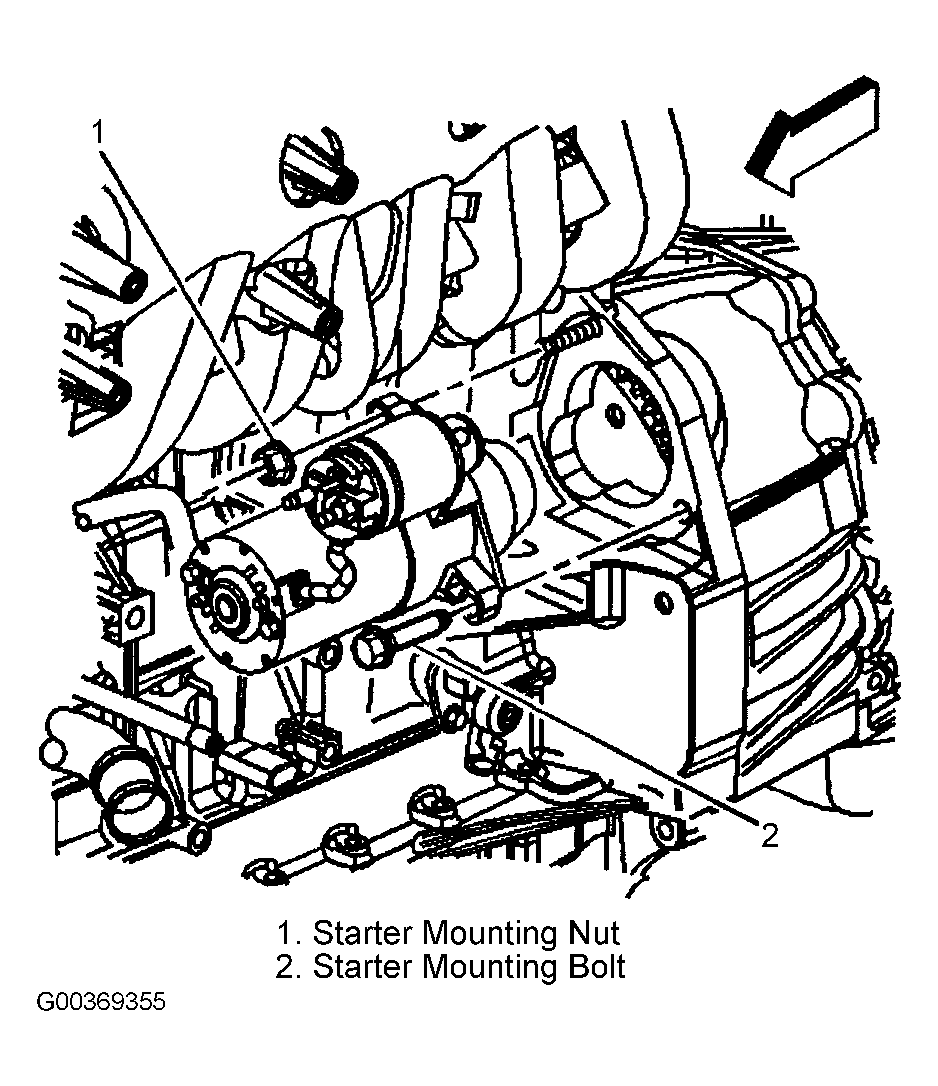

Fig 3: Identifying Starter Motor And Mounting Hardware

Courtesy of GENERAL MOTORS CORP.
