Valve Guide Installation

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

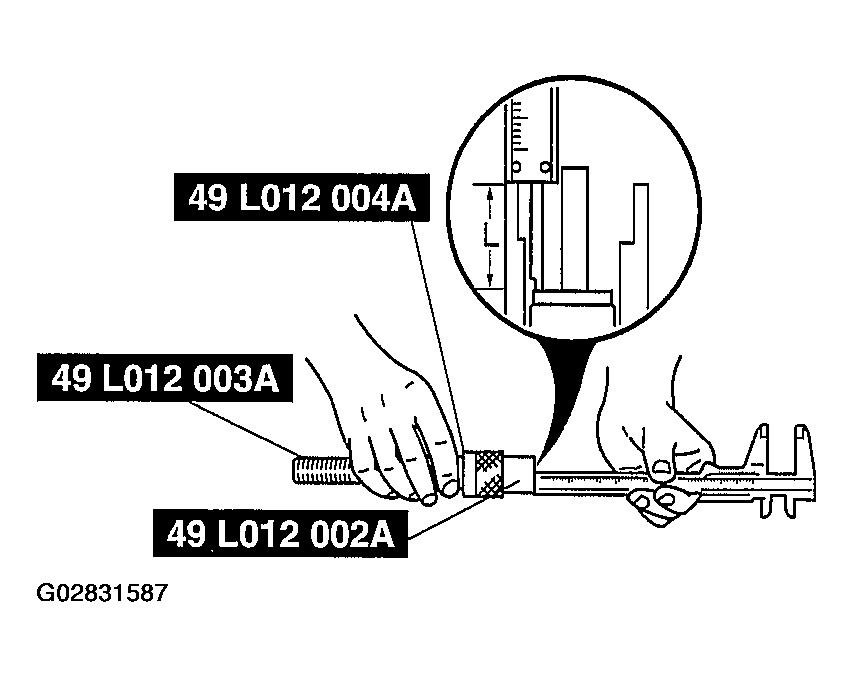

Assemble the SSTs so that depth L is as specified.
Depth L
1. 12.2-12.8 mm {0.481-0.503 in}

  Fig 1: Identifying Depth L
  Courtesy of MAZDA MOTORS CORP.
Tap the valve guide in from the side opposite the camshaft side until the SSTs contacts the cylinder head.

Fig 2: Installing Valve Guide
Courtesy of MAZDA MOTORS CORP.
Verify that the valve guide protrusion height (dimension A) is within the specification.
Standard Height
1. 12.2-12.8 mm {0.481-0.503 in}

  Fig 3: Measuring Valve Guide Protrusion Height
  Courtesy of MAZDA MOTORS CORP.
