Timing Chain Assembly Note

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

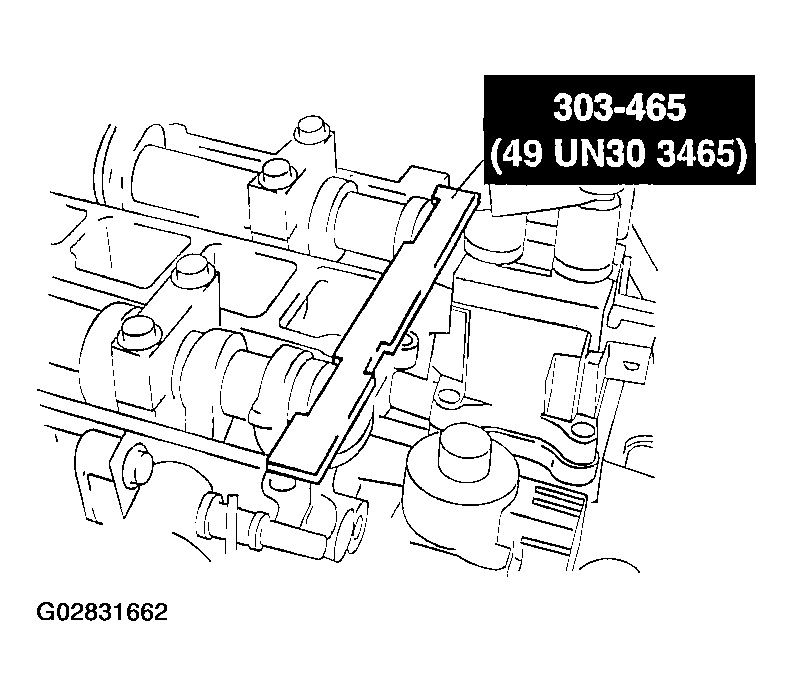

  1. Install the SST  to the camshaft, then align the No. 1 camshaft position with the TDC.
  2. Remove the cylinder block lower blind plug.
    Fig 1: Removing Cylinder Block Lower Blind Plug
    G02831662Courtesy of MAZDA MOTORS CORP.

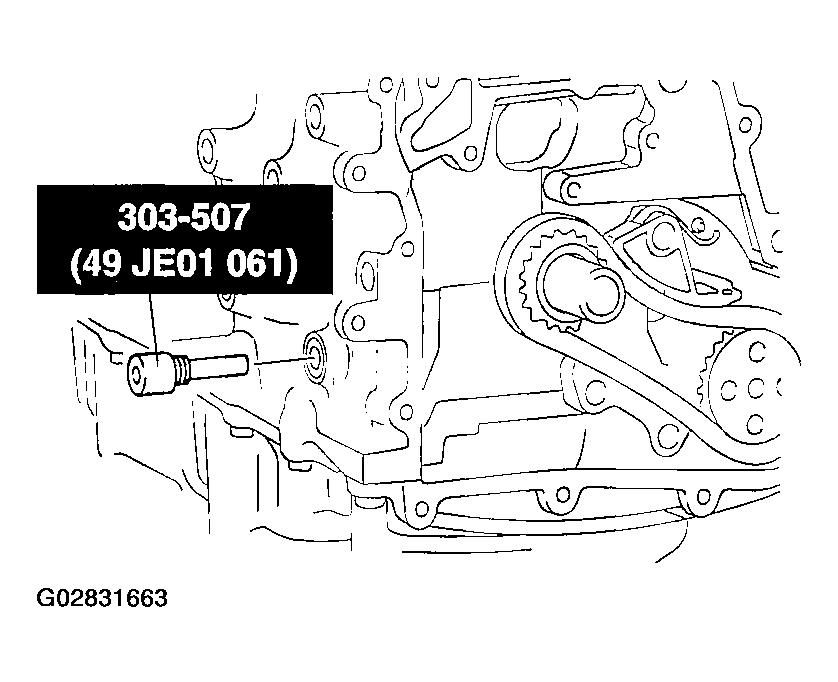

  3. Install the SST  as shown in the figure.
    Fig 2: Installing SST
    G02831663Courtesy of MAZDA MOTORS CORP.
  4. Turn the crankshaft clockwise so that the crankshaft is in the No.1 cylinder TDC position.
  5. Install the timing chain.

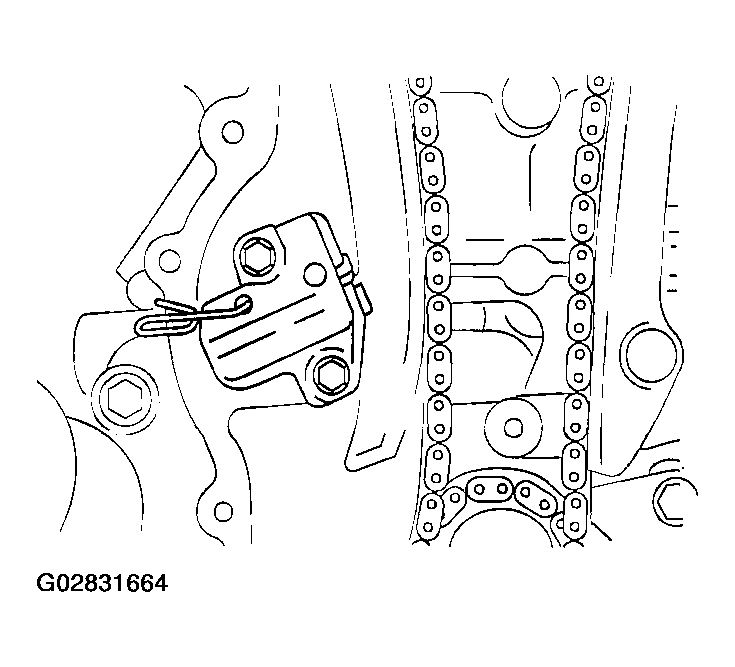

  6. Install the chain tensioner and remove the retaining wire.
    Fig 3: Installing Timing Chain Tensioner
    G02831664Courtesy of MAZDA MOTORS CORP.
