Cylinder Head Cover Assembly Note
WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

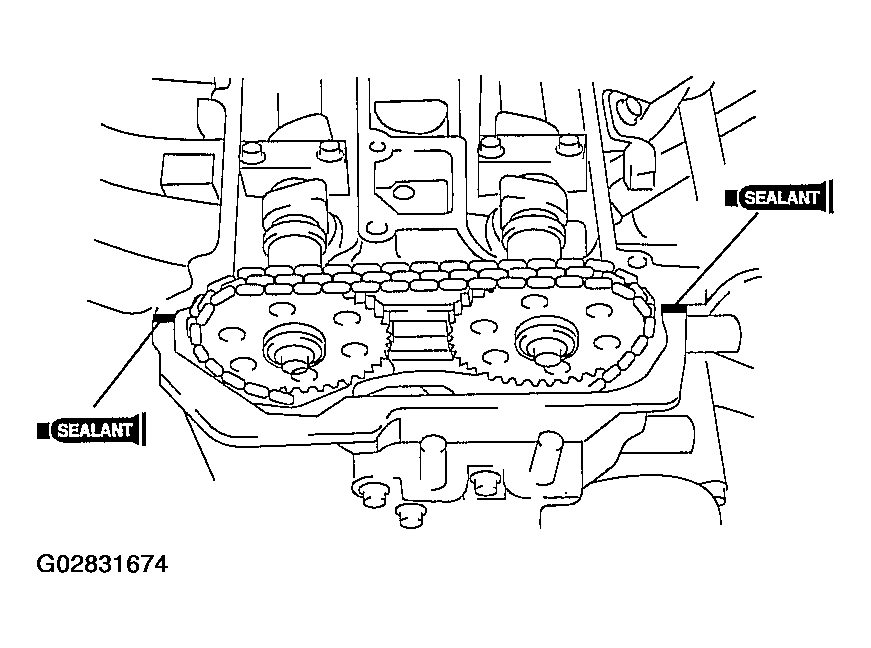

- Apply silicone sealant to the mating faces as shown in the figure.CAUTION:
- Install the cylinder head cover within 10 min. of applying the silicone sealant.
Dot Diameter
- 4.0-6.0 mm {0.16-0.23 in}
- Install the cylinder head cover with a new gasket.

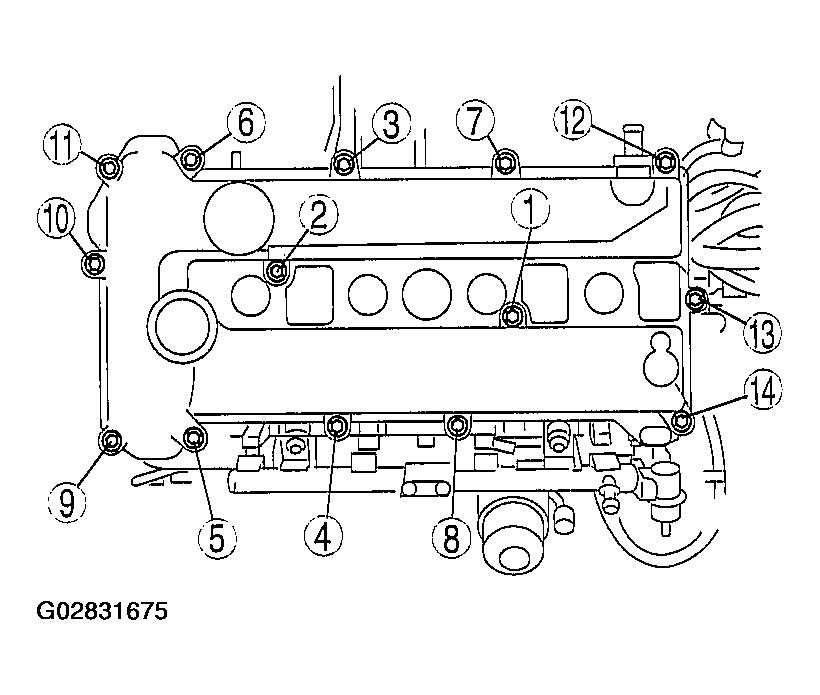

- Tighten the bolts in the order shown in the figure.
Tightening Torque
- 8.0-10.5 N.m {81.6-107.1 kgf.cm, 70.9-92.9 in.lbf}
