Tappet Inspection

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Measure the tappet hole inner diameter in X and Y directions at the two points (A and B) shown in the figure.
Inner Diameter
1. 31.000-31.030 mm {1.2205-1.2216 in}

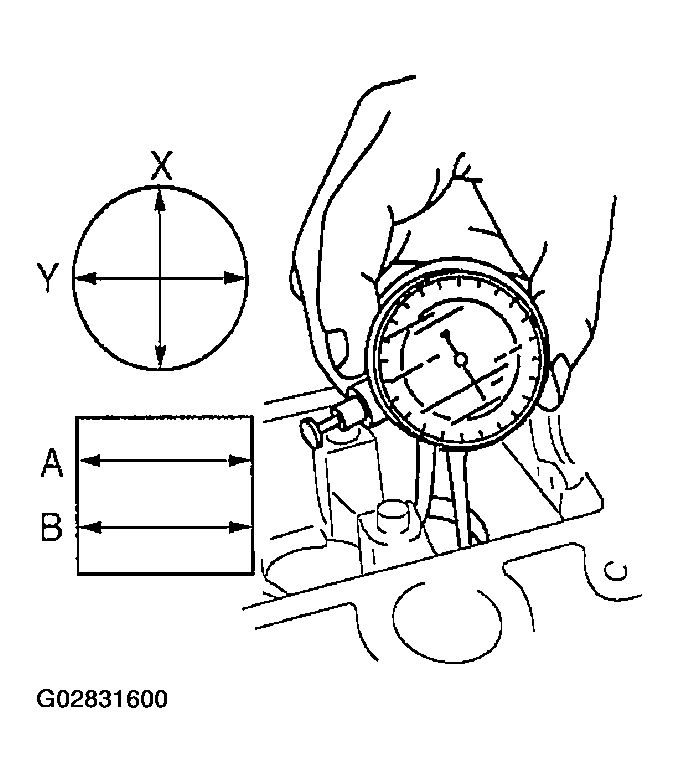

Fig 1: Measuring Tappet Hole Inner Diameter
Courtesy of MAZDA MOTORS CORP.
Measure the tappet body outer diameter in X and Y directions at the two points (A and B) shown in the figure.
Outer Diameter
1. 30.970-30.980 mm {1.2193-1.2196 in}
Subtract the tappet body outer diameter from the tappet hole inner diameter.
- If it exceeds the specification, replace the tappet or cylinder head.

  Fig 2: Measuring Tappet Body Outer Diameter & Tappet Hole Inner Diameter
  Courtesy of MAZDA MOTORS CORP.
Standard Clearance
1. 0.02-0.06 mm {0.0008-0.0023 in}
Maximum Clearance
1. 0.15 mm {0.006 in}
