Camshaft Sprocket Lock Bolt, Variable Valve Timing Actuator Lock Bolt (L3) Disassembly Note

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the camshaft by using a wrench on the cast hexagon as shown, and loosen the camshaft sprocket installation bolt or variable valve timing actuator installation bolt (L3).

    LF

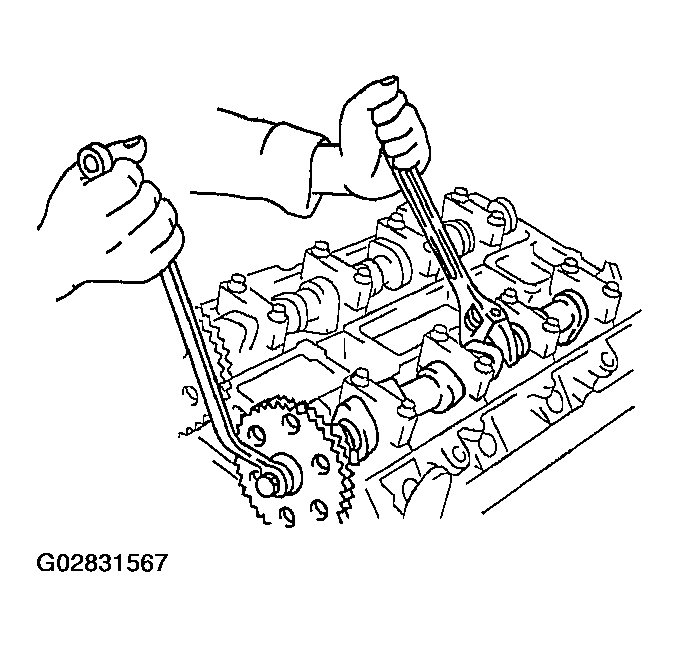

    Fig 1: Removing Camshaft Sprocket Bolt (LF)
    G02831567Courtesy of MAZDA MOTORS CORP.

    L3

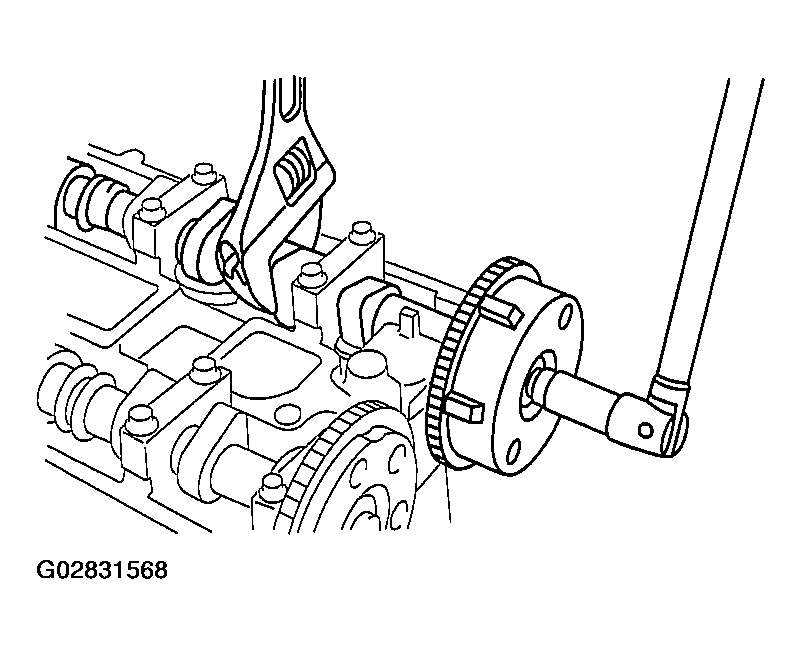

    Fig 2: Removing Camshaft Sprocket Bolt (L3)
    G02831568Courtesy of MAZDA MOTORS CORP.
