Main Bearing Cap Disassembly Note

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the crankshaft end play. (See CRANKSHAFT INSPECTION .)
  2. Loosen the main bearing cap bolts in two or three steps in the order shown in the figure.

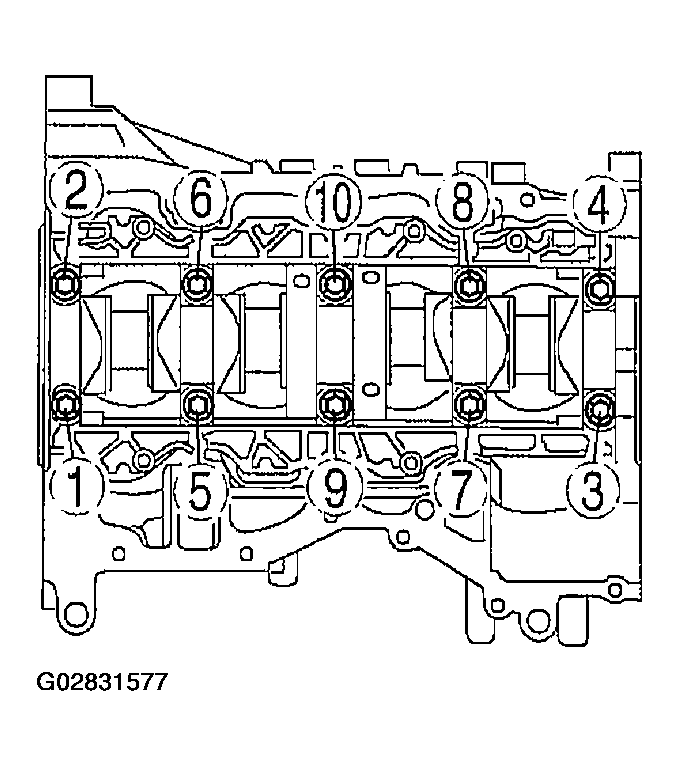

    Fig 1: Main Bearing Cap Bolt Loosening Sequence
    G02831577Courtesy of MAZDA MOTORS CORP.
