Rear Oil Seal Assembly Note

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

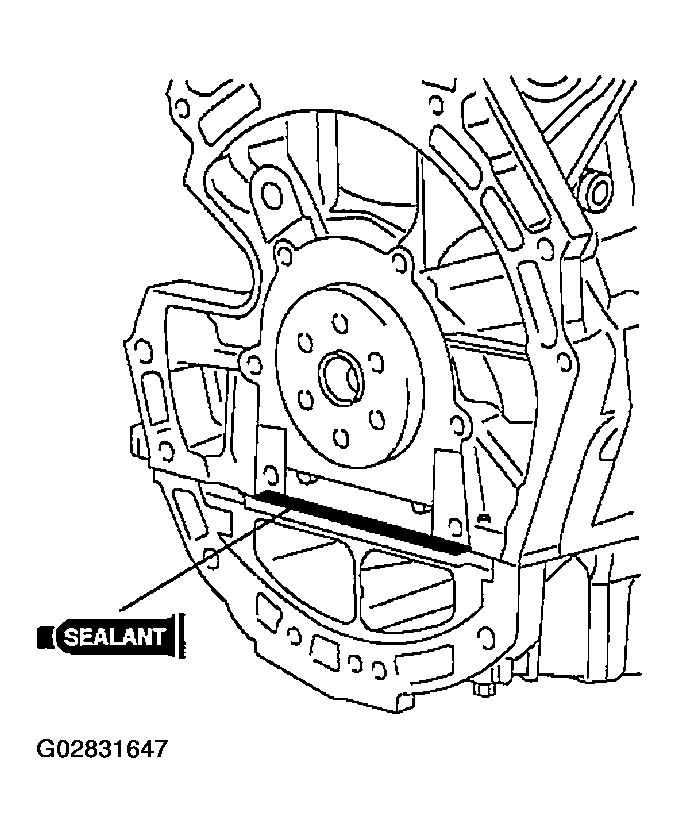

Apply silicone sealant to the mating faces as shown in the figure.
Thickness
1. 4.0-6.0 mm {0.16-0.23 in}
Fig 1: Applying Silicone Sealant
Courtesy of MAZDA MOTORS CORP.
Apply clean engine oil to the new oil seal lip.
Install the rear oil seal using the jig as shown in the figure.

Fig 2: Installing Rear Oil Seal
Courtesy of MAZDA MOTORS CORP.

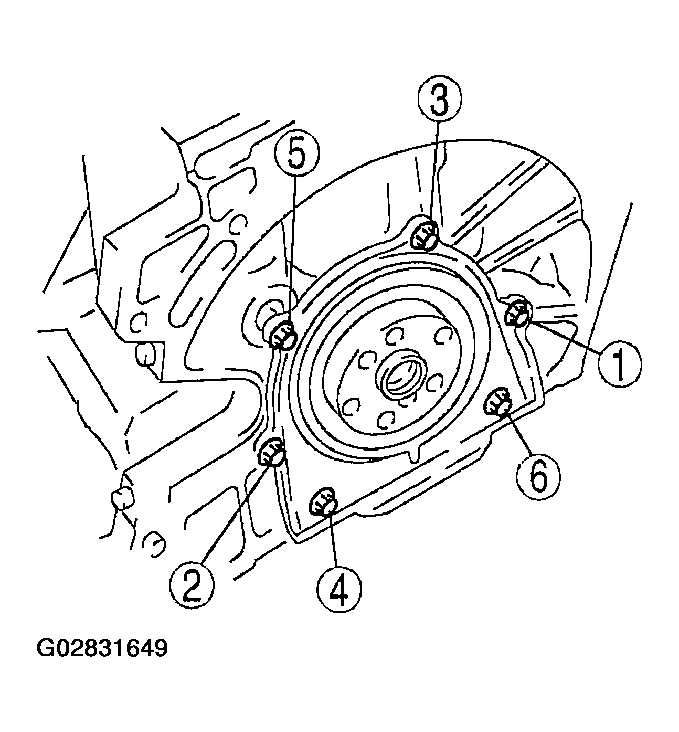

Tighten the rear oil seal bolts in the order as shown in the figure.
Tightening Torque
1. 8.0-11.5 N.m {81.6-117.2 kgf.cm, 70.9-101.7 in.lbf}
