Oil Pan Assembly Note

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

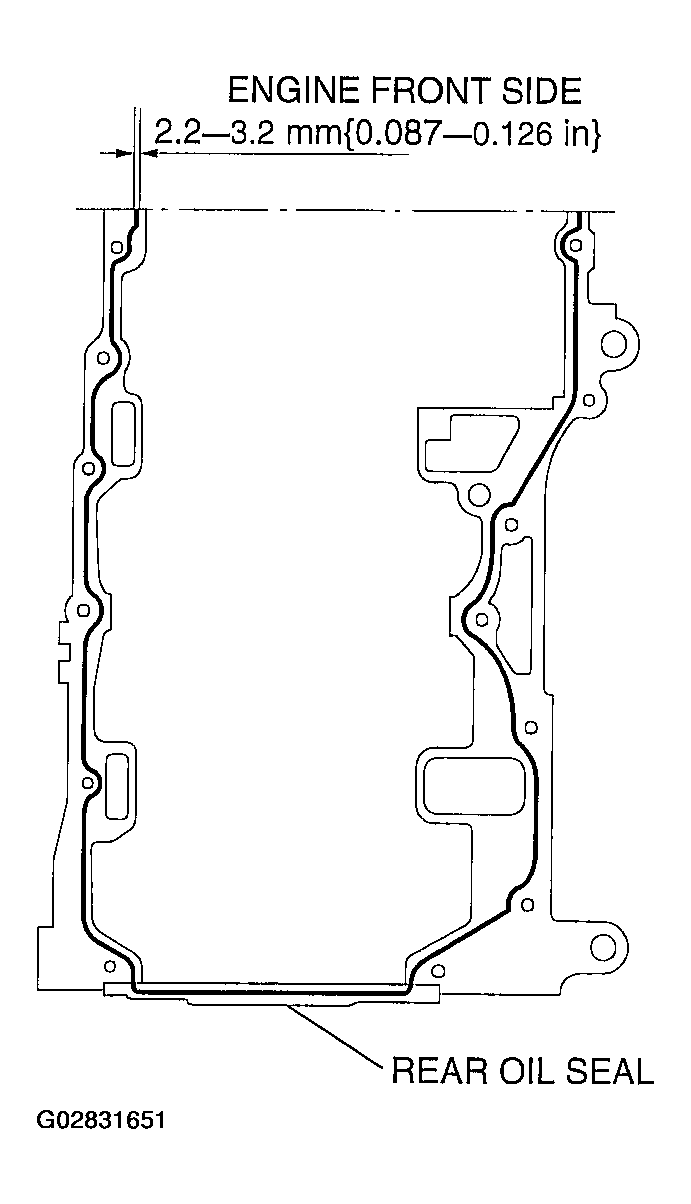

Apply a continuous bead of silicone sealant to the oil pan as indicated in the figure.
CAUTION:
- Install the oil pan within 10 min. of applying the silicone sealant.
- Make sure that there is no oil or dust on the seal side of oil pan.
Fig 1: Applying A Continuous Bead Of Silicone Sealant
Courtesy of MAZDA MOTORS CORP.

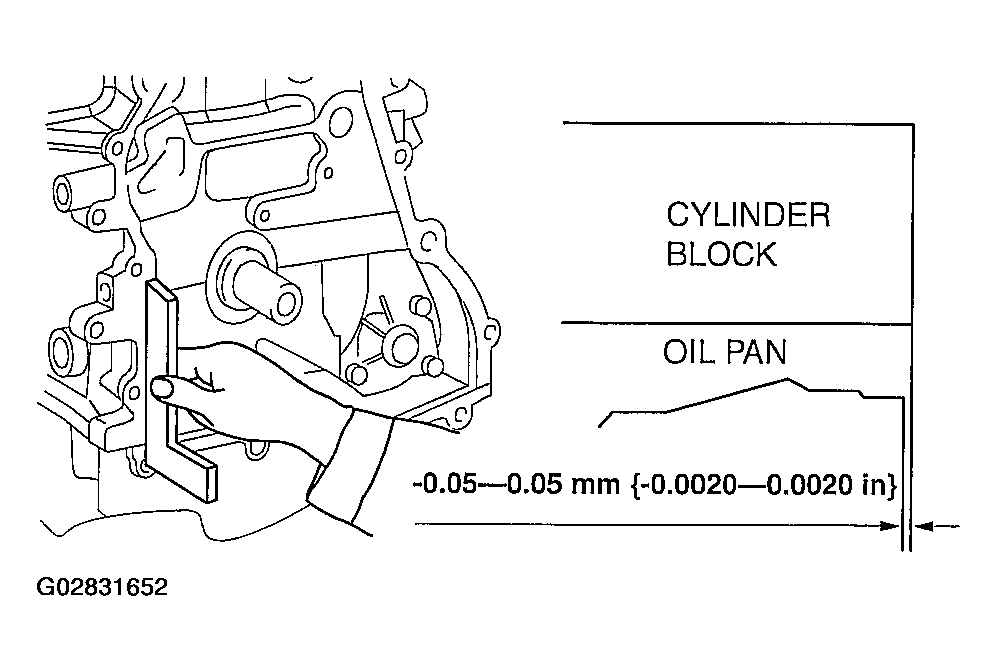

Use a square ruler to unite the oil pan and the cylinder block junction side on the engine front cover side.

Fig 2: Aligning Oil Pan To Cylinder Block
Courtesy of MAZDA MOTORS CORP.

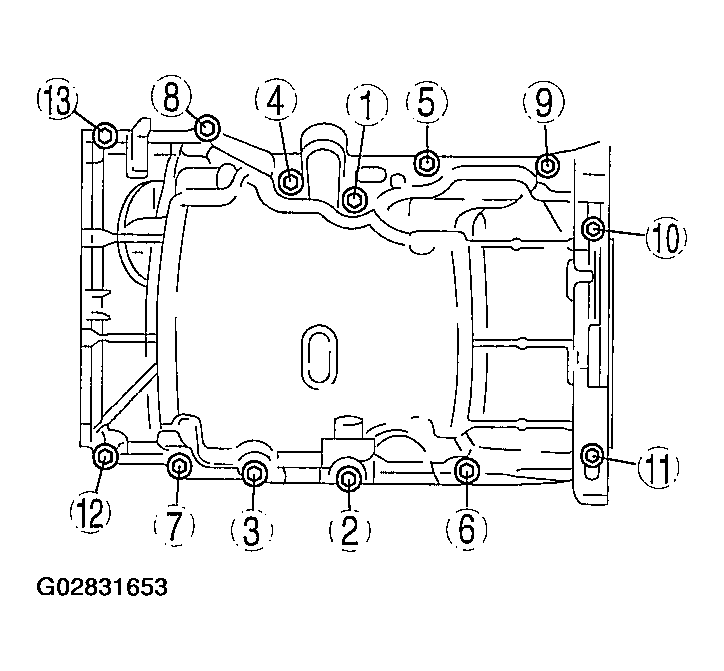

Tighten the rear oil pan bolts in the order as shown in the figure.
Tightening Torque
1. 17-23 N.m {1.8-2.3 kgf.m, 12.6-16.9 ft.lbf}
