Cylinder Block (I) Assembly: Notes

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble in the order indicated in the figure.

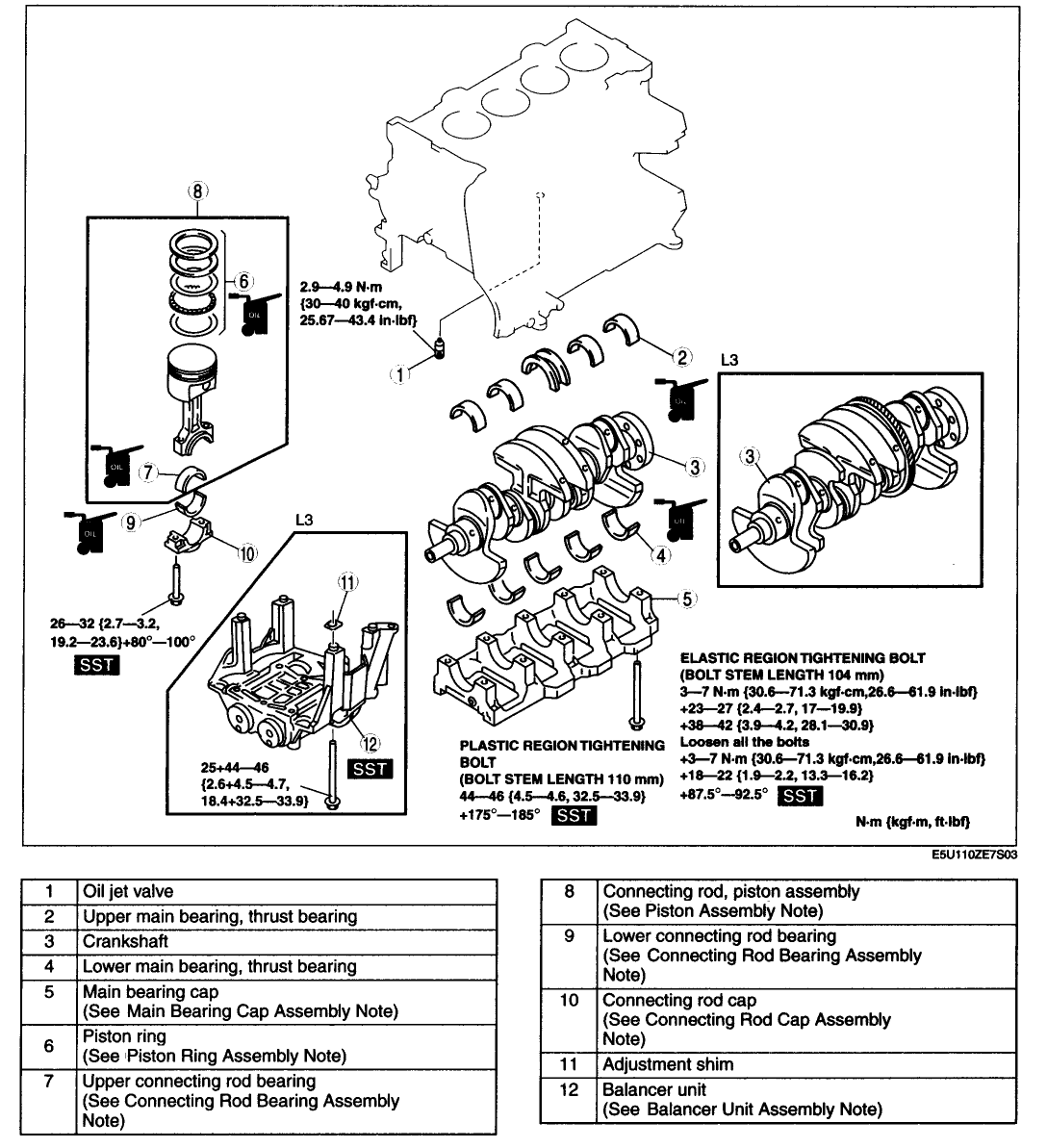

    Fig 1: Assembling Cylinder Block & Engine Balancer - With Torque Specifications
    G00501061Courtesy of MAZDA MOTORS CORP.
