Main Bearing Cap Assembly Note
WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

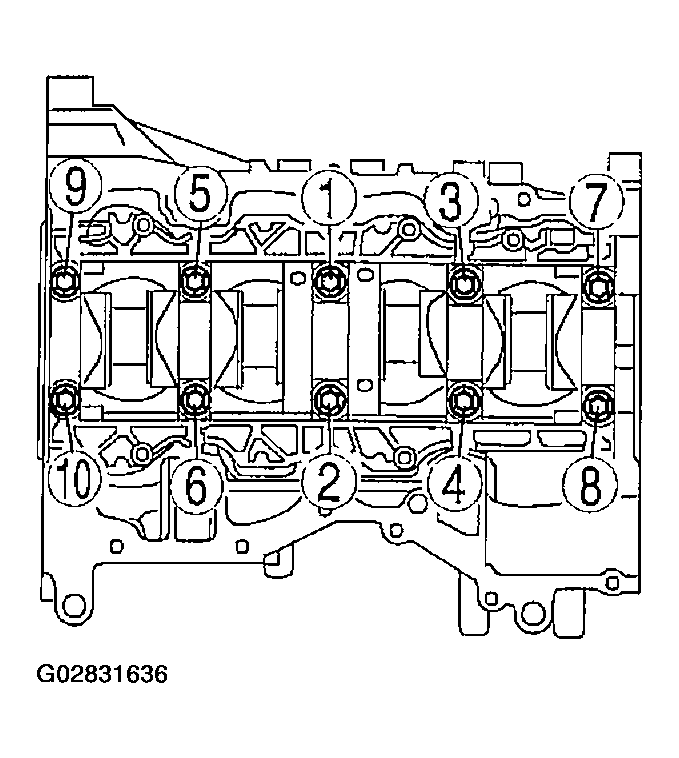

- Install the main bearing caps in the order indicated in the figure.
- Tighten the main bearing cap bolts using the SST (49 D032 316). See Figure.
Tightening Torque
- (1) 44-46 N.mn {4.5-4.6 kgf.m, 32.5-33.9 ft.lbf}
- (2) plus 175°-185°
- (1) Apply engine oil to all bolts.
- (2) 3-7 Nm {30.6-71.3 kgfcm, 26.6-61.9 inlbf}
- (3) plus 23-27 Nm {2.4-2.7 kgfm, 17-19.9 ftlbt}
- (4) plus 38-42 Nm {3.9-4.2 kgfm, 28.1-30.9 ftlbt}
- (5) Loosen all the bolts. (no remaining torque.)
- (6) plus 3-7 Nm {30.6-71.3 kgfcm, 26.6-61.9 inlbt}
- (7) plus 18-22 Nm {1.9-2.2 kgfm, 13.3-16.2 ftlbt}
- (8) plus 87.5°-92.5°
Plastic region tightening bolt (Bolt stem length 110 mm)
Elastic region tightening bolt (Bolt stem length 104 mm)
