Bolt Inspection

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2009 Mazda B2300, 2009 Mazda 5, 2008 Mazda Tribute, 2008 Mazda B2300, and 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the length of each bolt.
    • If it exceeds the specification, replace the bolt.

    Length L

    Fig 1: Measuring Bolt Length
    G02831615Courtesy of MAZDA MOTORS CORP.

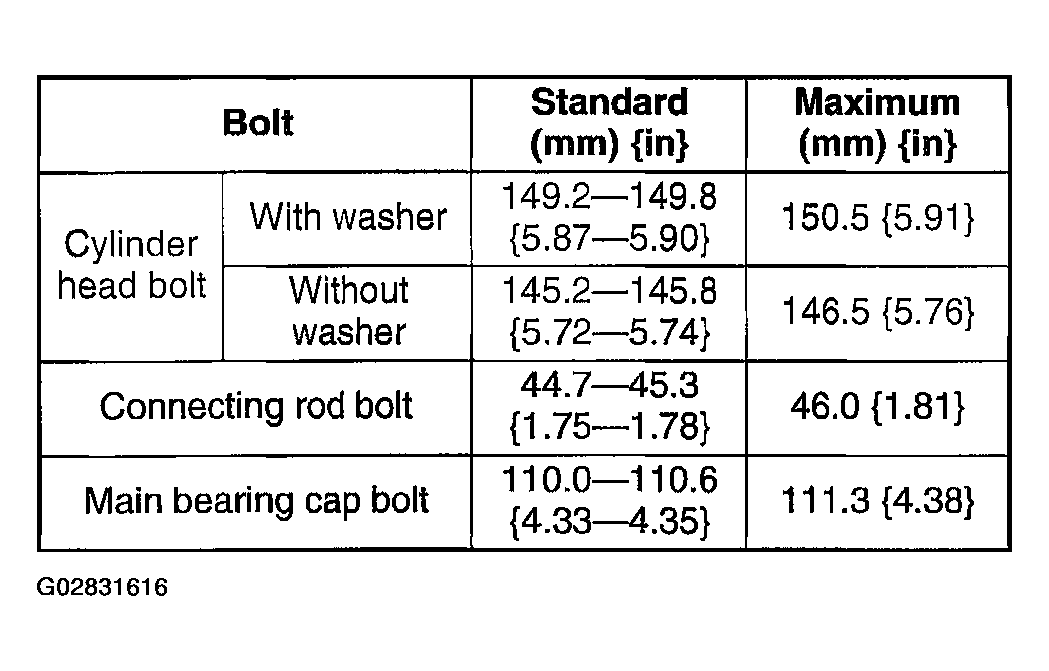

    Fig 2: Bolt Specifications
    G02831616Courtesy of MAZDA MOTORS CORP.
