Removal & Installation: Starter: Removal
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

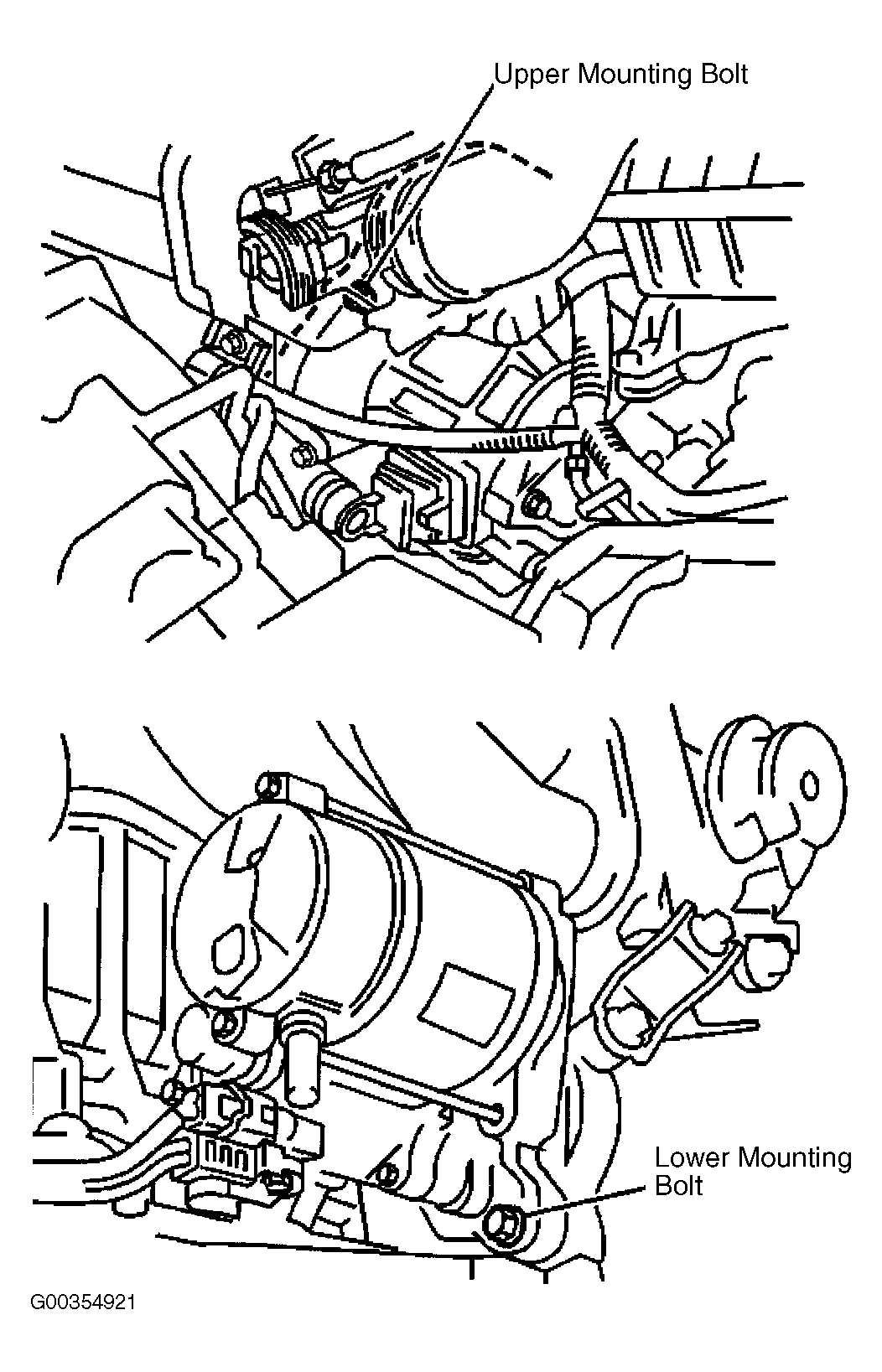

Disconnect the negative battery cable. Remove the starter motor electrical connector from the starter solenoid. Remove the retaining nut and the positive battery cable from the starter solenoid. Remove the upper mounting bolt. Remove the lower mounting bolt and the starter motor from the vehicle.
