Control Valve Body Cover: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

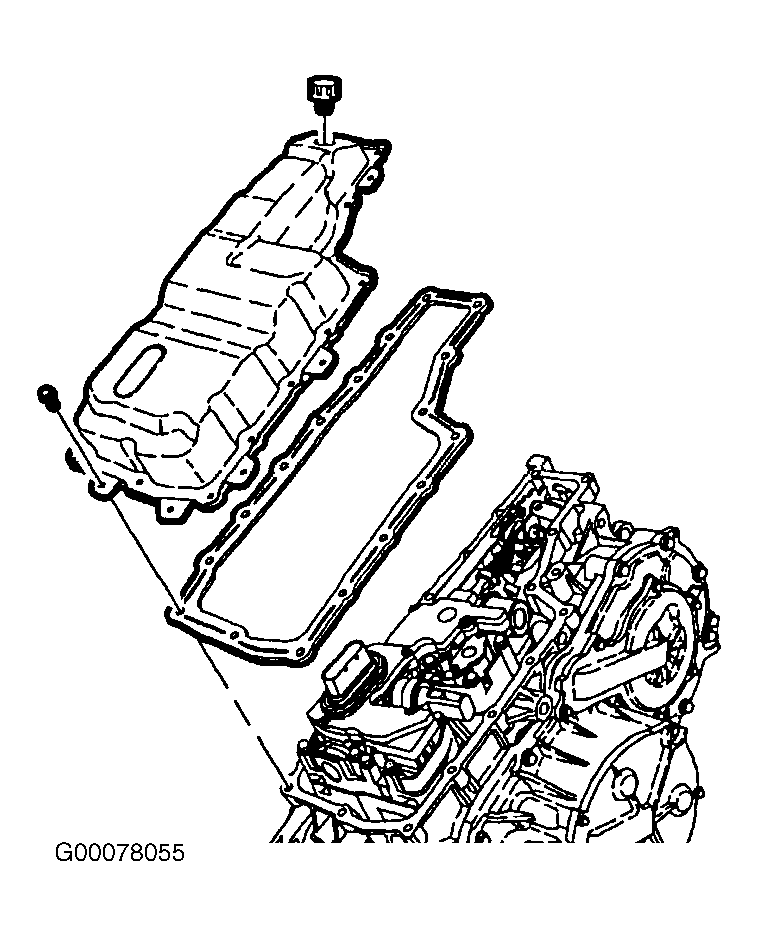

  1. Install a new control valve body cover gasket on transaxle case assembly. Inspect control valve body cover for damage. Install transaxle vent cap. Install control valve body cover and bolts on transaxle case assembly. See Figure .

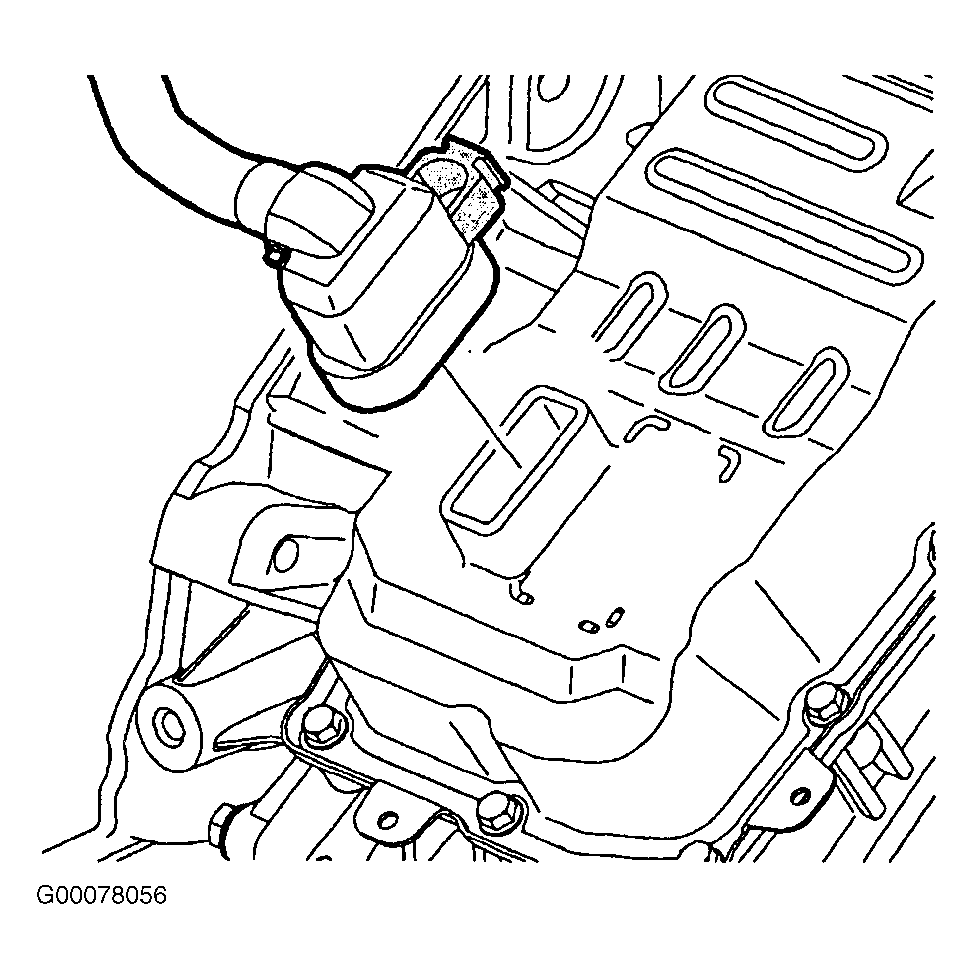

  2. Connect transaxle harness connector. See Figure . Tighten valve body cover bolts to specification in sequence shown. See Fig 1 . See TORQUE SPECIFICATIONS  . Install battery tray bracket. Position battery tray bracket and tighten screws to specification.
  3. Install battery cooling box. See BATTERY COOLING BOX  . Insert battery and tighten battery hold-down screw to specification. Connect positive battery cable to battery and tighten to specification.
  4. Connect negative battery cable to battery and tighten to specification. Install battery cooling box cover and tighten to specification.

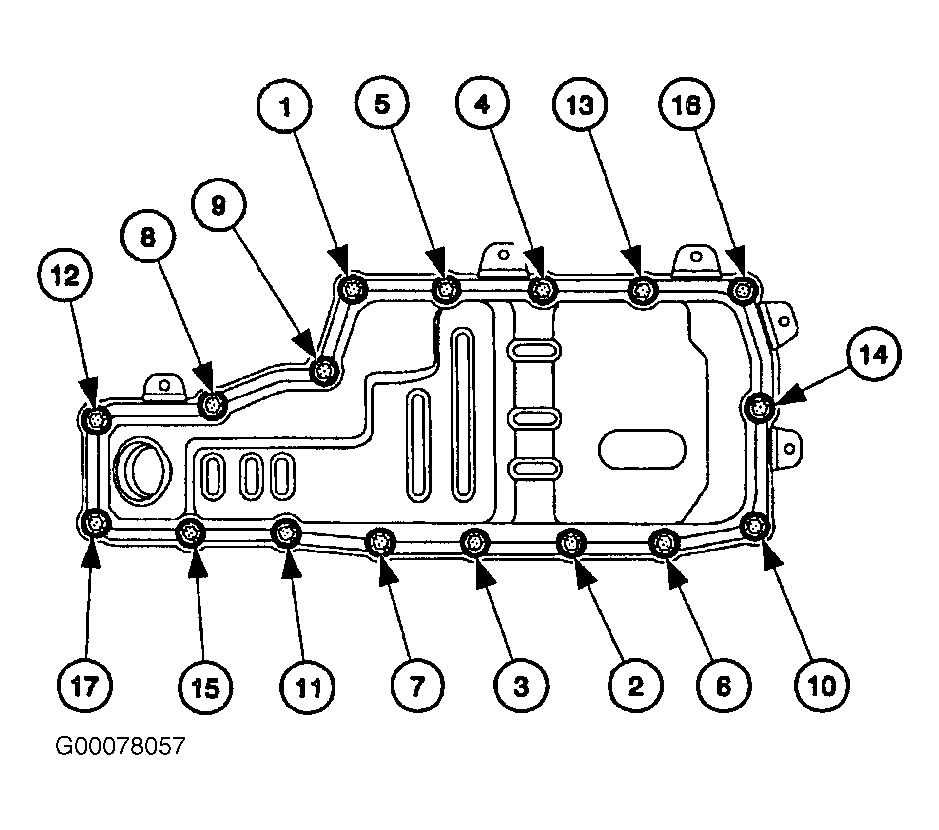

Fig 1: Valve Body Cover Torque Sequence
G00078057Courtesy of GENERAL MOTORS CORP.
