Battery Cooling Box: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Alignment of inlet and outlet ducts with battery cooling box is critical to ensure proper airflow to battery.
    CAUTION: Over-tightening battery cooling box screws will break/crack plastic.
  1. Position battery cooling box on tray so that inlet and outlet ducts are properly aligned. Install battery cooling box screws and tighten to specification. Install battery cooling box side support screw and tighten to specification. See TORQUE SPECIFICATIONS  .

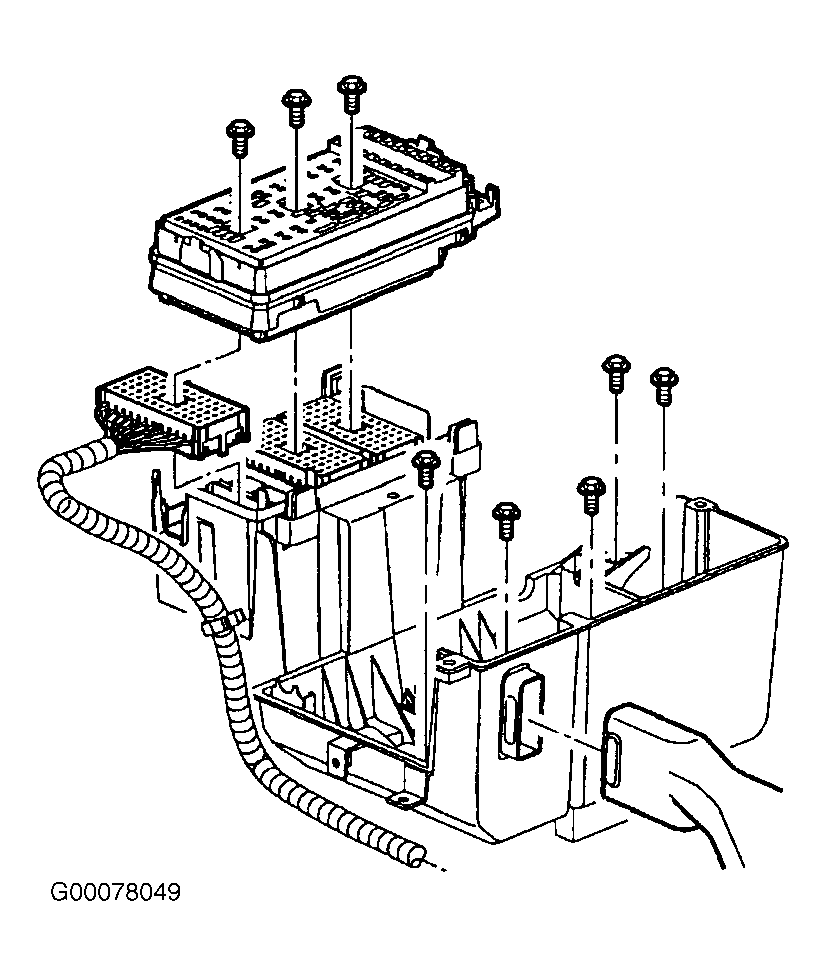

  2. Connect forward lamp harness to underhood fuse box and attach underhood fuse box into housing. See Figure . Tighten underhood fuse box connector retaining screws to specification. Secure all cables, lines and harnesses into retaining clips.
  3. Attach positive battery cable and EPS wire to positive battery terminal at underhood fuse box and tighten nut to specification. Insert battery and tighten battery hold-down screw to specification. See Figure . See TORQUE SPECIFICATIONS  . Connect positive battery cable to battery and tighten to specification.
  4. Connect negative battery cable to battery and tighten to specification. Install fuse box cover. Install battery cooling box cover and tighten screws to specification.
