Intermediate Shaft: Removal: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Drain fluid from transaxle.
NOTE: If it is necessary to drain the transaxle oil, see DRAINING & REFILLING under LUBRICATION in the appropriate SERVICING article in TRANSAXLES/TRANSMISSIONS.
Remove in order indicated in the illustration. See Fig 1 .

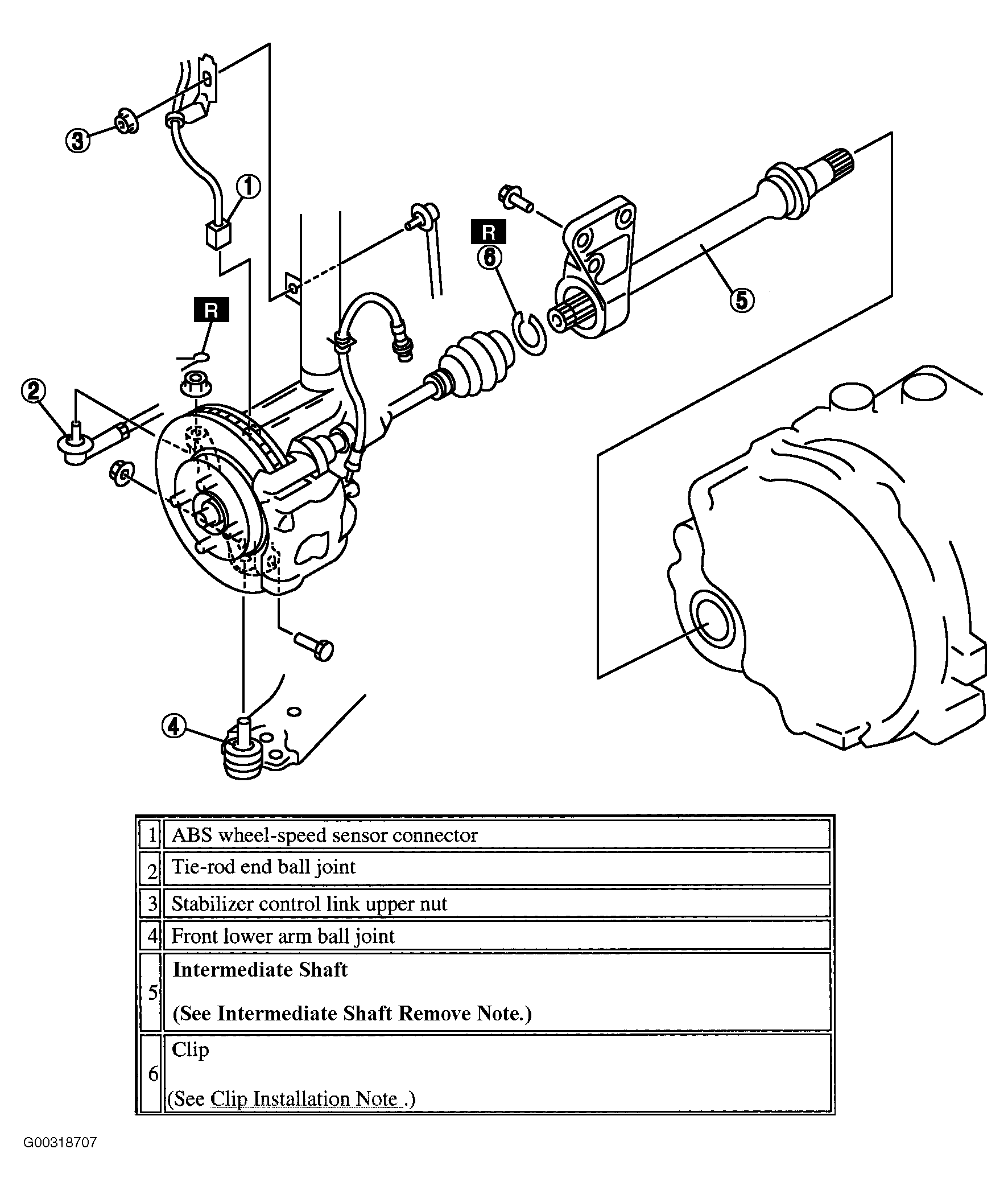

Fig 1: Exploded View Intermediate Shaft

Courtesy of MAZDA MOTORS CORP.
