Axle Shaft: Removal: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Drain the transaxle oil. See DRAINING & REFILLING under LUBRICATION in the appropriate SERVICING article in TRANSAXLES/TRANSMISSIONS.
Remove in the order indicated in the illustration. See Fig 1 .

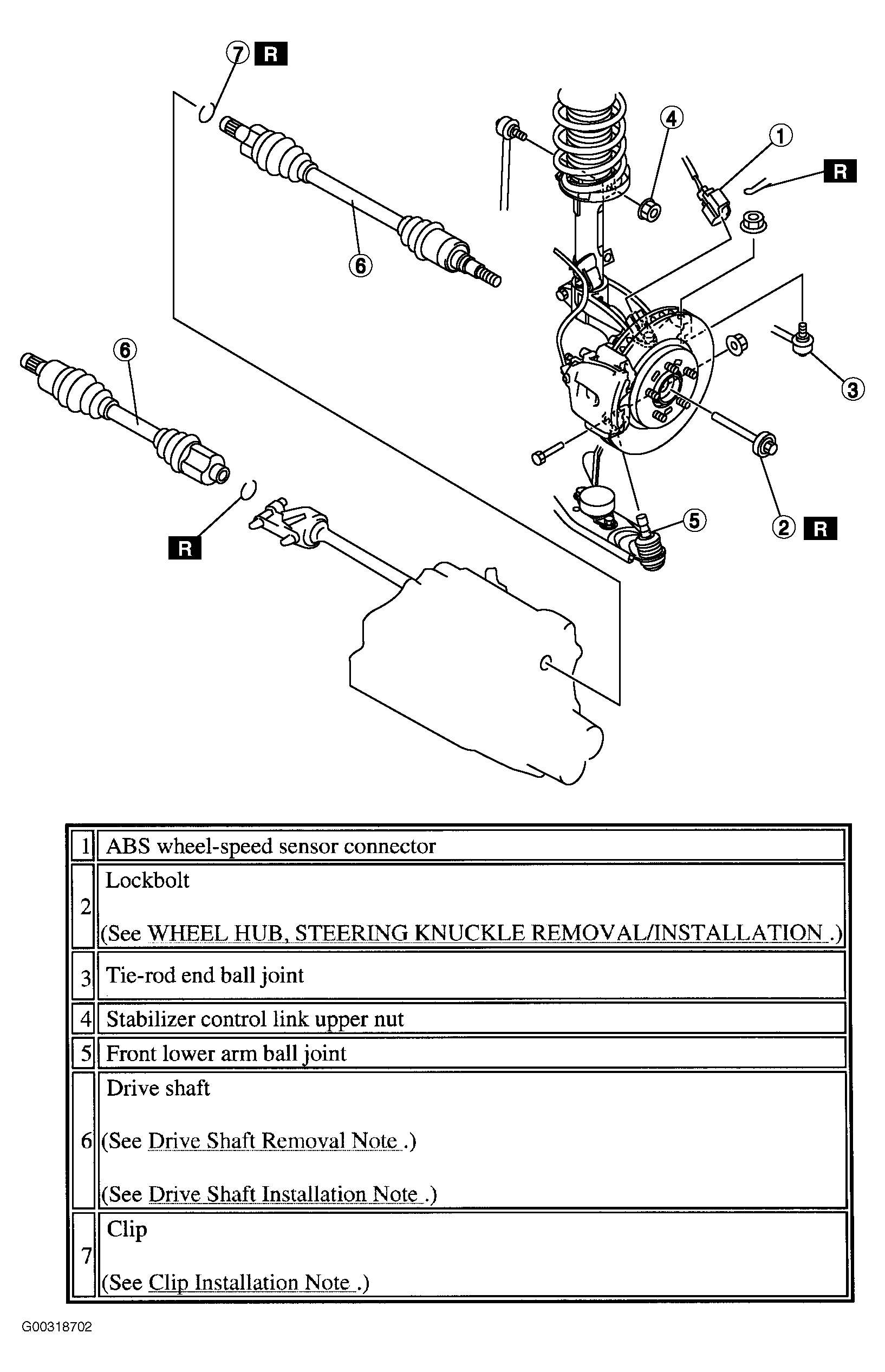

Fig 1: Exploded View Axle Shaft

Courtesy of MAZDA MOTORS CORP.
