Intermediate Shaft: Disassembly: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the illustration. See Fig 1 .

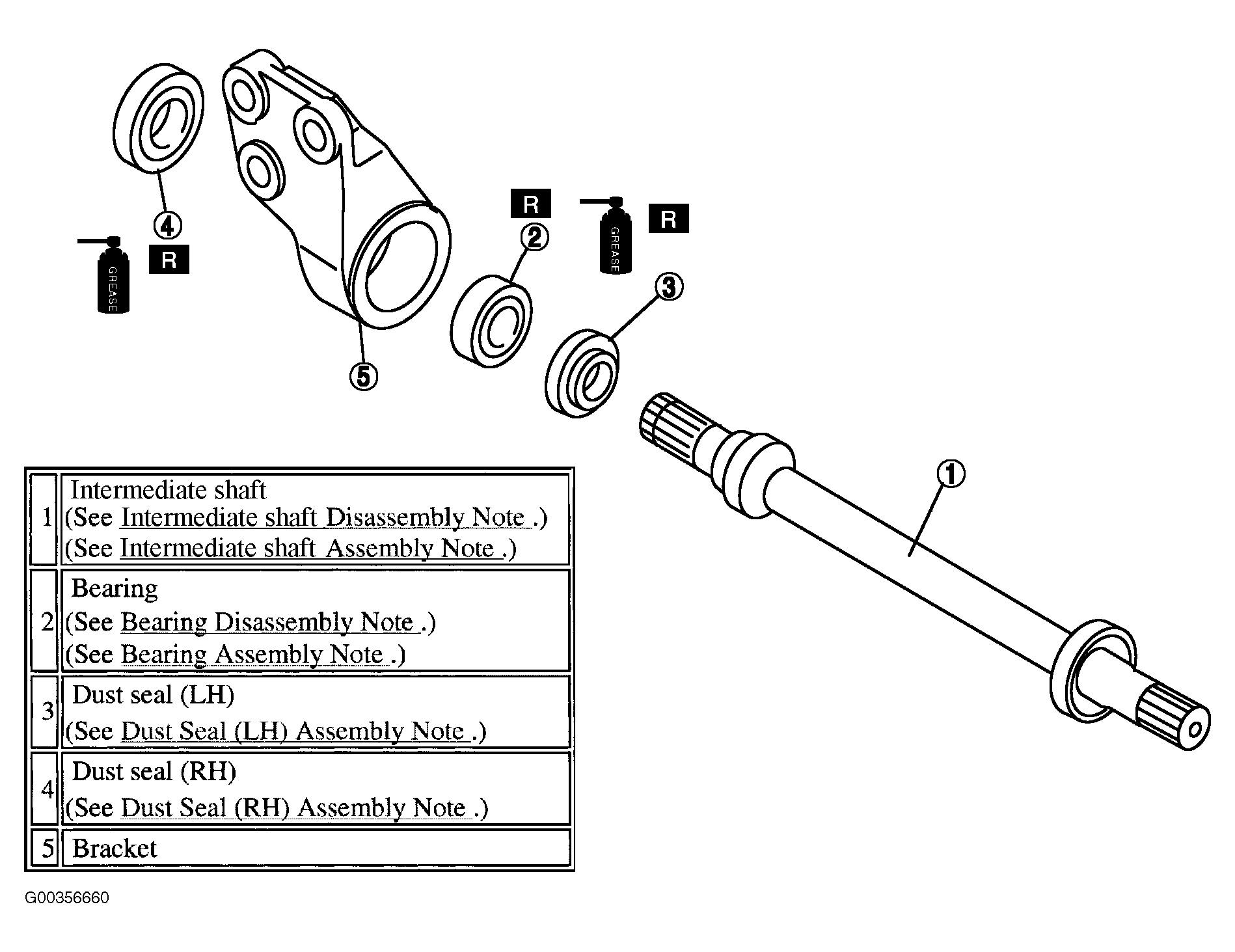

Fig 1: Exploded View Intermediate Shaft
G00356660Courtesy of MAZDA MOTORS CORP.
