Inner Ring Disassembly Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the dynamic damper to the wheel side of the axle shaft.
  2. Move the boot and cage to the wheel side of the axle shaft.
  3. Tap the inner ring using a plastic hammer while spreading the snap ring, and disassemble the inner ring from the axle shaft. See Fig 1 .

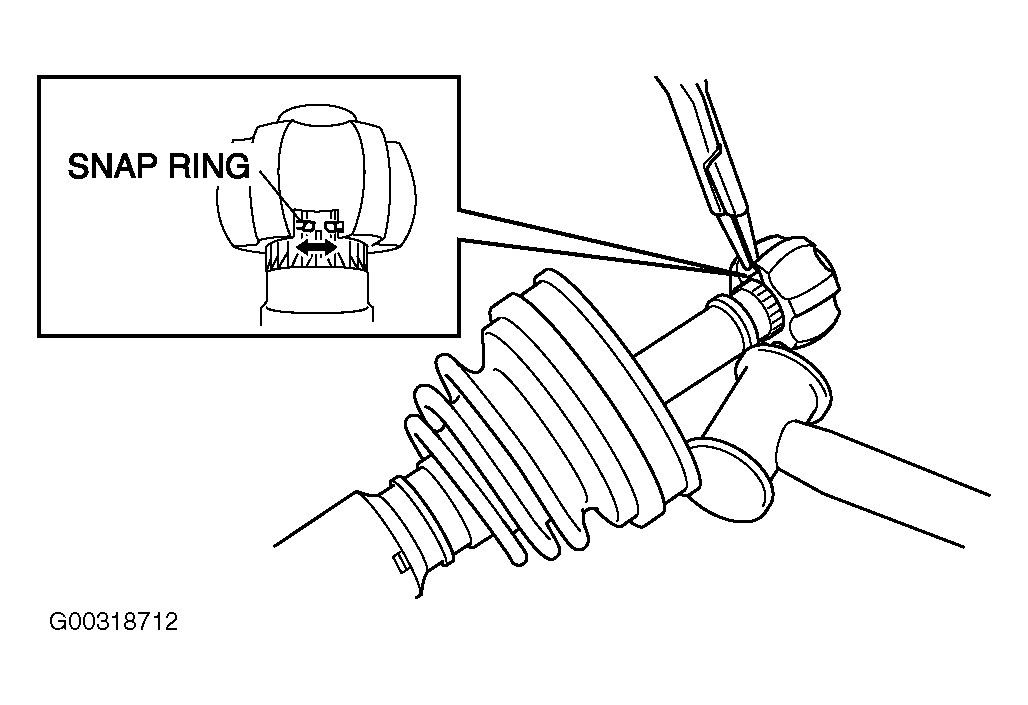

Fig 1: Disassembling Inner Ring
G00318712Courtesy of MAZDA MOTORS CORP.
