Connector Identification

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

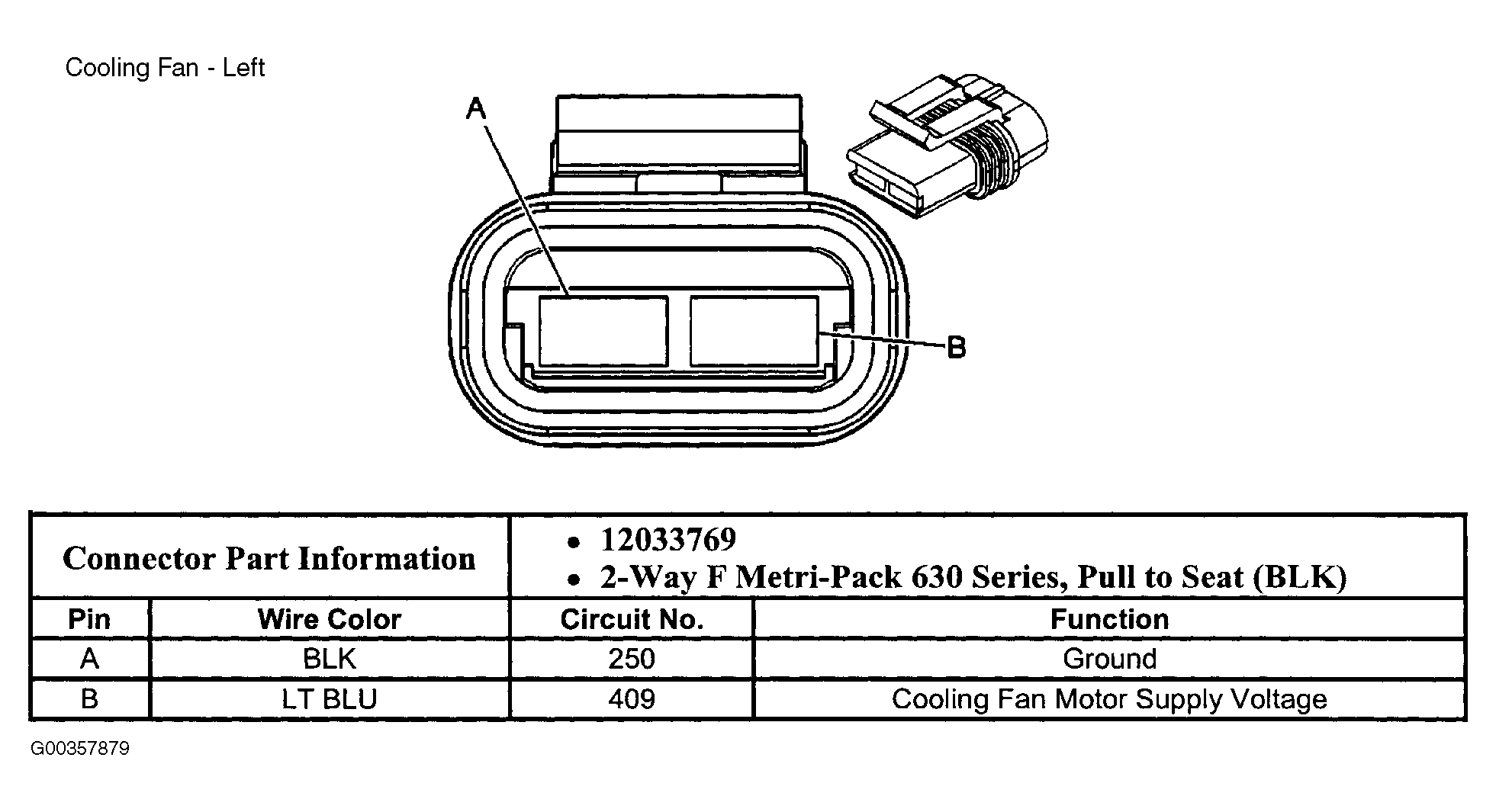

Fig 1: Identifying Left Cooling Fan Connector
G00357879Courtesy of GENERAL MOTORS CORP.

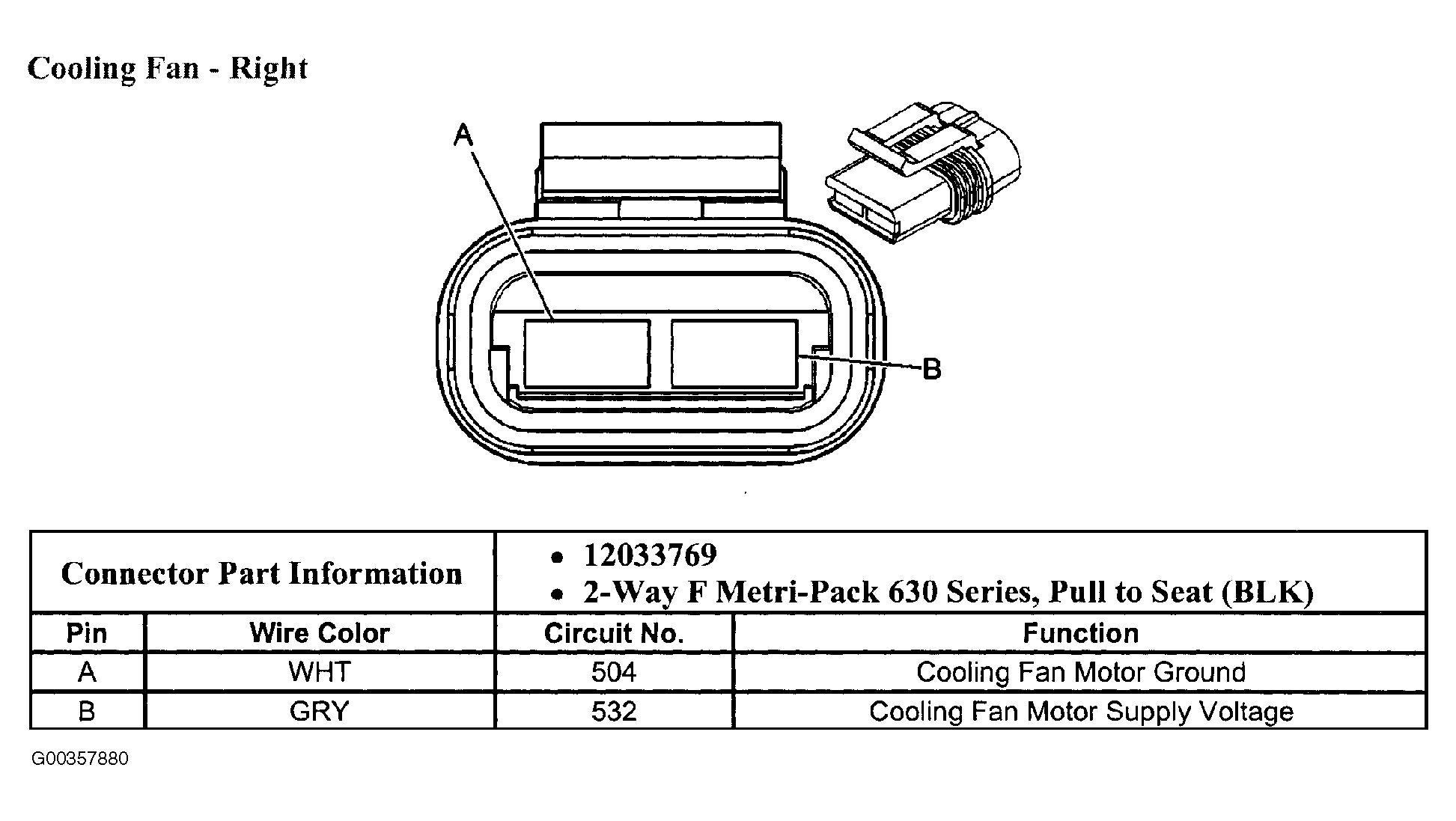

Fig 2: Identifying Right Cooling Fan Connector
G00357880Courtesy of GENERAL MOTORS CORP.
