Component Locations

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENT LOCATIONS

Component

Location

Cooling Fans ⁽¹⁾

Underhood Behind Radiator

Cooling Fan Fuses & Relays ⁽²⁾

In Bottom Underhood Fuse Block At Front Passengers Side

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 and Fig 3 .

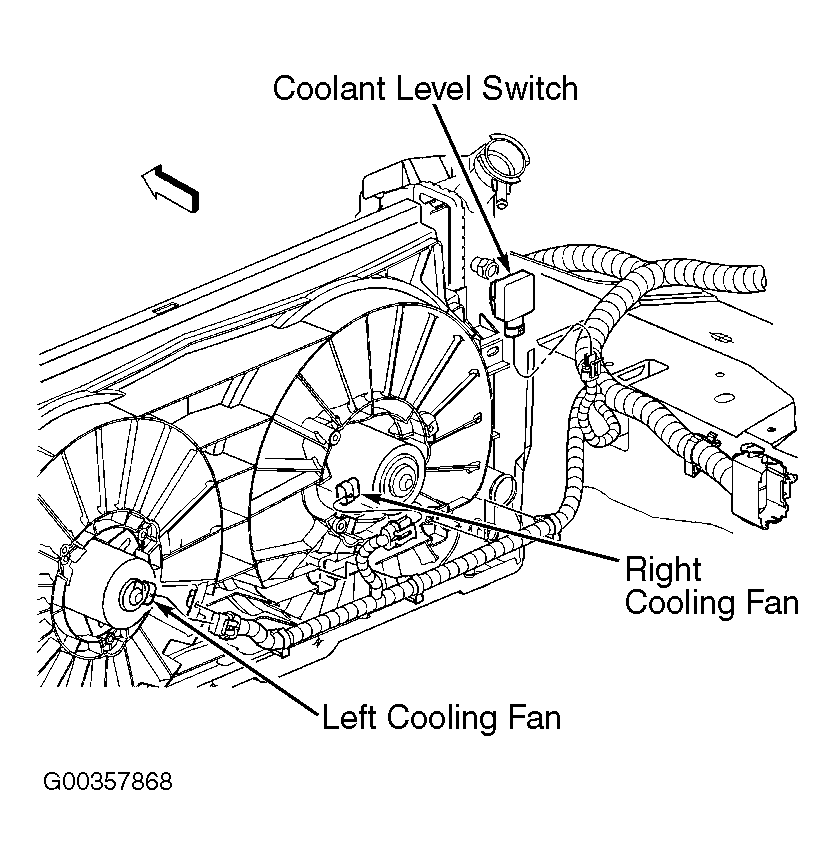

Fig 1: Locating Cooling Fans & Components

Courtesy of GENERAL MOTORS CORP.

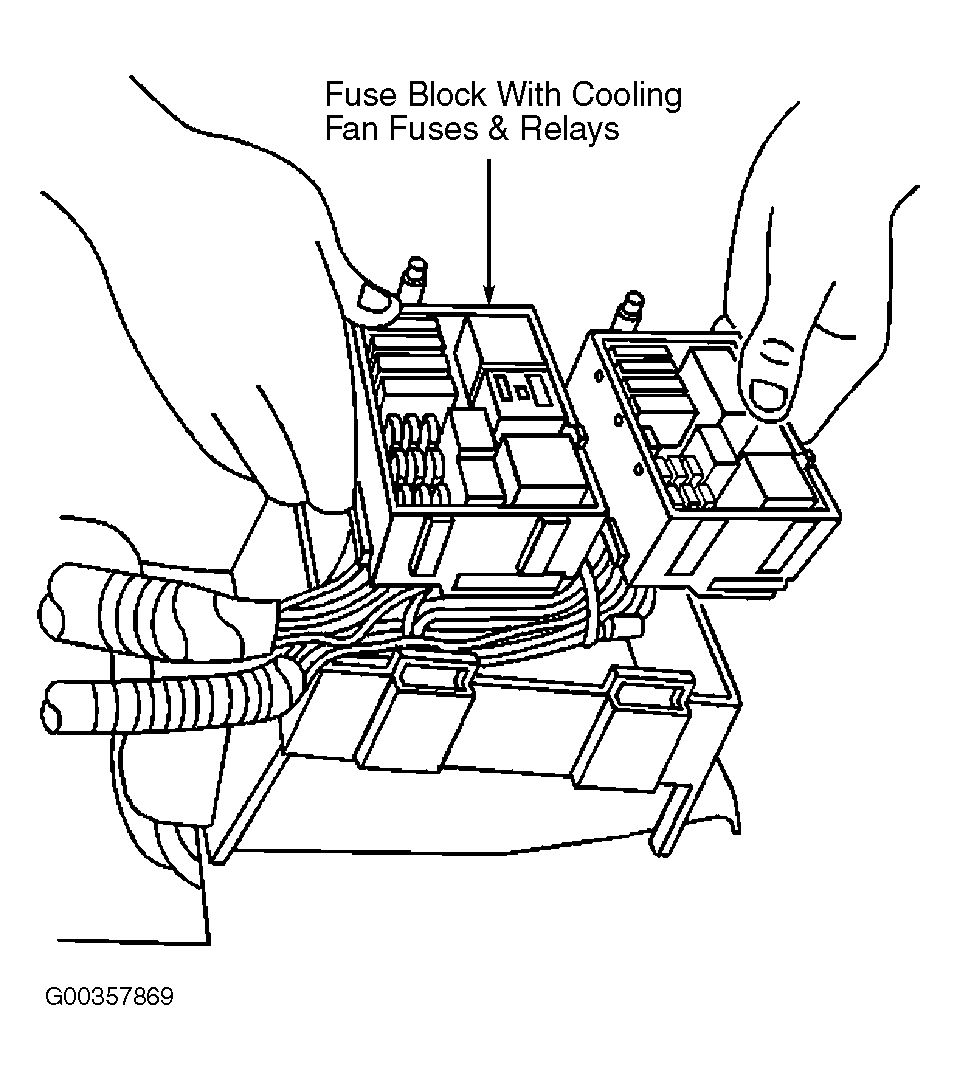

Fig 2: Locating Cooling Fan Fuses & Relays

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Cooling Fan Fuses & Relays

Courtesy of GENERAL MOTORS CORP.
