Hardware Replacement

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Remove the rear tire and wheel assembly.
  2. Remove the brake drum and shoes. See REAR BRAKE DRUM  and REAR BRAKE SHOES  under REMOVAL & INSTALLATION.

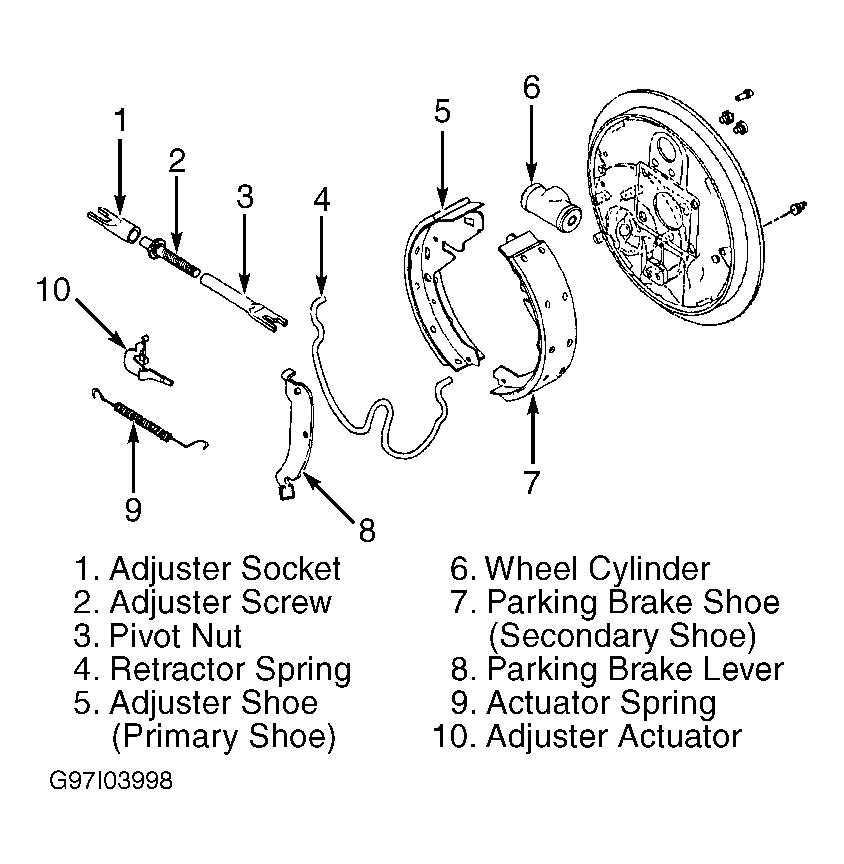

  3. Replace all necessary hardware. See Figure .
