Engine Compartment Fuse/Relay Center
WARNING: This page is about a different car, the 2004 Pontiac Vibe and 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

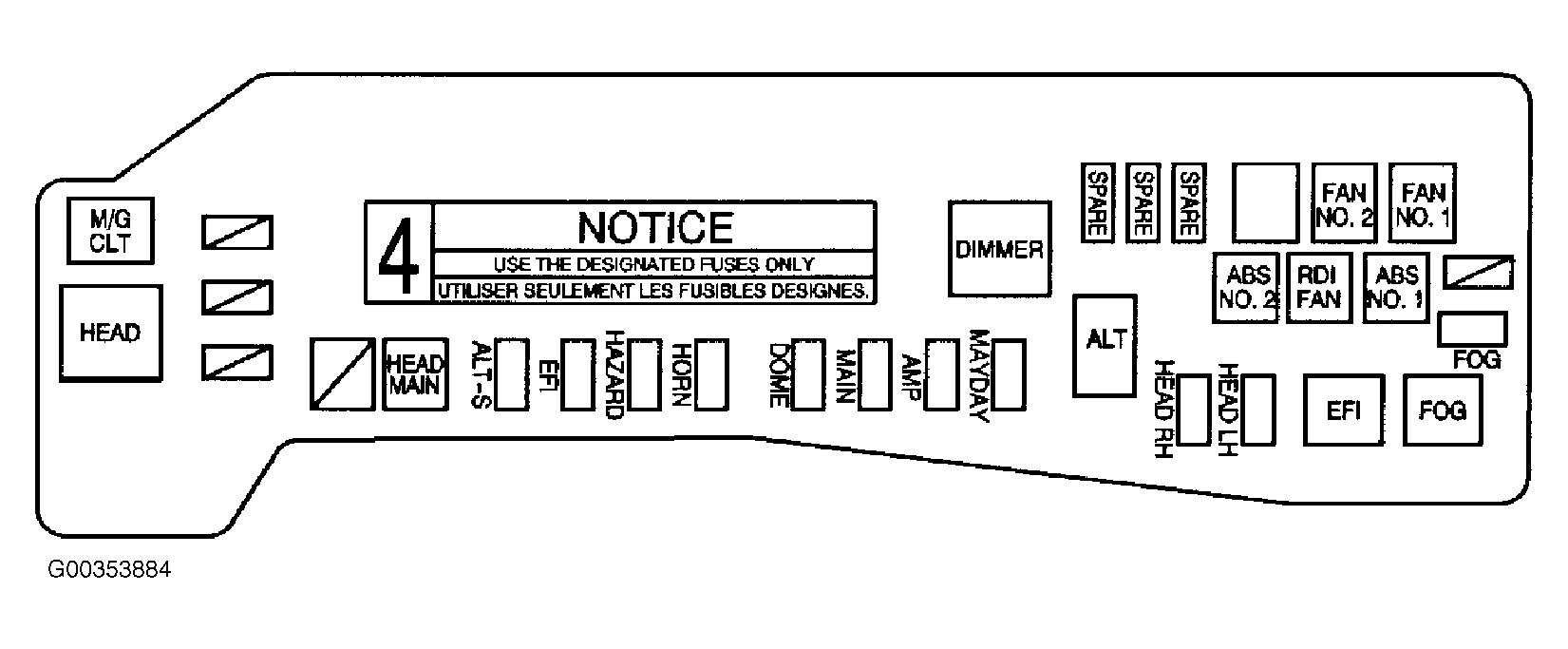

Engine compartment fuse/relay center is located on the driver's side of the vehicle near the air cleaner.
ENGINE COMPARTMENT FUSE BLOCK CIRCUIT IDENTIFICATION (1 OF 2)
| Fuses | Usage |
|---|---|
| HEAD MAIN | Right Headlamp, Left Headlamp Fuses |
| ALT-S | Charging System |
| EFI | Electronic Fuel Injection System |
| HAZARD | Turn Signal Lamps, Emergency Flasher |
| HORN | Horn |
| DOME | Interior Lights, Gauges and Meters, Audio System, Remote Keyless Entry System |
| MAIN | Starter System, AM2 Fuse |
| AMP | Audio Amplifiers |
| MAYDAY | Not Used |
| SPARE | Spare Fuse |
| SPARE | Spare Fuse |
| SPARE | Spare Fuse |
| ABS NO. 2 | Anti-lock Brake System |
| RDI FAN | Electronic Cooling Fan System |
| ABS NO. 1 | Anti-lock Brake System |
| ALT | Charging System, DEFOG, HEATER, GAUGE, ECU-IG, WIPER, RR WIP, WASHER, ABS NO. 1, ABS NO. 2, RDI FAN, FOG, GAUGE, INV, AM1 Fuses |
| HEAD RH | Right-hand Headlamp |
| HEAD LH | Left-hand Headlamp |
| FOG | Front Fog Lamps |
ENGINE COMPARTMENT FUSE BLOCK CIRCUIT IDENTIFICATION (2 OF 2)
| Relays | Usage |
|---|---|
| DIMMER | Headlamp Dimmer Relay |
| FAN NO. 2 | Cooling Fan System Relay |
| FAN NO. 1 | Cooling Fan System Relay |
| EFI | Electronic Fuel Injection System Relay |
