Fusible Link

WARNING: This page is about a different car, the 2004 Chevrolet Impala, 2003 Chevrolet Impala, and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Fusible links are usually located between battery and starter or electrical center. For description and repair procedures, see Fig 1.

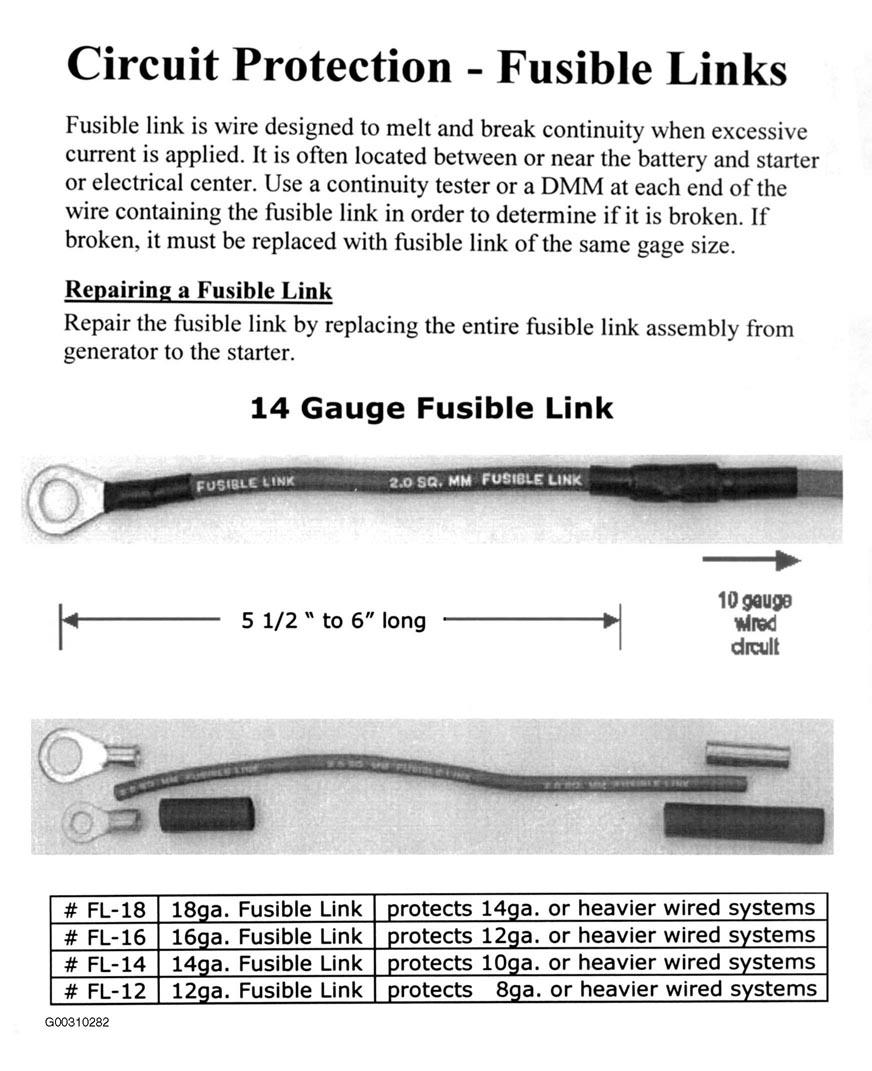

Fig 1: Repairing Fusible Links
G00310282Courtesy of GENERAL MOTORS CORP.
