Top UNDERHOOD Compartment Fuse Block
WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo, 2003 Chevrolet Monte Carlo, and 2002 Chevrolet Monte Carlo. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

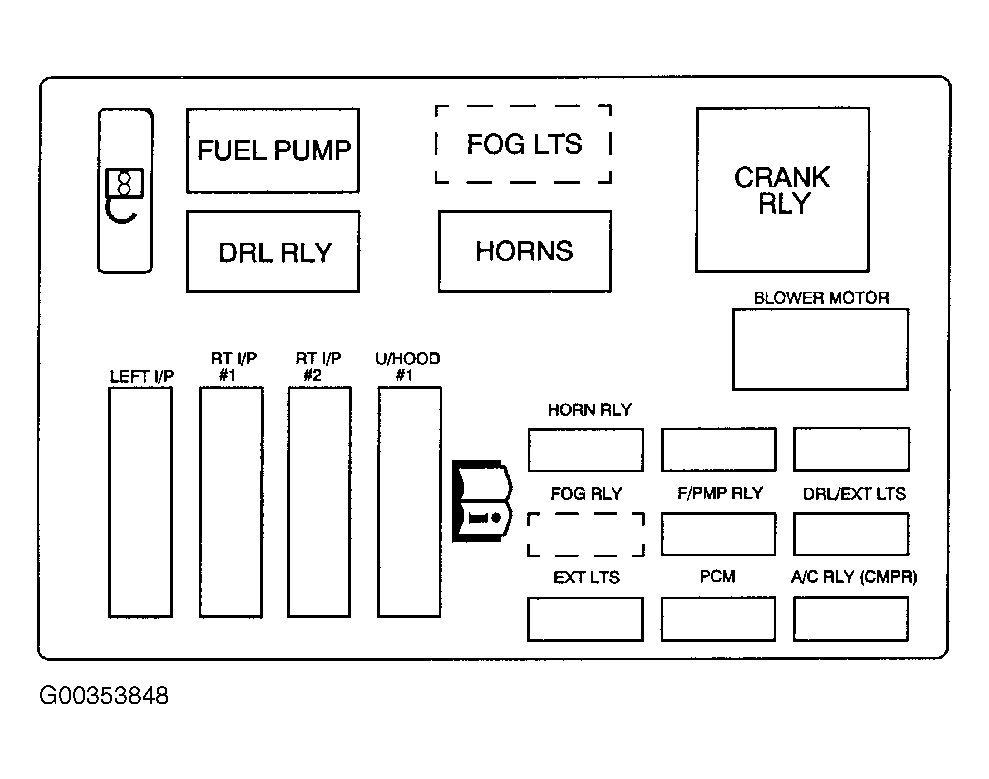

Top underhood compartment fuse box is located on passenger's side of engine compartment. See Fig 1.
TOP UNDERHOOD COMPARTMENT FUSE BLOCK CIRCUIT IDENTIFICATION (2002-03) (1 OF 2)
| Relays | Usage |
|---|---|
| FUEL PUMP RELAY | Fuel Pump |
| DRL RELAY | Daytime Running Lamps |
| A.I.R. RELAY | Air Induction Reaction Relay |
| CRANK RELAY | Starter (Crank) Relay |
| HORNS RELAY | Horn |
| FOG LTS RELAY | Fog Lamps |
TOP UNDERHOOD COMPARTMENT FUSE BLOCK CIRCUIT IDENTIFICATION (2002-03) (2 OF 2)
| Fuses | Usage |
|---|---|
| LEFT I/P | Left Fuse (Battery) |
| RT I/P #1 | Right Fuse (Battery) |
| RT I/P #2 | Right Fuse (Battery) |
| U/HOOD #1 | Underhood (Top) Fuse Block |
| HORN RLY | Horn Relay |
| BLANK | Blank |
| BLANK | Blank |
| FOG RLY | Fog Lamps Relay |
| F/PMP RLY | Fuel Pump Relay |
| DRL/EXIT LTS | Low (Left Front) & High (Left Front) Headlamps |
| EXT LTS | Low (Right Front) & High (Right Front) Headlamps |
| PCM | PCM Battery |
| A/C | HVAC Compressor |
| RLY (CMPR) | Relay & Generator |
TOP UNDERHOOD COMPARTMENT FUSE BLOCK CIRCUIT IDENTIFICATION (2004) (1 OF 2)
| Relays | Usage |
|---|---|
| FUEL PUMP RELAY | Fuel Pump |
| DRL RELAY | Daytime Running Lamps |
| CRANK RELAY | Starter (Crank) Relay |
| HORNS RELAY | Horn |
| FOG LTS RELAY | Fog Lamps |
TOP UNDERHOOD COMPARTMENT FUSE BLOCK CIRCUIT IDENTIFICATION (2004) (2 OF 2)
| Fuses | Usage |
|---|---|
| LEFT I/P | Left Fuse Block |
| RT I/P #1 | Right Fuse Block (Battery) |
| RT I/P #2 | Right Fuse Block (Battery) |
| U/HOOD #1 | Underhood (Top) Fuse Block |
| HORN RLY | Horn Relay |
| BLANK | Blank |
| BLANK | Blank |
| FOG RLY | Fog Lamps Relay |
| F/PMP RLY | Fuel Pump Relay |
| DRL/EXIT LTS | Low (Left Front) & High (Left Front) Headlamps |
| EXT LTS | Low (Right Front) & High (Right Front) Headlamps |
| PCM | PCM Battery |
| A/C RLY (COMP) | HVAC Compressor Relay & Generator |
| BLOWER MOTOR | HVAC Blower Motor |
