Left Instrument Panel Fuse Block
WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo, 2003 Chevrolet Monte Carlo, and 2002 Chevrolet Monte Carlo. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

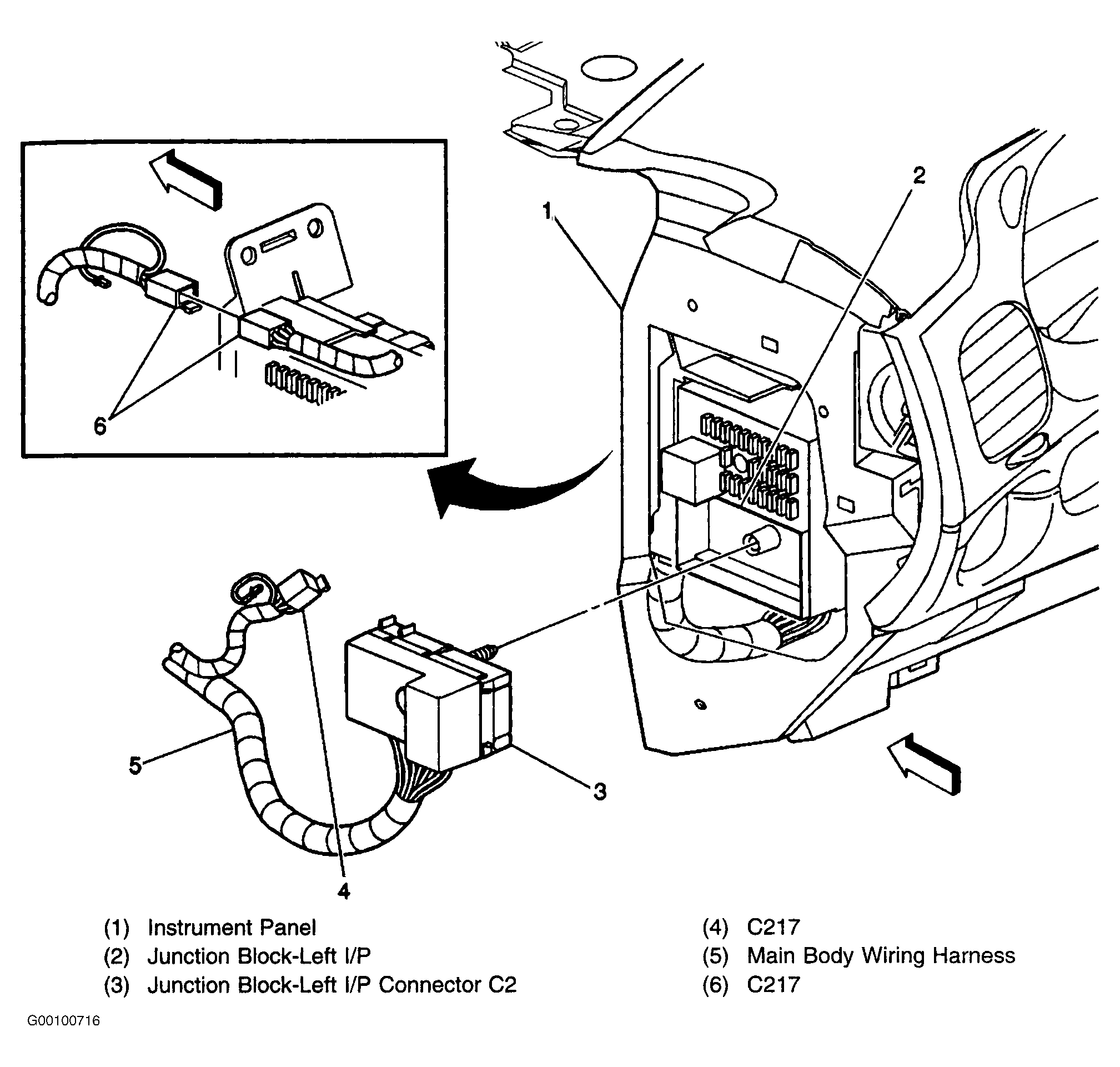

Left instrument panel fuse block is located of driver's side end of instrument panel. See Fig 1.

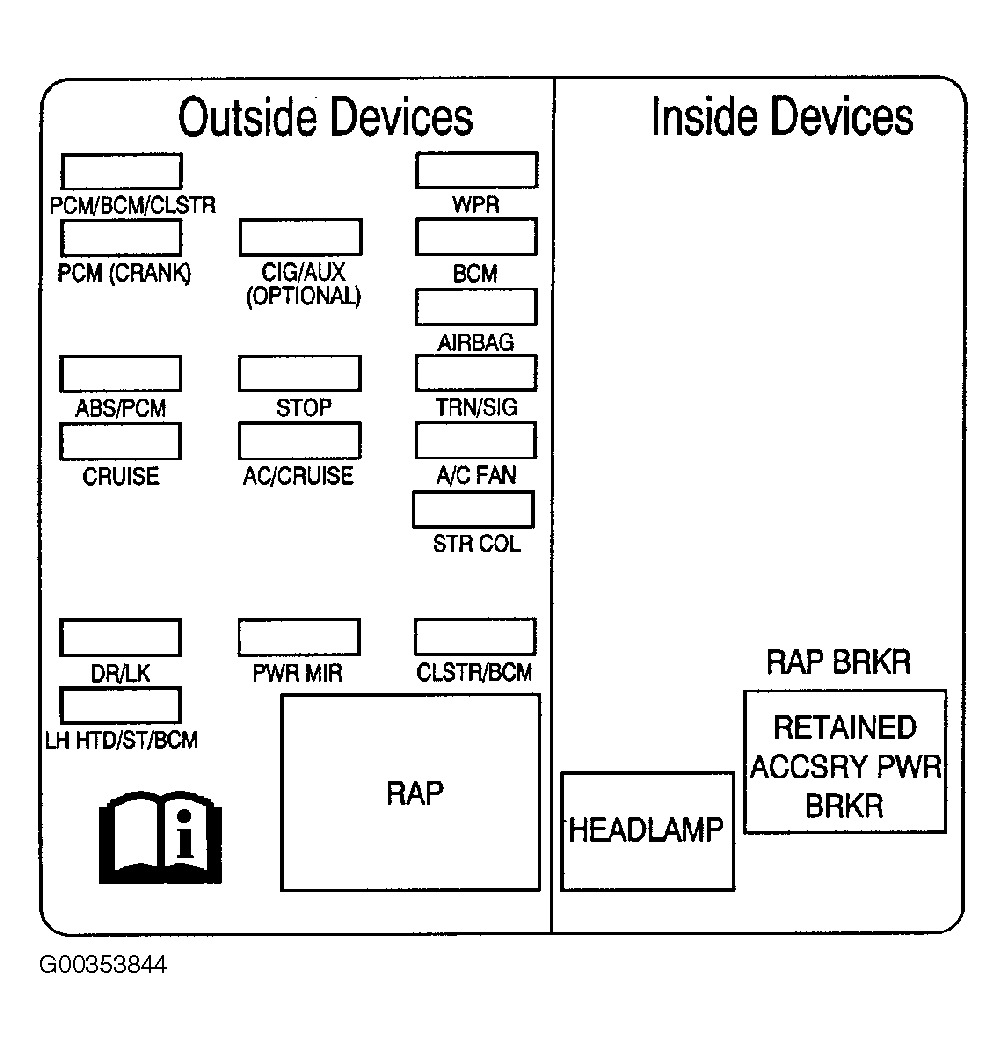

LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2002-03) (1 OF 3)
| Fuses | Usage |
|---|---|
| PCM/BCM/CLSTR | Powertrain Control Module, Body Control Module, Cluster (Ignition 0) |
| WSW | Windshield Wipers, Windshield Washer |
| PCM (CRANK) | Powertrain Control Module (Crank) |
| CIG/AUX | Accommodated Device (Accessory) |
| BCM | Body Control Module (Accessory) |
| SRS | Supplemental Restraint System |
| ABS/PCM | Anti-Lock Brake System, Powertrain Control Module, Brake Switch, Crank Relay, Canister Vent Solenoid (Run, Crank) |
| STOP | Brake Lamps, Body Control Module (Run, Crank) |
| TURN SIGNAL | Turn Signal Flashers |
| CRUISE | Cruise Control Steering Column Controls |
| AC/CRUISE | HVAC Temp Door Motors & Module, Cruise Control Module |
| A/CFAN | HVAC Blower |
| STR COL | Steering Wheel Lighting |
| DRLK | Body Control Module, Door Lock Controls |
| PWR MIR | Power Mirrors |
| CLSTR/BCM | Cluster, Body Control Module, Data Link Connector (Battery) |
| LH HTD ST/BCM | Driver's Heated Seat, Body Control Module, Battery controlled Loads |
LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2002-03) (2 OF 3)
| Circuit Breakers | Usage |
|---|---|
| RETAINED ACCESSORY PWR BRKR | Power Windows, Sunroof Breaker |
LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2002-03) (3 OF 3)
| Relays | Usage |
|---|---|
| RETAINED ACCESSORY PWR RELAY | Retained Accessory Power Relay |
| HEADLAMP RELAY | Headlamp Relay |
LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2004) (1 OF 3)
| Fuses | Usage |
|---|---|
| PCM/BCM/CLSTR | Powertrain Control Module, Body Control Module, Cluster (Ignition 0) |
| WSW | Windshield Wipers, Windshield Washer |
| PCM (CRANK) | Powertrain Control Module (Crank) |
| CIG/AUX | Accommodated Device (Accessory) |
| BCM | Body Control Module (Accessory) |
| AIR BAG | Supplemental Restraint System |
| ABS/PCM | Anti-Lock Brake System, Powertrain Control Module, Brake Switch, Crank Relay, Canister Vent Solenoid (Run, Crank) |
| STOP | Brake Lamps, Body Control Module (Run, Crank) |
| TURN SIGNAL | Turn Signal Flashers |
| CRUISE | Cruise Control Steering Column Controls |
| AC/CRUISE | HVAC Temp Door Motors & Module, Cruise Control Module |
| A/C FAN | HVAC Blower |
| STR COL | Steering Wheel Lighting |
| DRLK | Body Control Module, Door Lock Controls |
| PWR MIR | Power Mirrors |
| CLSTR/BCM | Cluster, Body Control Module, Data Link Connector (Battery) |
| LH HTD ST/BCM | Driver's Heated Seat, Body Control Module, Battery controlled Loads |
LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2004) (2 OF 3)
| Circuit Breakers | Usage |
|---|---|
| RETAINED ACCESSORY PWR BRKR | Power Windows, Sunroof Breaker |
LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2004) (3 OF 3)
| Relays | Usage |
|---|---|
| RETAINED ACCESSORY PWR RELAY | Retained Accessory Power Relay |
| HEADLAMP RELAY | Headlamp Relay |
