Instrument Panel Fuse Block (2004)
WARNING: This page is about a different car, the 2004 Buick Regal, 2004 Buick Century, 2003 Buick Regal, and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

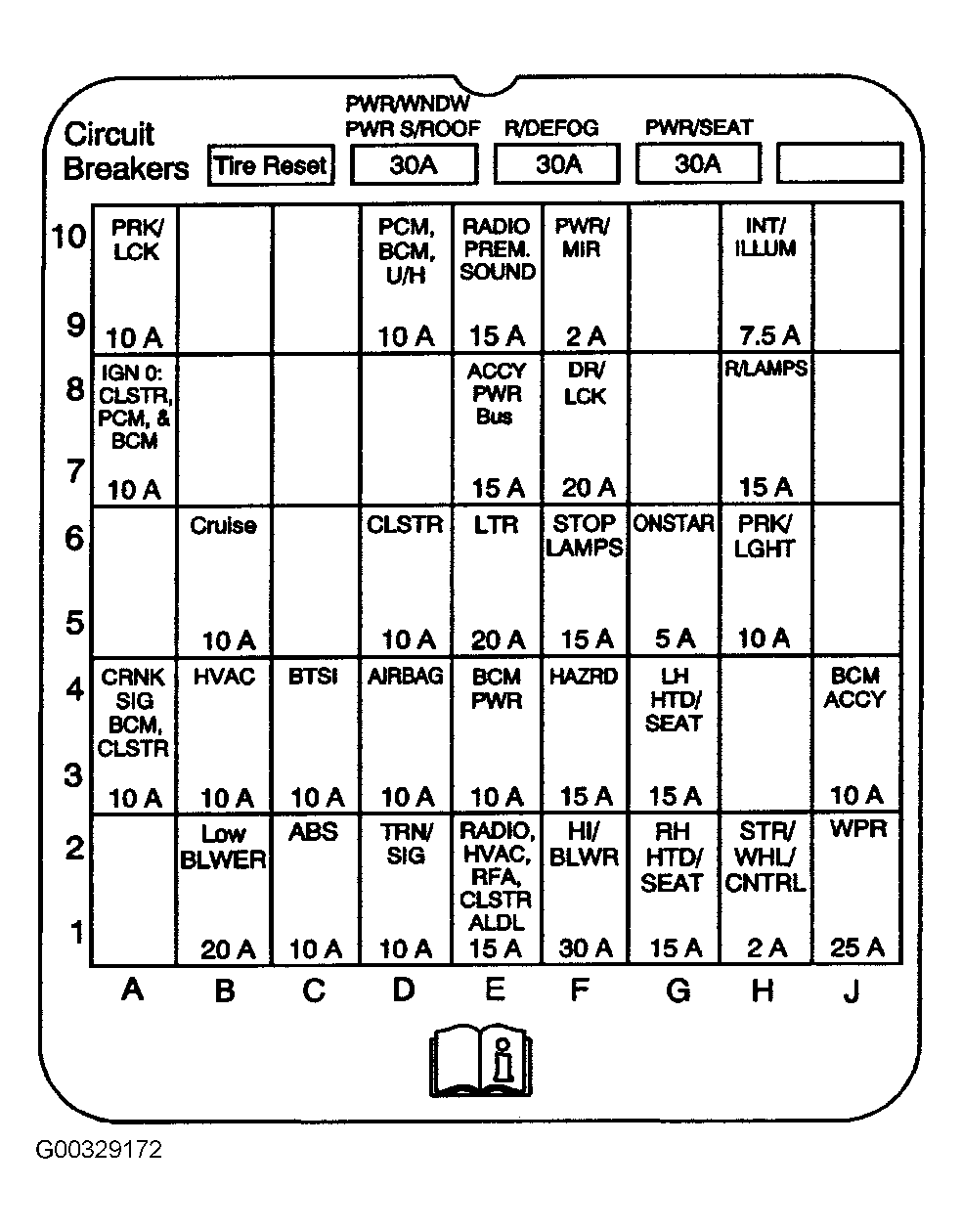

Instrument panel fuse block is located under passenger's side of instrument panel. See Figure.
INSTRUMENT PANEL FUSE BOX LEGEND (2004)
| Fuse/Circuit Breaker | Rating | Description |
|---|---|---|
| ABS | 10 AMP | (Electronic Brake Control Module (EBCM) (JL9/JM4) |
| ACCY PWR BUS | 15 AMP | Body Control Module (BCM) and Retained Accessory Power l(RAP) Relay (KP2) |
| AIRBAG | 10 AMP | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| BCM ACCY | 10 AMP | Body Control Module (BCM) |
| BCM PWR | 10 AMP | Body Control Module (BCM) |
| BTSI | 10 AMP | Stop Lamp Switch (Century), A/T Shift Lock Control Switch (Regal), and Brake To Shift Relay |
| CLSTR | 10 AMP | Instrument Cluster |
| CRNK SIG, BCM, CLSTR | 10 AMP | Instrument Cluster, Body Control Module (BCM) and Powertrain Control Module (PCM) |
| CRUISE | 10 AMP | Cruise Control Switch (K34), Cruise Control Module (K34), and Cruise Control Release Switch |
| DR/LCK | 20 AMP | Rear Compartment Lid Release Relay and Body Control Module (BCM) |
| HAZRD | 15 AMP | Turn Signal Switch i |
| HI/BLWR | 30 AMP | Blower Motor Resistor Assembly (CJ3) and Blower Motor Control Processor (CJ2) |
| HVAC | 10 AMP | Vacuum Control Assembly (CJ2), Rear Window Defogger Relay, LH and RH Air Temperature Actuators, HVAC Control Module, Inside Rearview Mirror (C79), Driver and Passenger Heated Seat Switches (KA1) |
| IGN 0: CLSTR, PCM & BCM | 10 AMP | Powertrain Control Module (PCM), Body Control Module (BCM) and Instrument Cluster |
| INT/ILLUM | 7.5 AMP | Radio, Headlamp Switch, Instrument Cluster and HVAC Control Module (CJ3) |
| LH HTD/SEAT | 15 AMP | Driver Seat Heater Control Module (KA1) |
| LOW BLWER | 20 AMP | HVAC Control Module (CJ3) |
| LTR | 20 AMP | Cigar Lighter and Auxiliary Power Outlet (Regal) |
| ONSTAR | 5 AMP | Vehicle Communications Interface Module (VCIM) |
| PCM, BCM, U/H | 10 AMP | CRANK and IGN MAIN Relays, Body Control Module (BCM) and Powertrain Control Module (PCM) |
| PRK/LCK | 10 AMP | Automatic Transmission Control (BTSI) |
| PRK/LGHT | 10 AMP | LH and RH Headlamps |
| PWR/MIR | 2 AMP | Outside Rearview Mirror Switch |
| PWR/SEAT Circuit Breaker | 30 AMP | Seat Adjuster Switch-Driver (AG1) and Seat Adjuster Switch-Passenger (AG2) |
| PWR/WNDW PWR S/ROOF Circuit Breaker | 30 AMP | Window Master Switch-Driver and Sunroof Module (Express Open) (CF5) |
| RADIO, HVAC, RFA, CLSTR ALDL | 15 AMP | HVAC Control Module, Radio, Data Link Connector (DLC), Remote Control Door Lock Receiver (RCDLR) and Instrument Cluster |
| RADIO PREM. SOUND | 15 AMP | Low Frequency Audio Amplifier (U85) |
| R/DEFOG Circuit Breaker | 30 AMP | Rear Window Defogger Relay |
| RH HTD/SEAT | 15 AMP | Passenger Heated Seat Control Module (Regal) |
| R/LAMPS | 15 AMP | INT/ILLUM Fuse, Radio, Headlamp Switch, Instrument Panel Cluster (IPC), HVAC Control Module (CJ3), LR and RR Marker Lamps, Left and Right Tail/Stop and Turn Signal Lamps, Left and Right Tail Lamps, Left and Right License Lamps |
| STOP LAMPS | 15 AMP | Stop Lamps Switch |
| STR/WHL/CNTRL | 2 AMP | Inflatable Restraint Steering Wheel Module Coil, Left and Right Steering Wheel Controls (UK3) |
| TRN/SIG | 10 AMP | Turn Signal/Hazard Flasher Module |
| WPR | 25 AMP | Windshield Wiper Motor and Turn Signal/Multifunction Switch |
