Power Steering Pump Disassembled View (CB Series)
WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

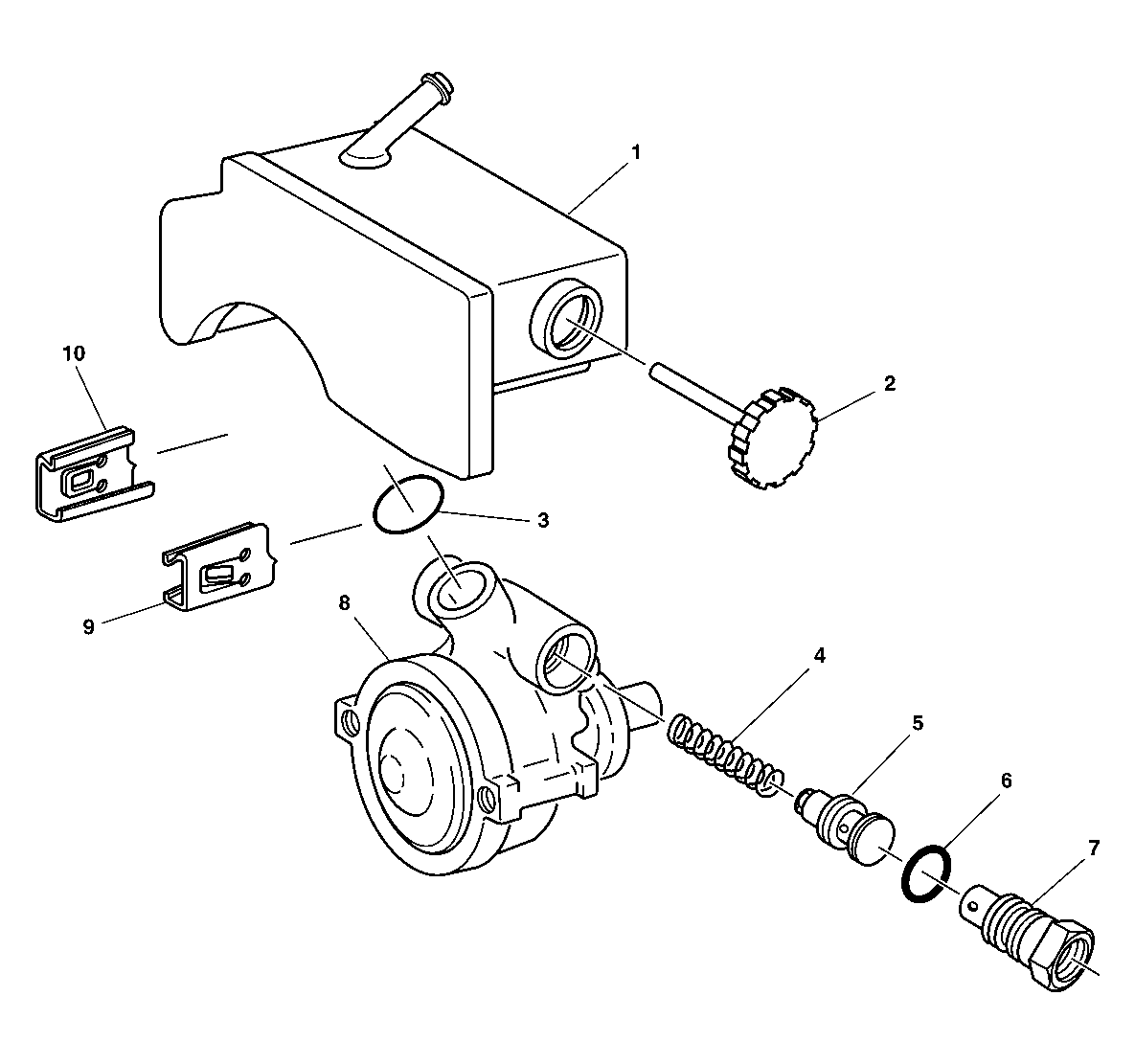

| Callout |
Component Name |
| 1 |
Hydraulic Pump Reservoir |
| 2 |
Reservoir Capstick Assembly |
| 3 |
O-Ring Seal |
| 4 |
Flow Control Spring |
| 5 |
Control Valve Assembly |
| 6 |
O-Ring Seal |
| 7 |
Connector and Fitting Assembly |
| 8 |
Hydraulic Pump Housing Assembly |
| 9 |
Reservoir Retaining Clip (RH) |
| 10 |
Reservoir Retaining Clip (LH) |
