Left (Driver's Side)
WARNING: This page is about a different car, the 2003 Chevrolet Malibu and 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Left instrument panel junction block is located at the driver's side end of the instrument panel. To access fuses, open the fuse panel door by pulling on it.

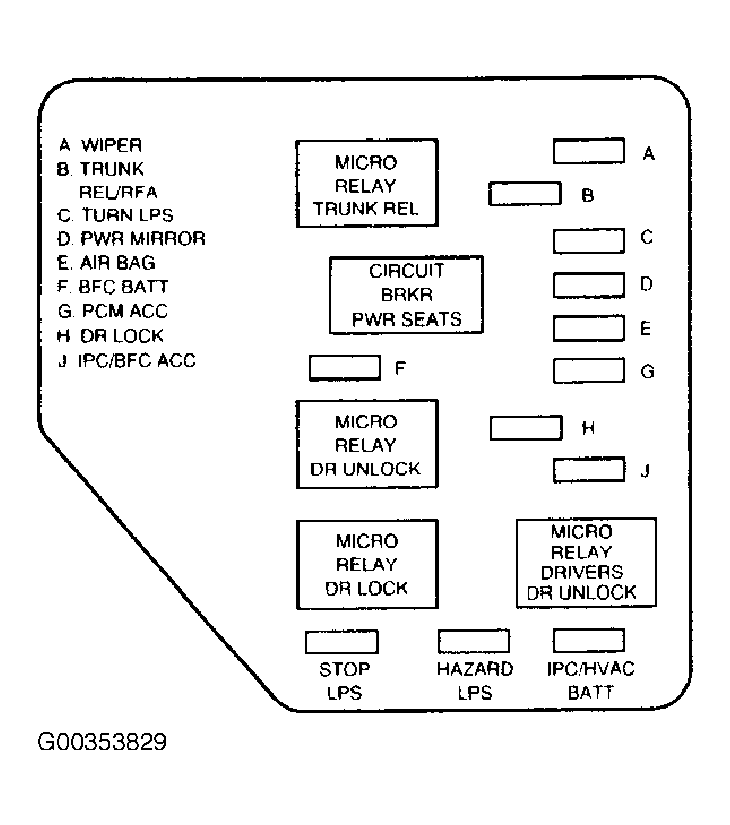

DRIVER'S SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION
| Fuse | Usage |
|---|---|
| A | Wipers |
| B | Trunk Release and Remote Keyless Entry |
| C | Turn Signals |
| D | Power Mirrors |
| E | Air Bag |
| F | Body Function Control Module |
| G | Powertrain Control Module (PCM) |
| H | Door Locks |
| J | Body Function Control Module/Instrument Panel Cluster |
| MICRO RELAY TRUNK RELAY | Remote Trunk Release |
| CIRCUIT BRKR PWR SEATS | Power Seats |
| MICRO RELAY DR UNLOCK RELAY | Door Locks |
| MICRO RELAY DR LOCK RELAY | Door Locks |
| MICRO RELAY DRIVERS DR UNLOCK RELAY | Door Locks |
| STOP LPS | Stoplamps |
| HAZARD LPS | Hazard Lamps |
| IPC/HVAC BATT | Cluster, Climate Control |
