Instrument Panel Relay Block
WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, and 2004 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

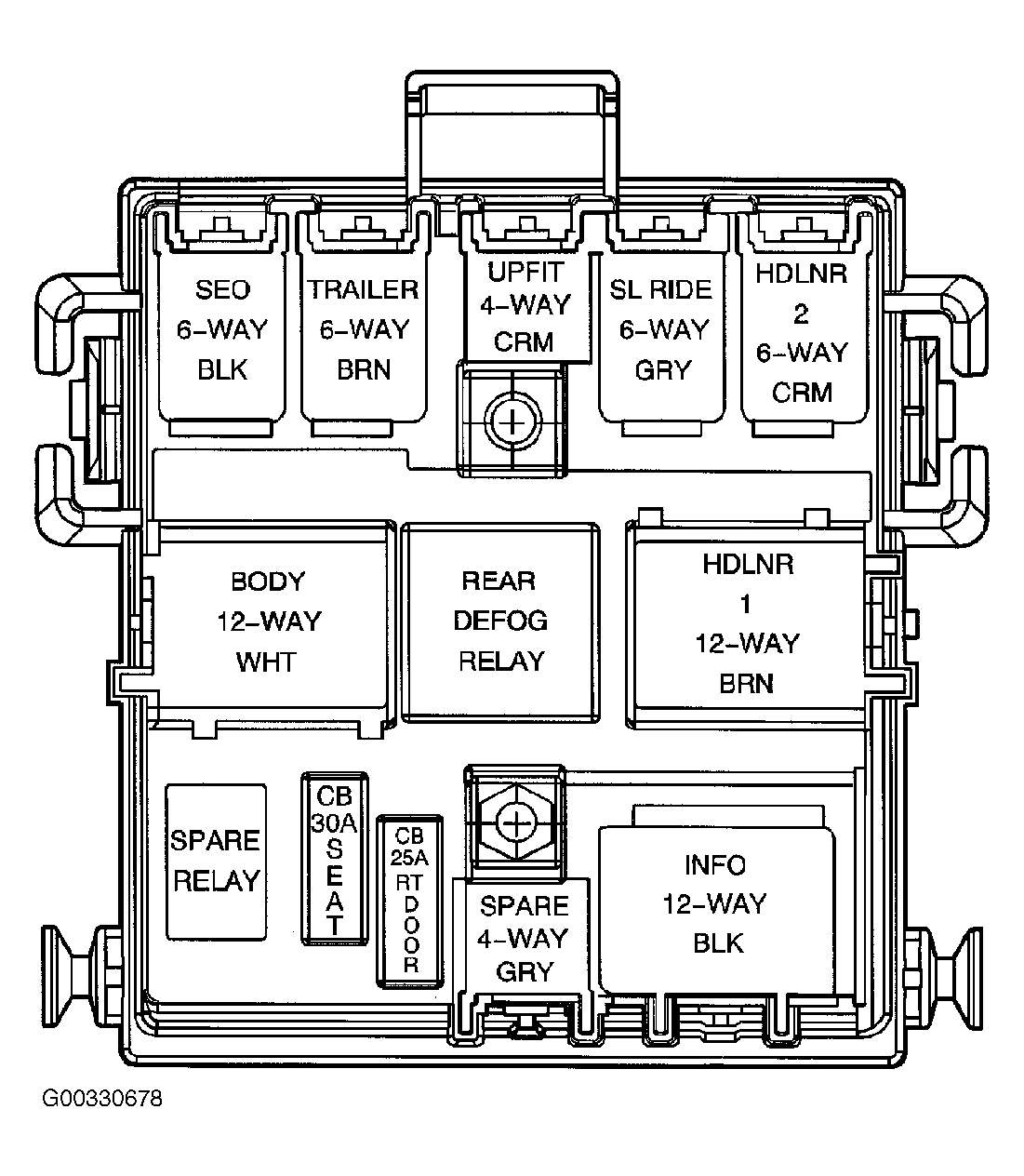

Instrument panel relay block is located under the left side of instrument panel, between the left kick panel and the steering column.
INSTRUMENT PANEL RELAY BLOCK LEGEND
| Relay/Circuit Breaker | Rating | Description |
|---|---|---|
| SEO- 6 - WAY- BLK | - | Relay Block - Body C8 |
| TRAILER- 6 - WAY- BRN | - | Relay Block - Body C7 |
| UPFIT- 4 - WAY- CRM | - | Trailer Provisions |
| SL RIDE- 6 - WAY- GRY | - | Relay Block - Body C5 |
| HDLNR 2- 6 - WAY-CRM | - | Relay Block - Body C4 |
| BODY-12-WAY-WHT | - | Relay Block - Body C10 |
| DEFOG Relay | - | RR DEFOG Fuse |
| HDLNR 1-12-WAY-BRN | - | Relay Block - Body C3 |
| SPARE-RELAY | - | Not Used |
| SEAT-Circuit Breaker | 30A | Seat Adjuster Switch - Driver, Memory Seat Module, Lumbar Bolster Switch - Front Passenger, Seat Adjuster Switch - Front Passenger |
| RT DOOR-Circuit Breaker | 25A | Front Passenger Door Module (FPDM), Window Switch - RR |
| SPARE-4 - WAY-GRY | - | Not Used |
| INFO-12-WAY-BLK | - | Relay Block - Body C9 |
