Park Brake Pedal Assembly: Removal

WARNING: This page is about a different car, the 2003 Buick Regal, 2003 Buick Century, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side instrument panel insulator.
  2. Remove the left carpet retainer.
  3. Raise support the vehicle.
  4. Relieve cable tension from the park brake system at the equalizer. See Fig 1 .
  5. Disconnect the front cable (1) from the rear cable (3) at the connector clip (2). See Fig 2 .
  6. Lower the vehicle. Disconnect the electrical connector at the parking brake switch.
  7. Remove the 3 park brake pedal assembly retaining nuts from the body mounting studs.
  8. Remove the retaining clip and disconnect the parking brake cable (1) from the park brake pedal assembly. Use the Parking Brake Cable Release Tool (J-37043) in order to remove the cable from the pedal assembly. See Fig 3 .
  9. Remove the park brake pedal assembly.

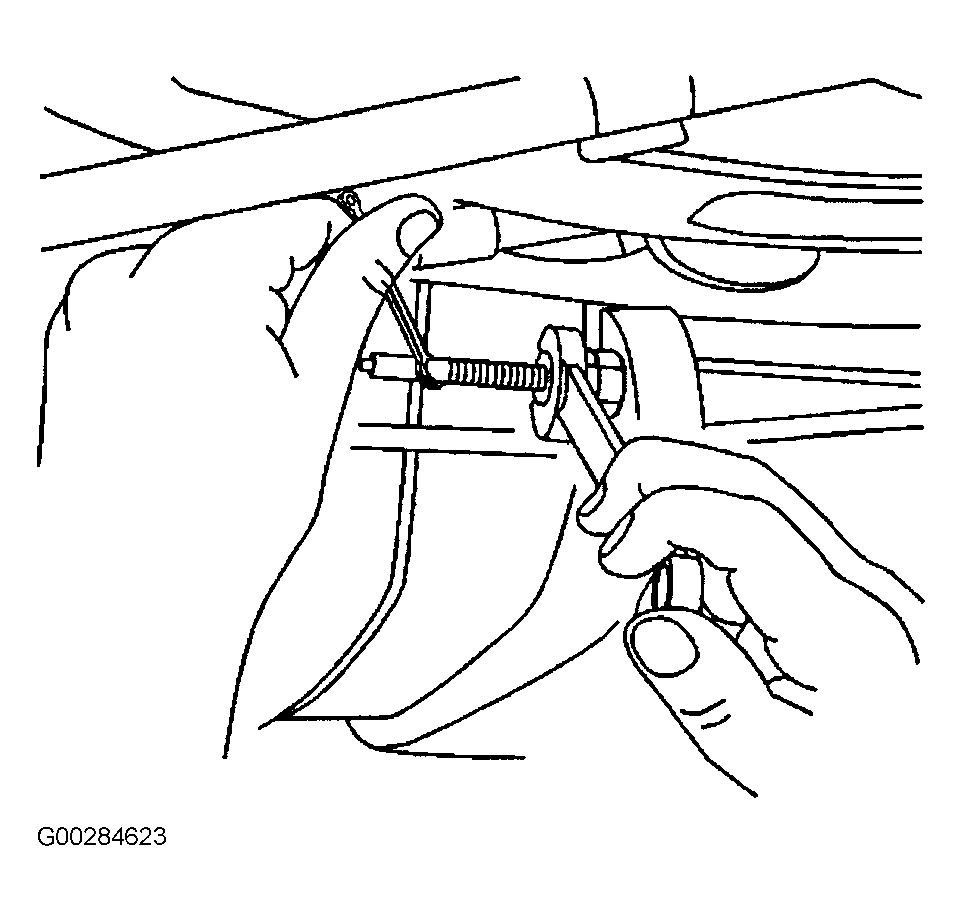

Fig 1: Relieving Cable Tension From Park Brake
G00284623Courtesy of GENERAL MOTORS CORP.
Fig 2: Disconnecting & Connecting Front Cable
G00284624Courtesy of GENERAL MOTORS CORP.
Fig 3: Removing & Installing Retaining Clip
G00284625Courtesy of GENERAL MOTORS CORP.
