Drum Brake
WARNING: This page is about a different car, the 2003 Buick Regal, 2003 Buick Century, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

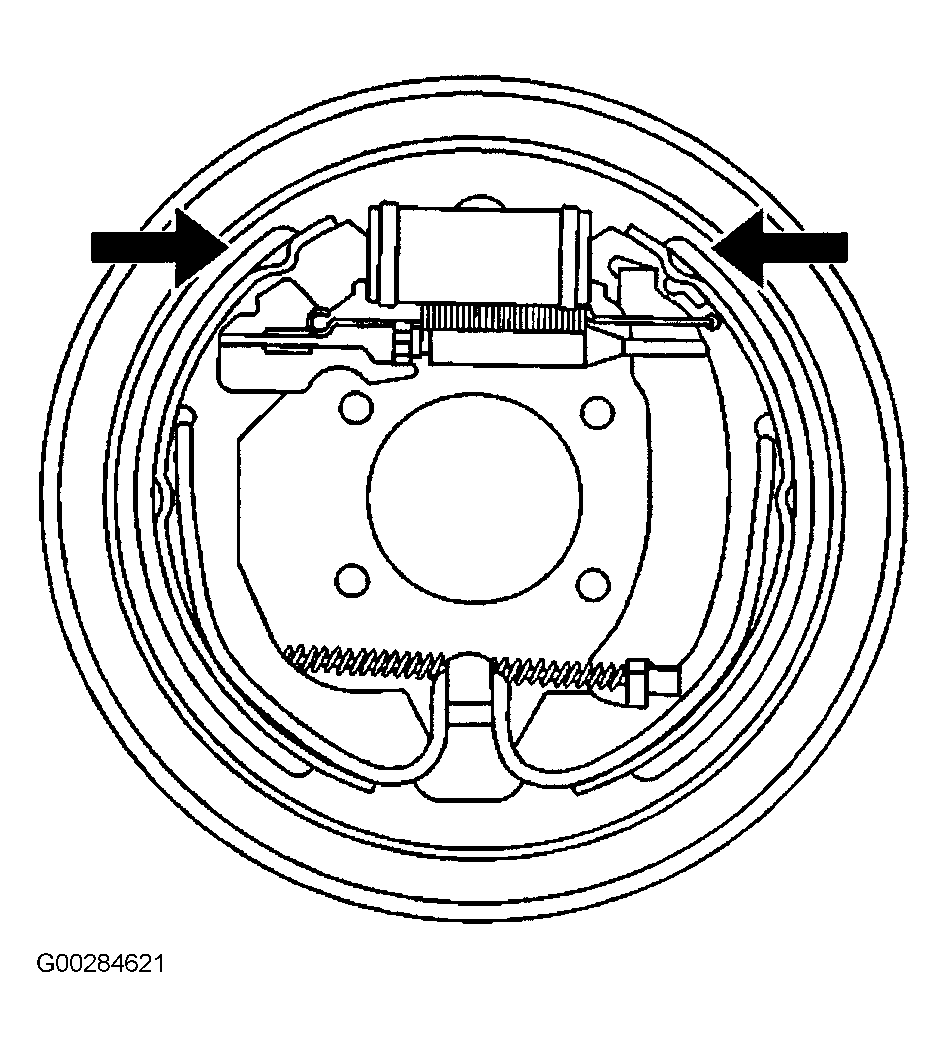

- With the rear tire and wheel assemblies and the brake drums removed, visually inspect the wheel cylinder pistons boot sealing areas to ensure that there are no brake fluid leaks. See Fig 1 .
- If any evidence of a brake fluid leak is present, the brake wheel cylinder requires replacement.
- Using firm hand pressure, simultaneously and evenly apply force on both brake shoes in order to compress the wheel cylinder pistons into their bore.
- Evenly release the force from both brake shoes to allow the wheel cylinder pistons to return. If one or both of the wheel cylinder pistons did not exhibit unrestricted and even movement during apply and/or release of force, the wheel cylinder may require replacement.
