Component Location

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

See Fig 1 and Fig 2 for views of axle shafts.

Fig 1: Exploded View Of Typical Axle Shaft

Courtesy of GENERAL MOTORS CORP.

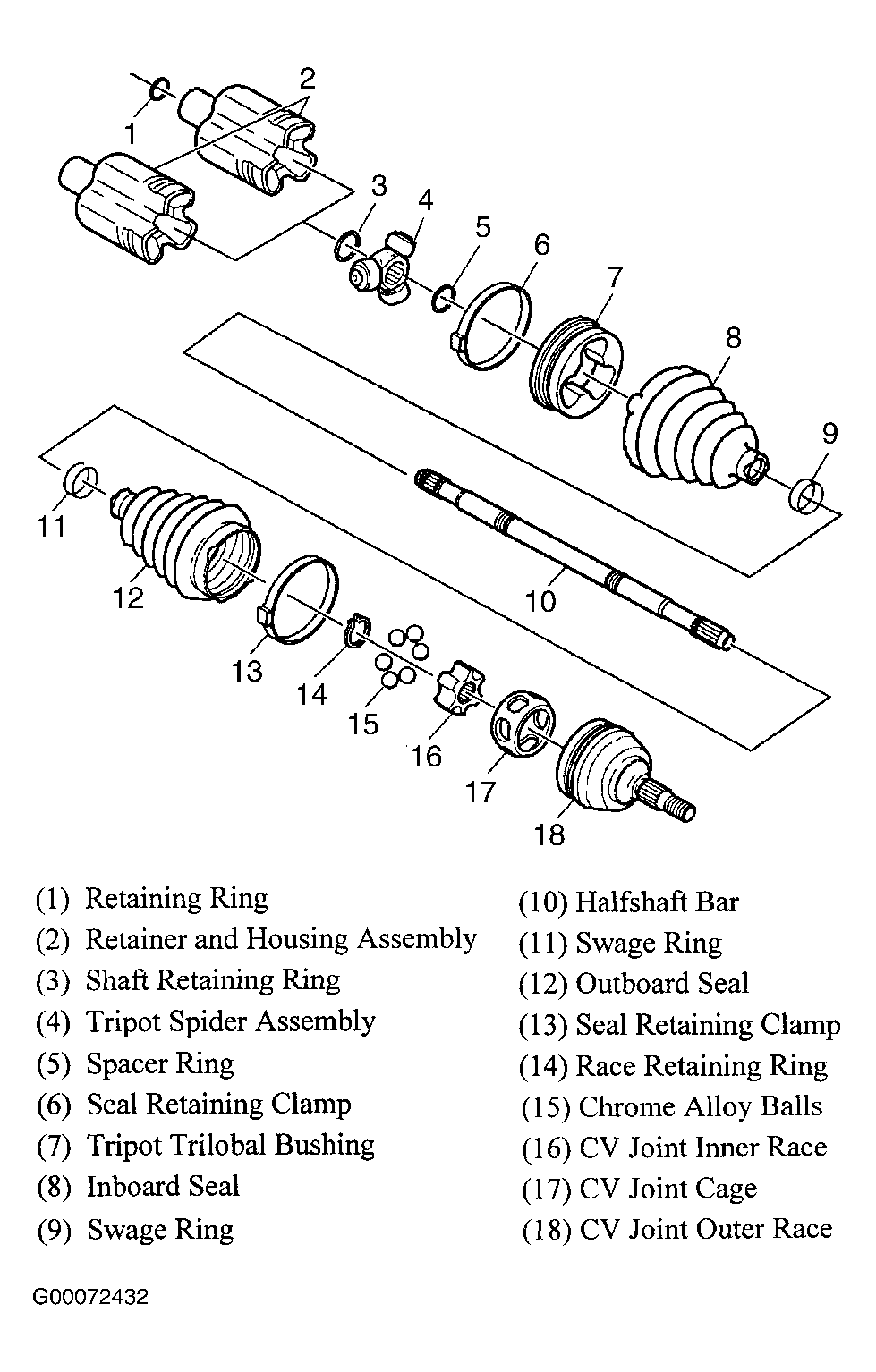

Fig 2: Exploded View Of Front Axle Shaft (With LNK Engine)

Courtesy of GENERAL MOTORS CORP.
