Differential Carrier Assembly Mount: Installation
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

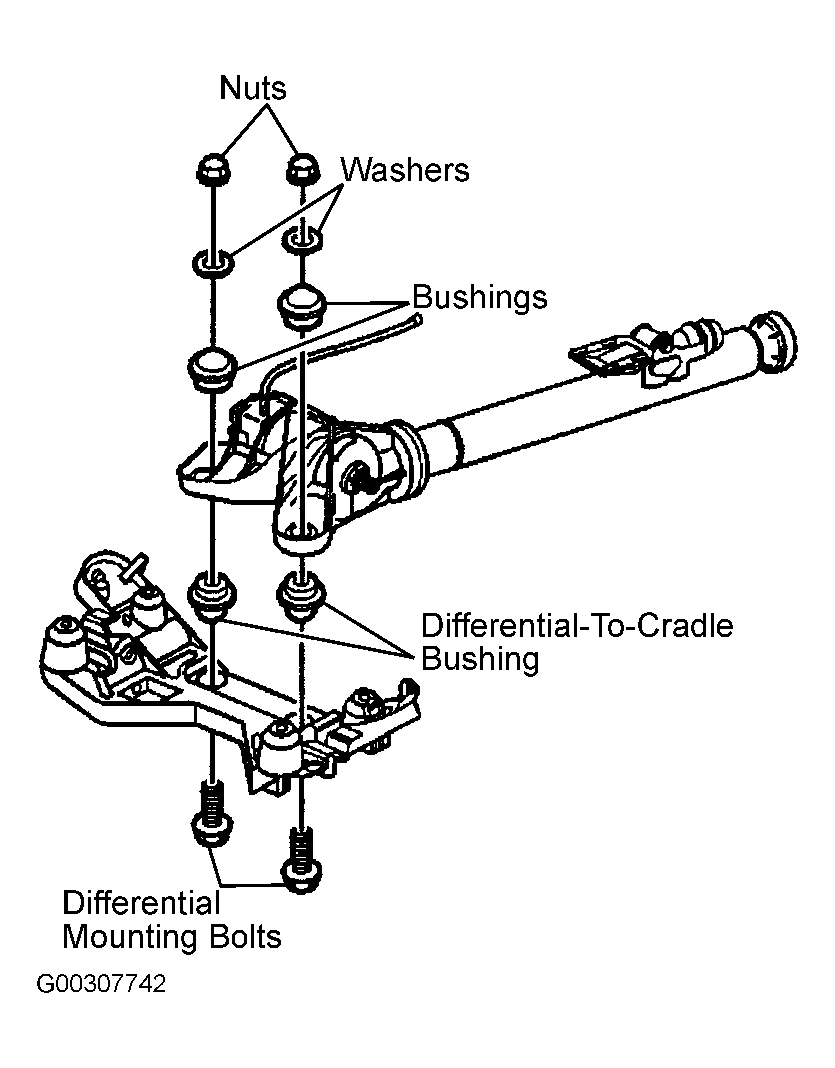

- Install the differential-to-cradle bushings. See Figure . Lower and remove the jack stand.
- Install the cradle-to-differential mounting bolts, bushings, washers, and nuts to the differential. Tighten the bolts and nuts to specifications. See TORQUE SPECIFICATIONS .
- Secure the torque tube-to-bracket through bolt and nut. Tighten the bolt and nut to specifications. See TORQUE SPECIFICATIONS . Lower the vehicle.
