STOPLAMP Switch: Removal

WARNING: This page is about a different car, the 2002 Buick Regal, 2002 Buick Century, 2001 Buick Regal, and 2001 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side instrument panel insulator in the following order:
    1. Use the Door Trim Pad Clip Remover (J 38778) to remove the left side instrument panel insulator retainers from the steering column opening filler panel.
    2. Disconnect the courtesy lamp from the instrument panel insulator by turning 1/4 turn counterclockwise.
    3. Remove the insulator from the stud at the accelerator pedal.
    4. Remove the left insulator.
  2. Disconnect the electrical connector from the stoplamp switch.

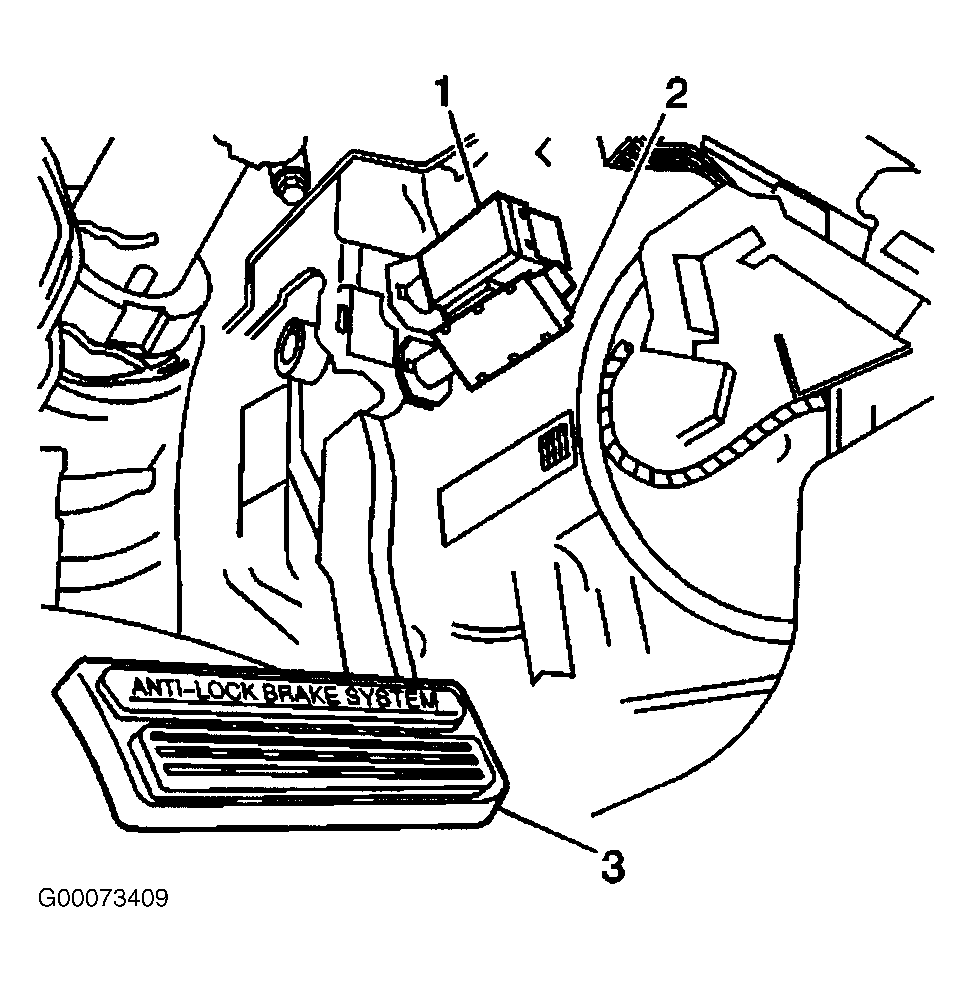

  3. Remove the stoplamp switch (2) from the brake pedal bracket. See Figure .
