Input Shaft Speed Sensor: Installation

WARNING: This page is about a different car, the 2002 Buick Regal, 2002 Buick Century, 2001 Buick Regal, and 2001 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

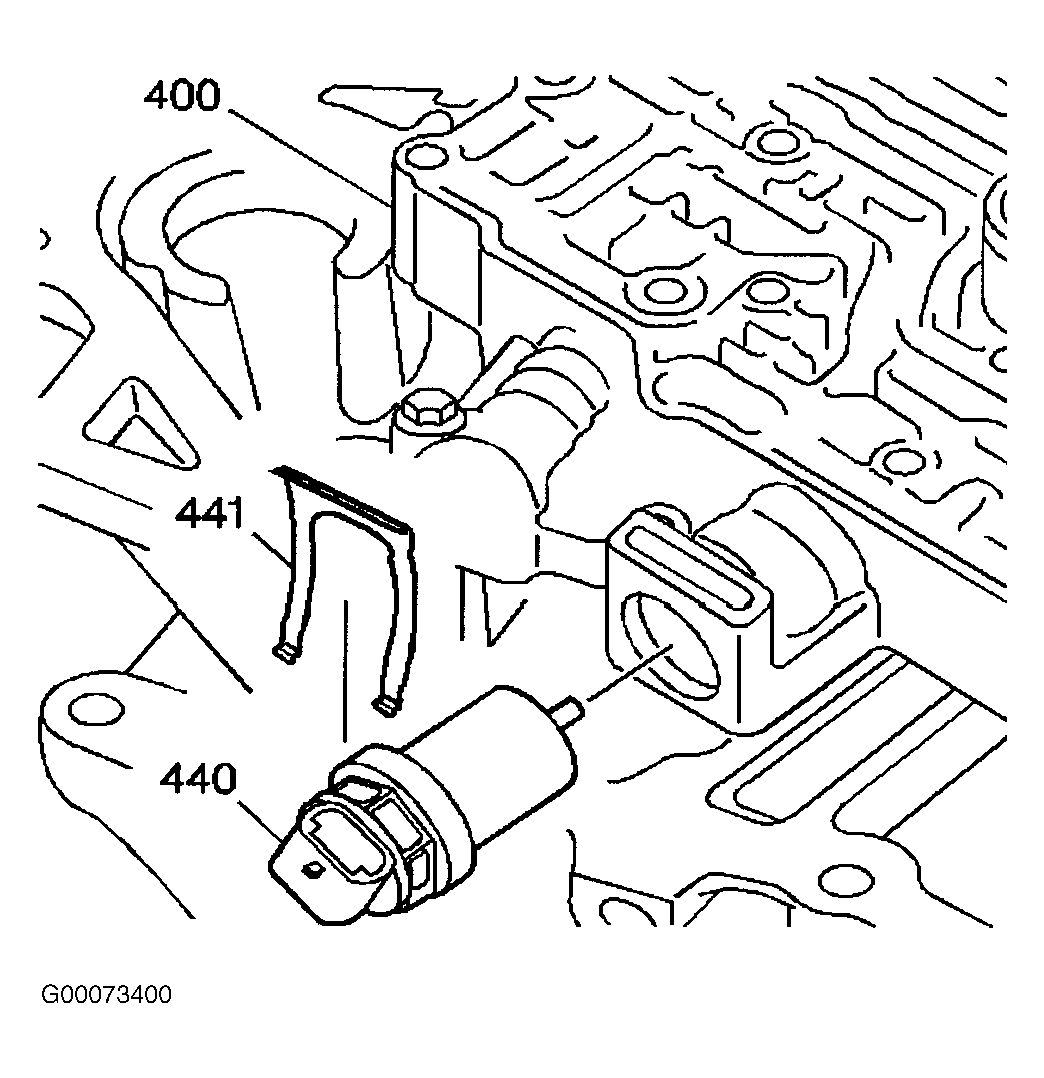

  1. Install the input speed sensor (440) into the case cover. See Figure .
  2. Install the input speed sensor clip (441) into the case cover.
  3. Connect the transaxle wiring harness.
  4. Install the case side cover. See appropriate AUTOMATIC article in TRANSMISSION SERVICING.
