2-3 Shift Solenoid Valve: Installation

WARNING: This page is about a different car, the 2002 Buick Regal, 2002 Buick Century, 2001 Buick Regal, and 2001 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new "O" ring seal (316) onto the 2-3 shift solenoid valve (315B), if it was removed. See Fig 1 .
  2. Install the 2-3 shift solenoid valve (315B) into the control valve body (301).
  3. Install the 2-3 shift solenoid valve retainer (314C) into the control valve body (301).
  4. Connect the transaxle wiring harness.
  5. Install the case side cover. See appropriate AUTOMATIC article in TRANSMISSION SERVICING.

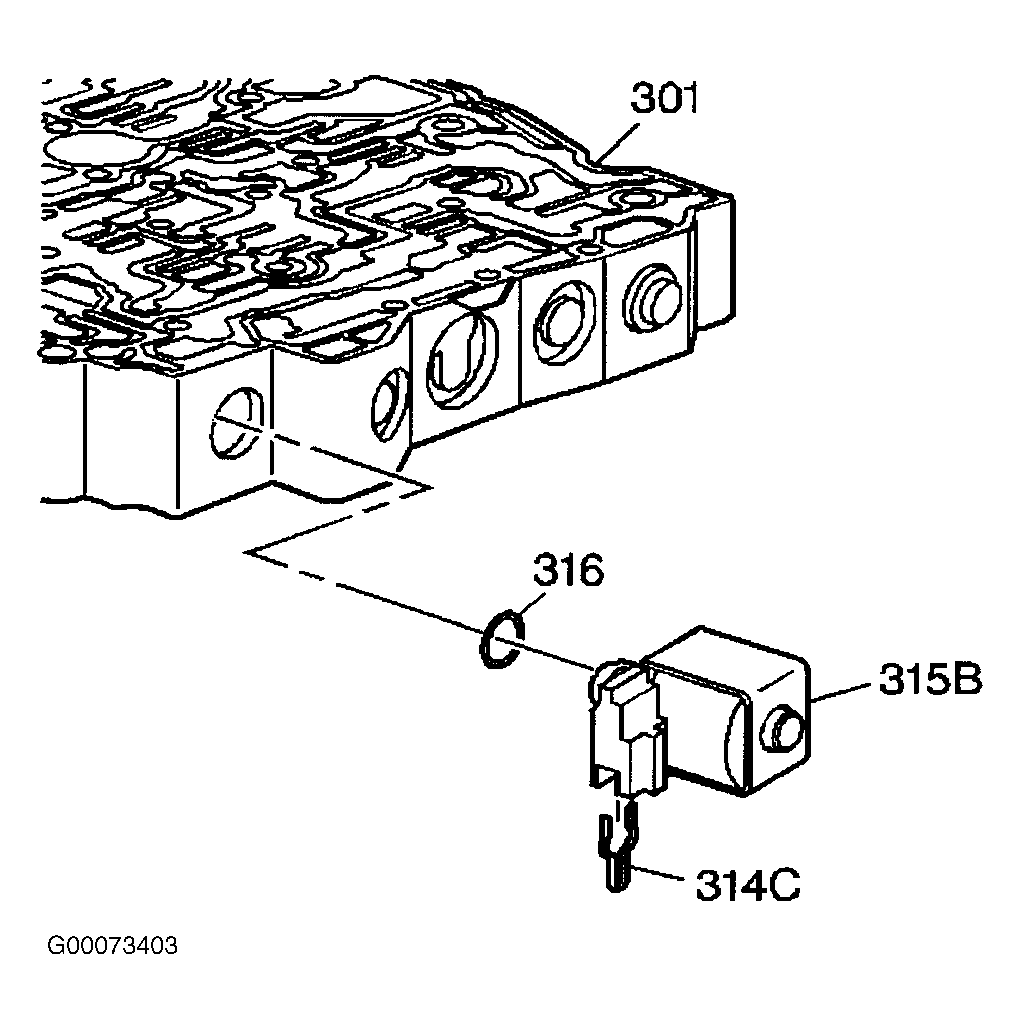

Fig 1: Exploded View Of 2-3 Shift Solenoid Valve Components
G00073403Courtesy of GENERAL MOTORS CORP.
