Powertrain Control Module

WARNING: This page is about a different car, the 2002 Buick Regal, 2002 Buick Century, 2001 Buick Regal, and 2001 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

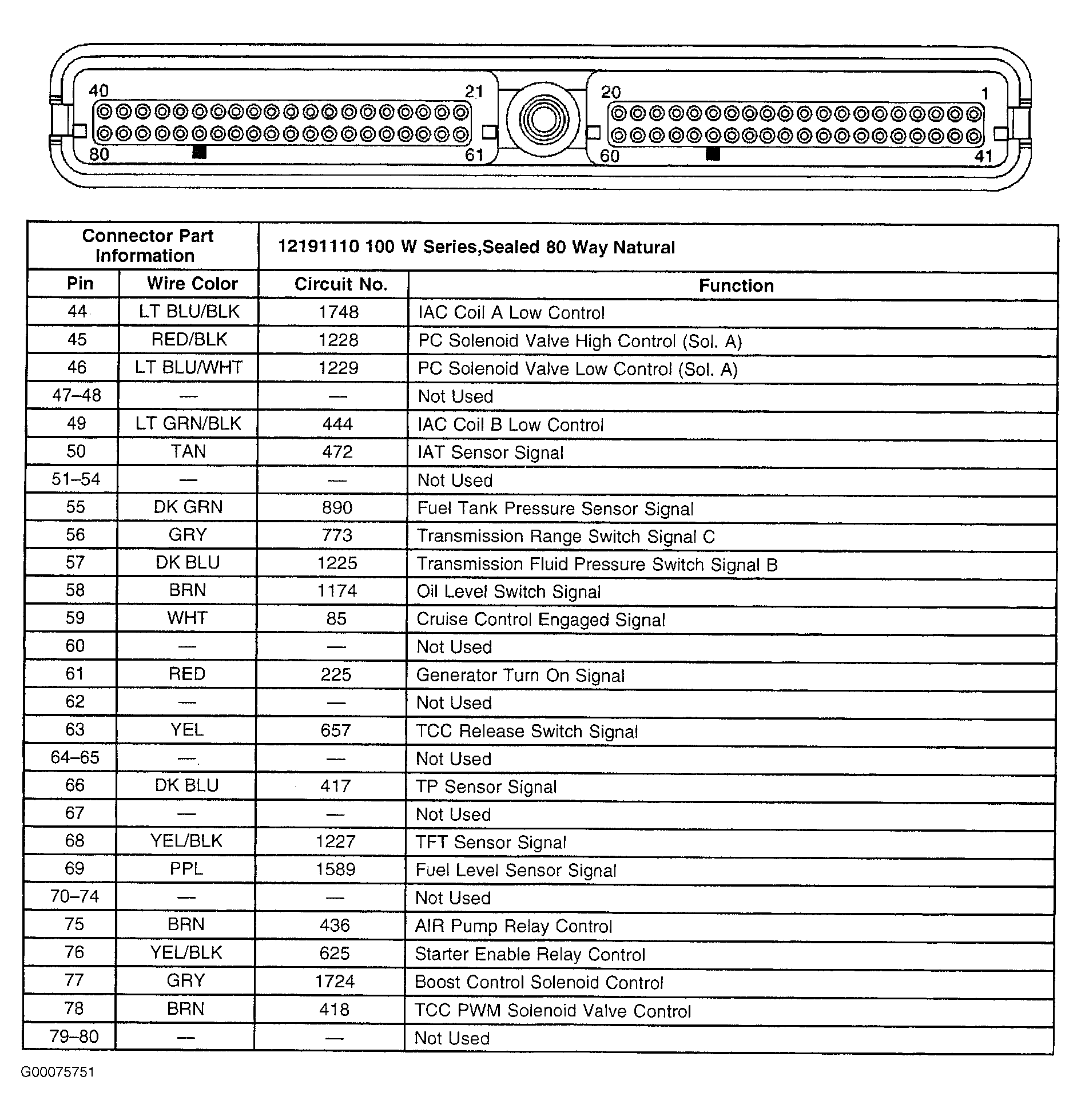

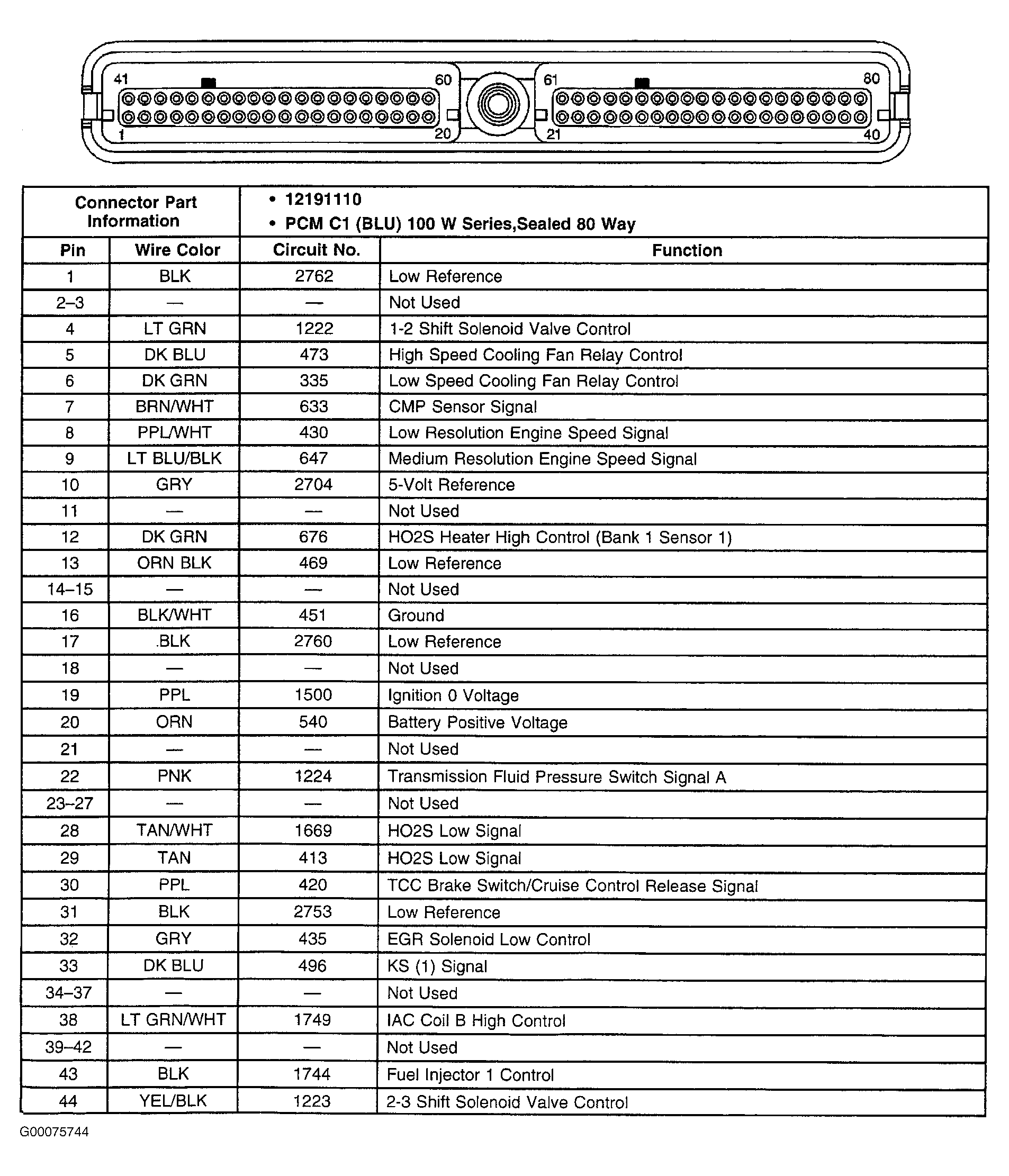

PCM (located on left side of engine compartment, in air cleaner) controls ignition, fuel and emission devices related to engine and transaxle operation. PCM receives electronic signals from sensors and switches. Input signals enable PCM to determine when to operate various relays and solenoids related to engine and transaxle control. PCM utilizes 2 different colored 80-way connectors. See Figure -Figure .
