Connector Identification

WARNING: This page is about a different car, the 2002 Buick Regal, 2002 Buick Century, 2001 Buick Regal, and 2001 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

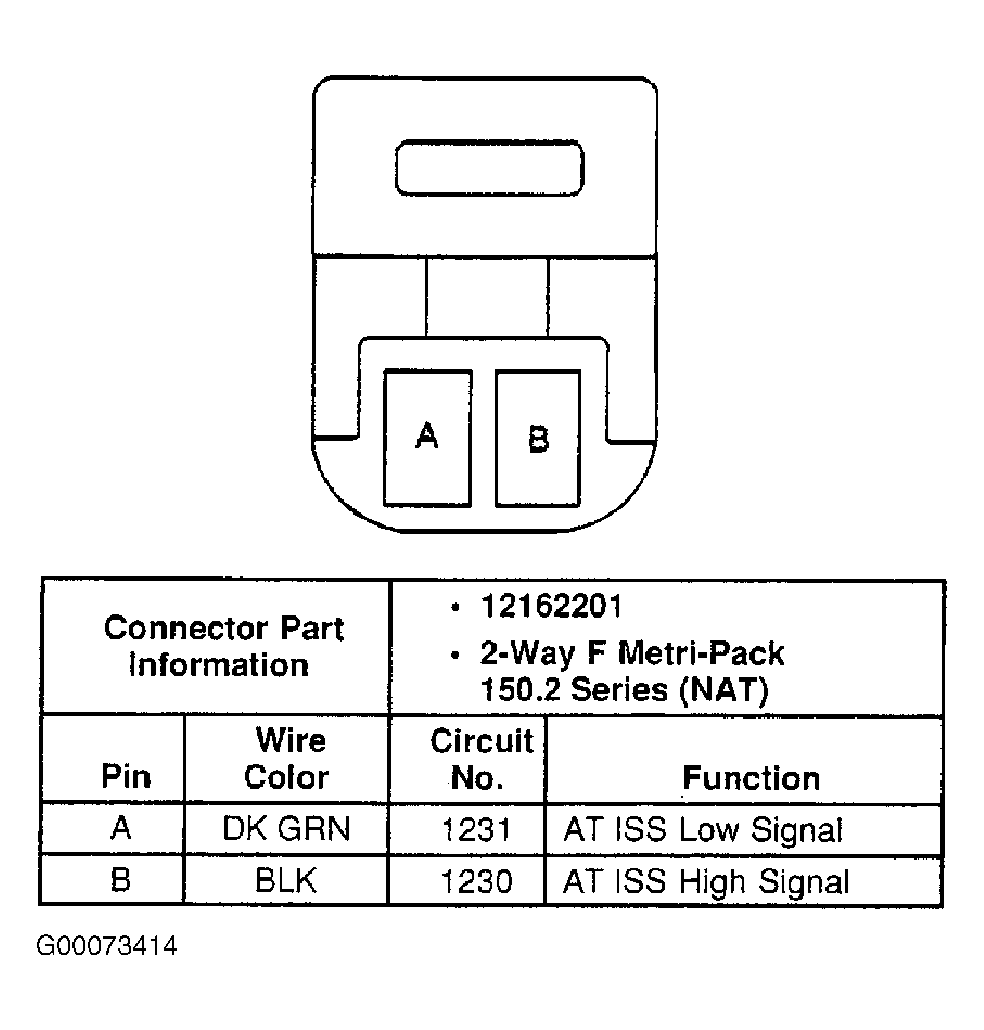

Fig 1: Identifying Input Speed Sensor Connector Terminals (Harness Side)

G00073414

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying PCM 80-Way Connector C1 Terminals (3.1L - 1 Of 2)

G00075744

Courtesy of GENERAL MOTORS CORP.

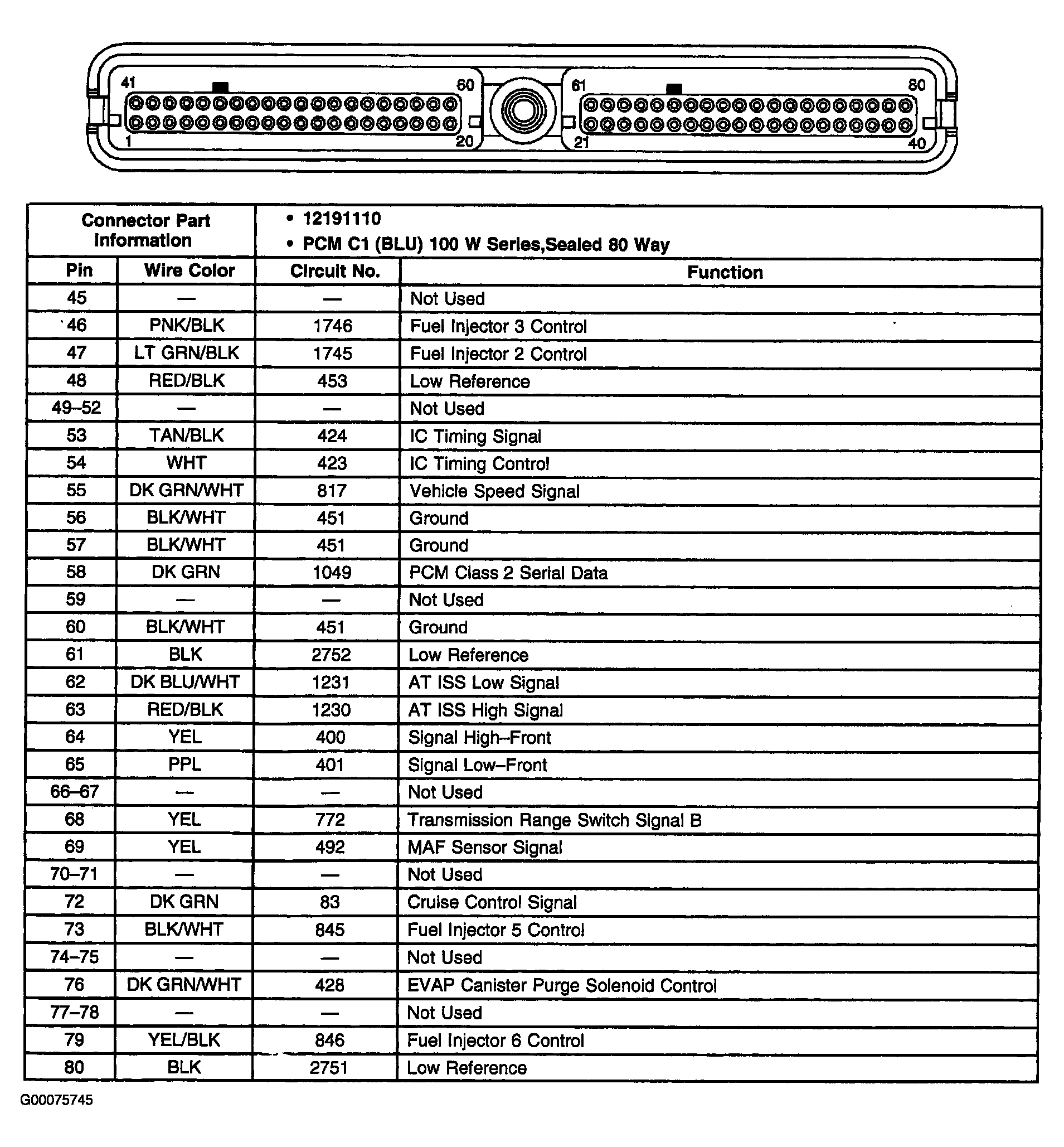

Fig 3: Identifying PCM 80-Way Connector C1 Terminals (3.1L - 2 Of 2)

G00075745

Courtesy of GENERAL MOTORS CORP.

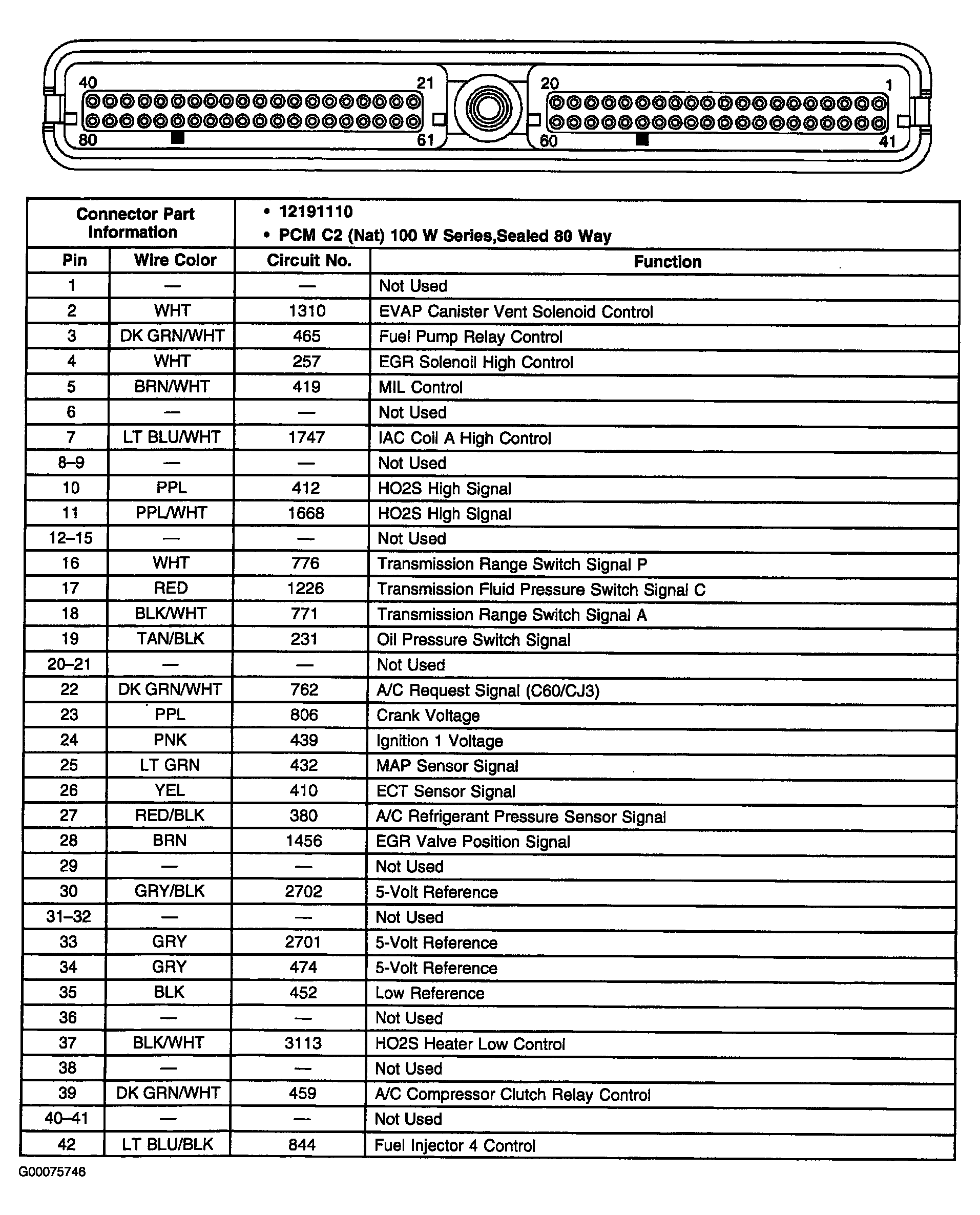

Fig 4: Identifying PCM 80-Way Connector C2 Terminals (3.1L - 1 Of 2)

G00075746

Courtesy of GENERAL MOTORS CORP.

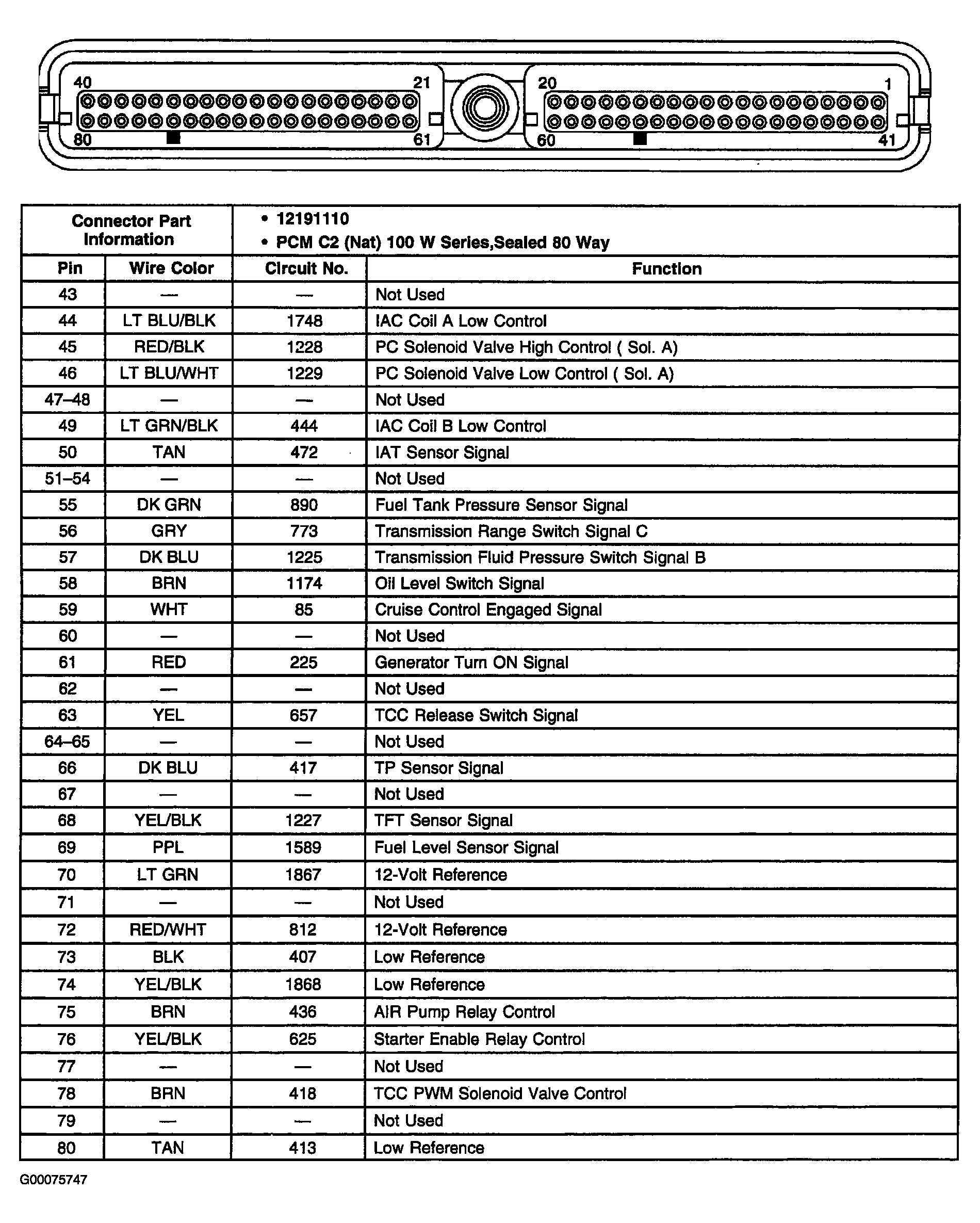

Fig 5: Identifying PCM 80-Way Connector C2 Terminals (3.1L - 2 Of 2)

G00075747

Courtesy of GENERAL MOTORS CORP.

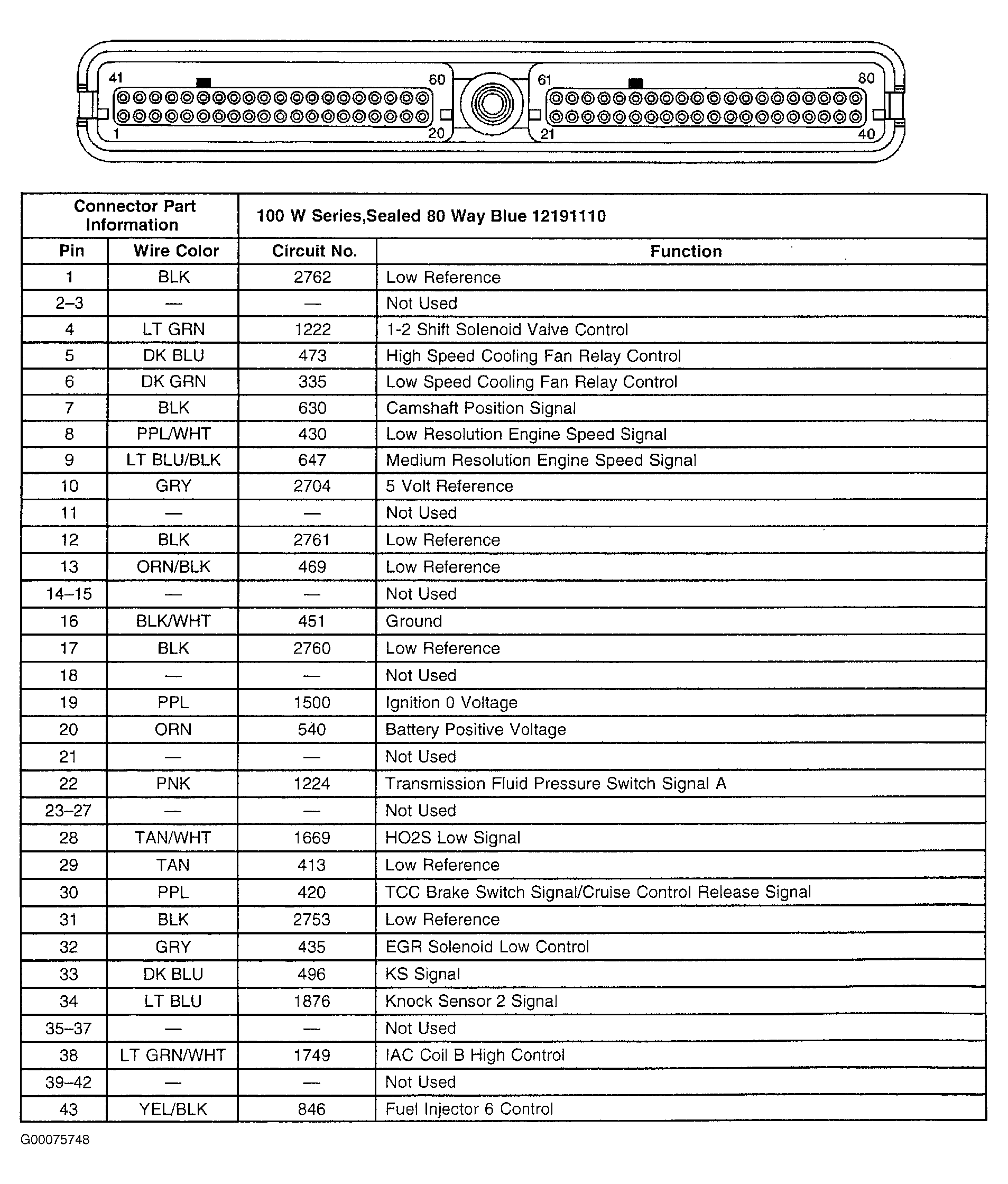

Fig 6: Identifying PCM 80-Way Connector C1 Terminals (3.8L - 1 Of 2)

G00075748

Courtesy of GENERAL MOTORS CORP.

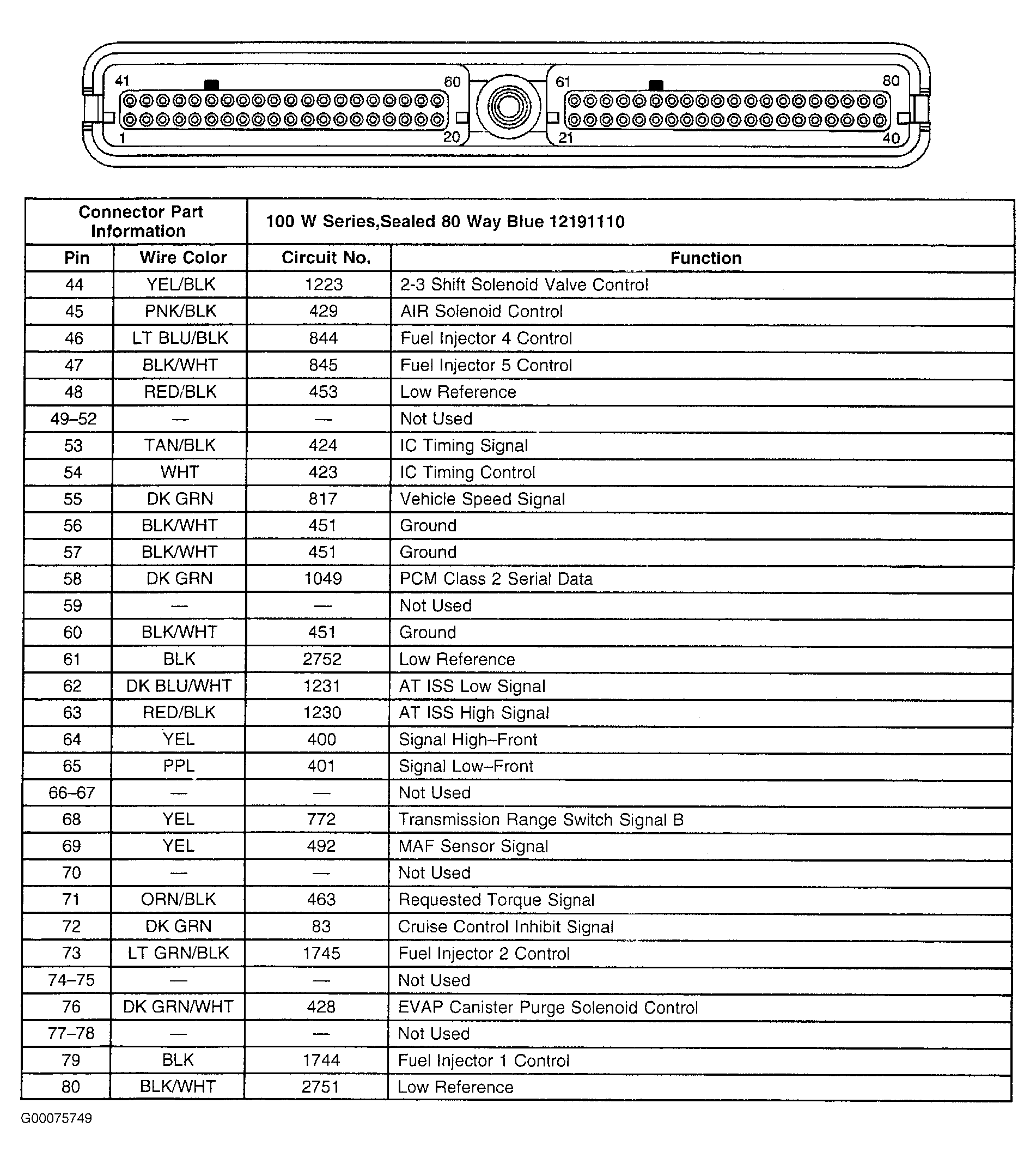

Fig 7: Identifying PCM 80-Way Connector C1 Terminals (3.8L - 2 Of 2)

G00075749

Courtesy of GENERAL MOTORS CORP.

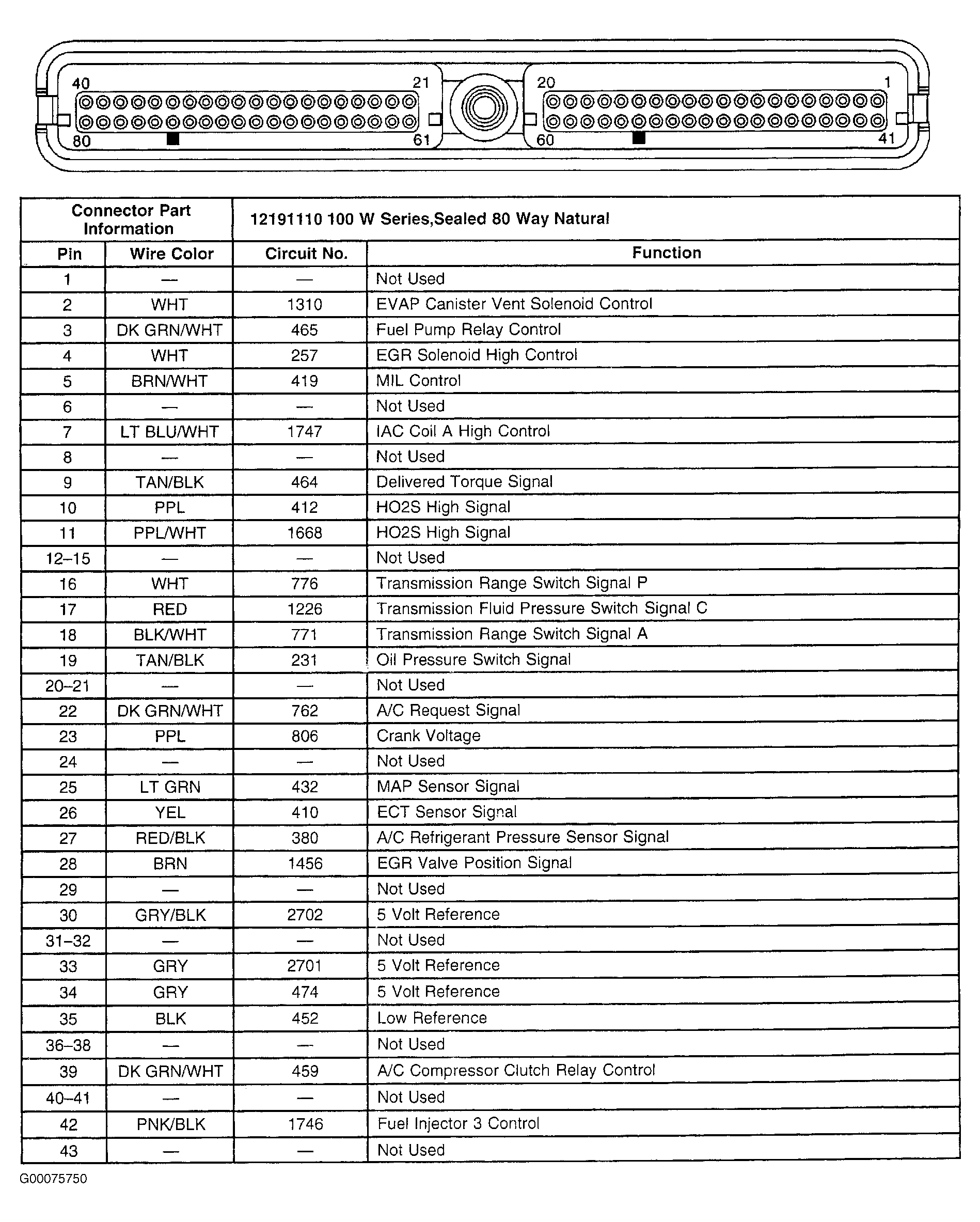

Fig 8: Identifying PCM 80-Way Connector C2 Terminals (3.8L - 1 Of 2)

G00075750

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying PCM 80-Way Connector C2 Terminals (3.8L - 2 Of 2)

G00075751

Courtesy of GENERAL MOTORS CORP.

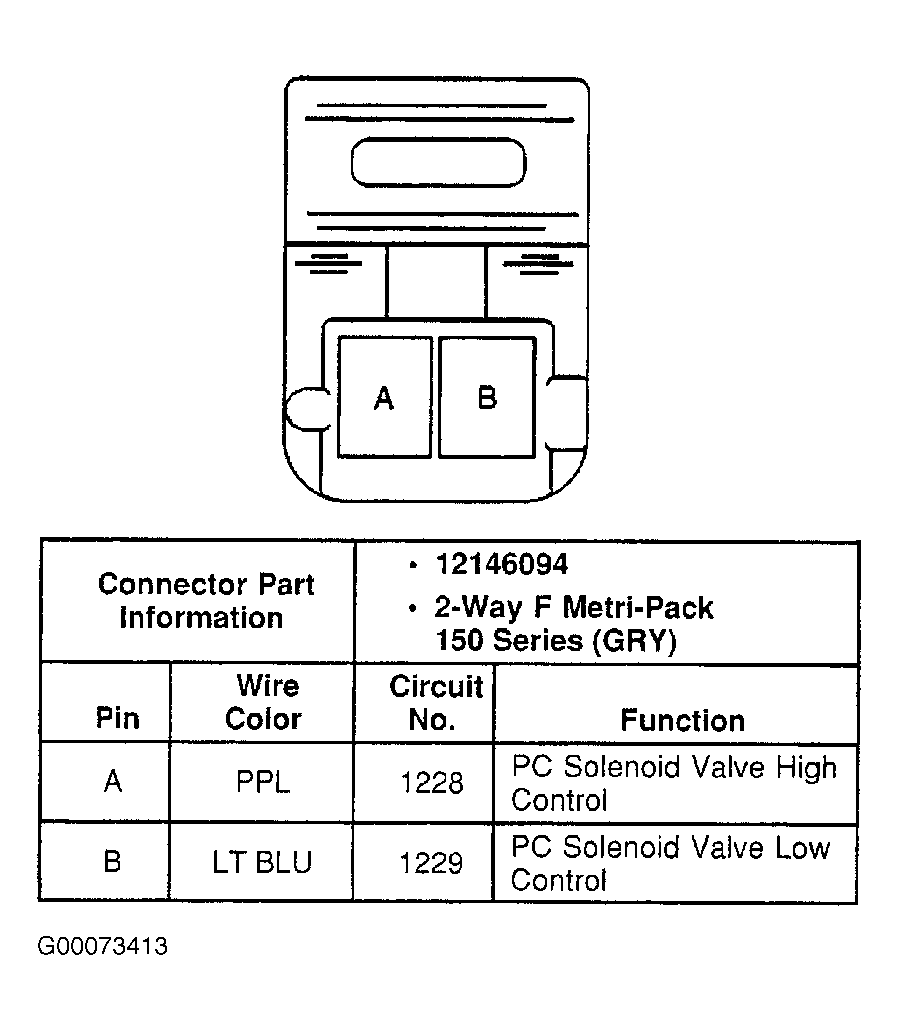

Fig 10: Identifying Pressure Control Solenoid Valve Connector Terminals (Harness Side)

G00073413

Courtesy of GENERAL MOTORS CORP.

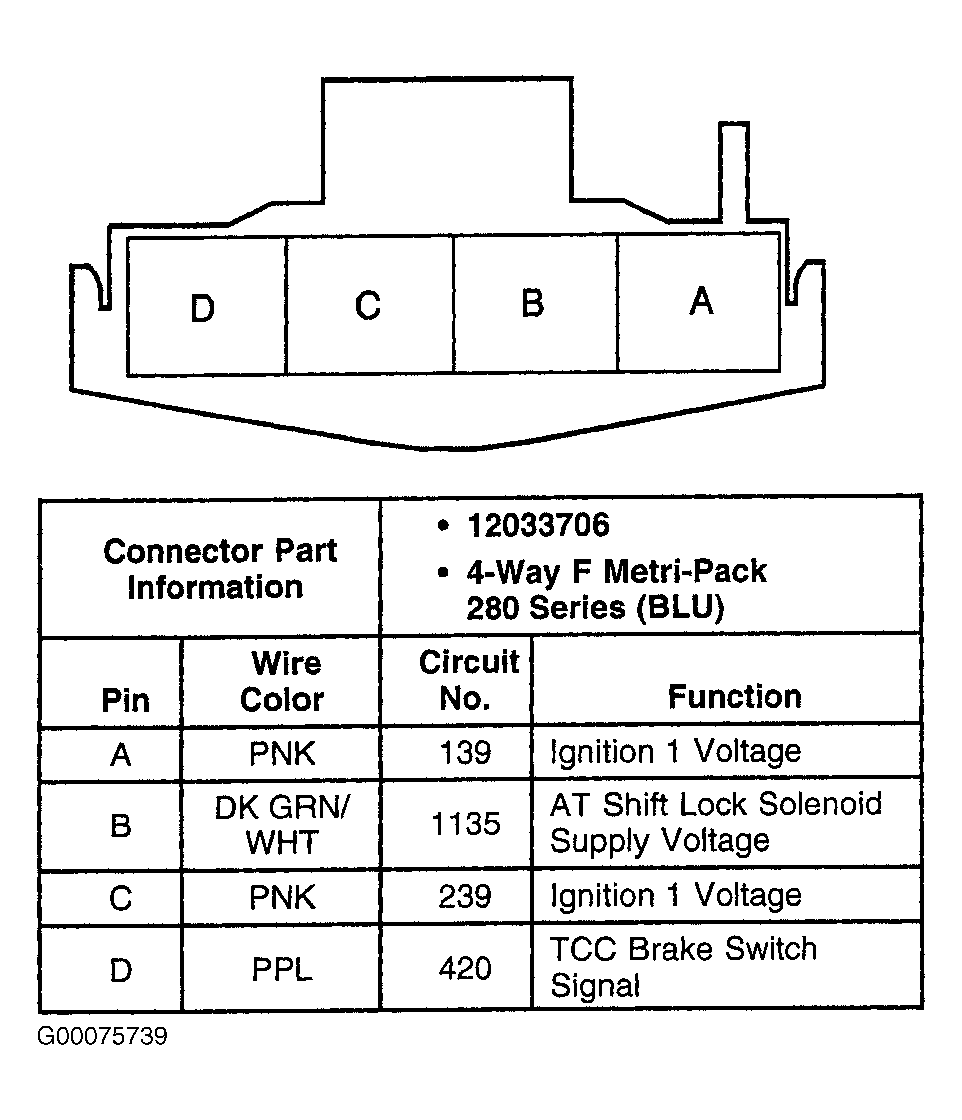

Fig 11: Identifying Stoplamp Switch Connector Terminals (Harness Side)

G00075739

Courtesy of GENERAL MOTORS CORP.

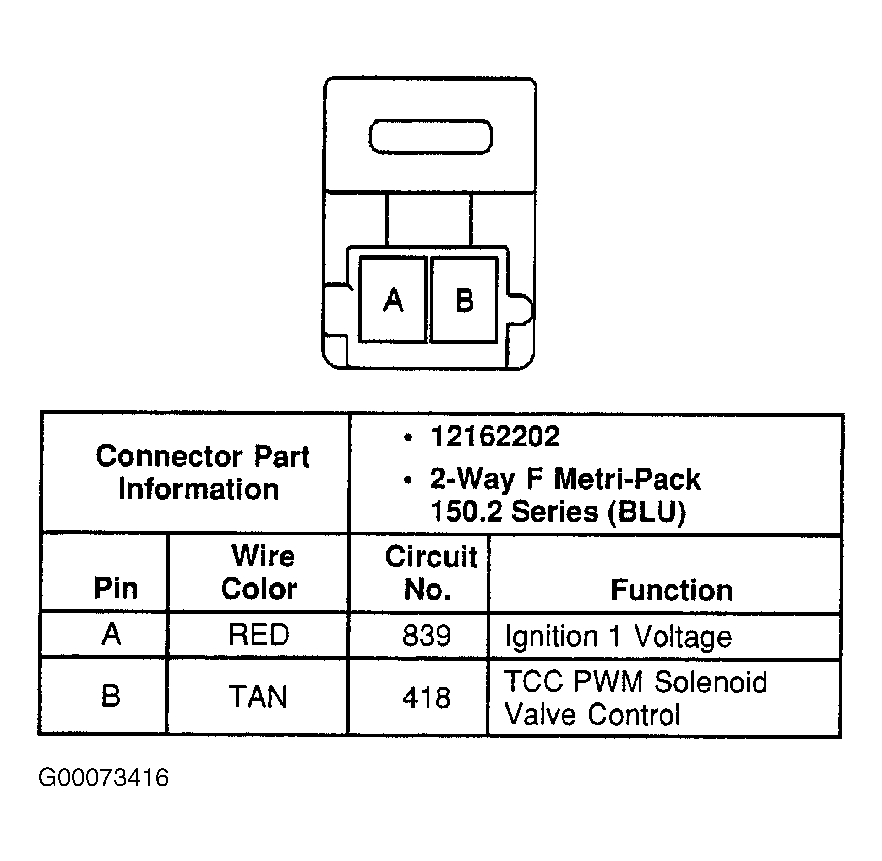

Fig 12: Identifying TCC Pulse Width Modulated Solenoid Valve Connector Terminals (Harness Side)

G00073416

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying Transaxle In-Line Harness 20-Way Connector Terminals

G00075742

Courtesy of GENERAL MOTORS CORP.

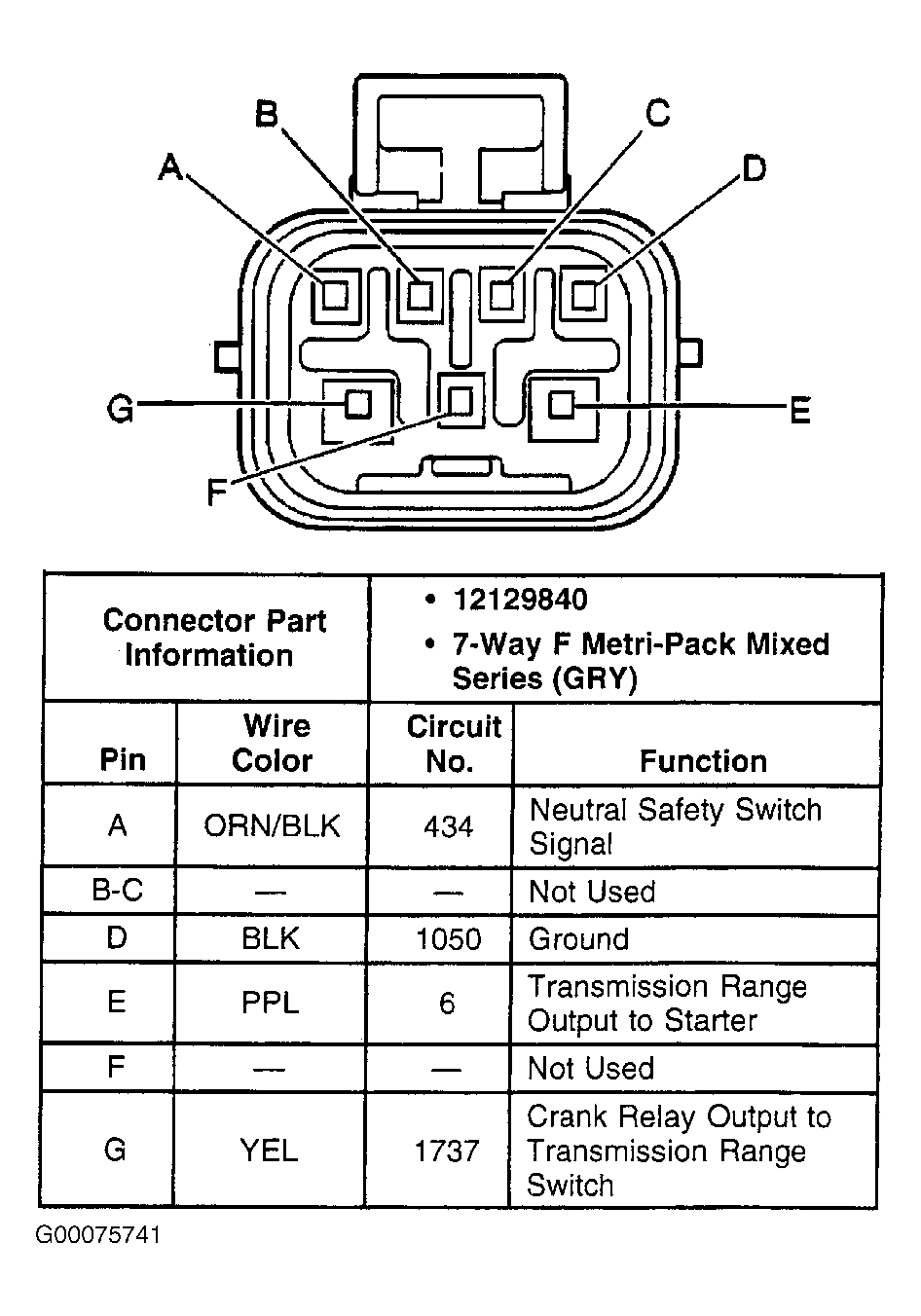

Fig 14: Identifying Transaxle Range Switch Connector C1 Terminals (Harness Side)

G00075741

Courtesy of GENERAL MOTORS CORP.

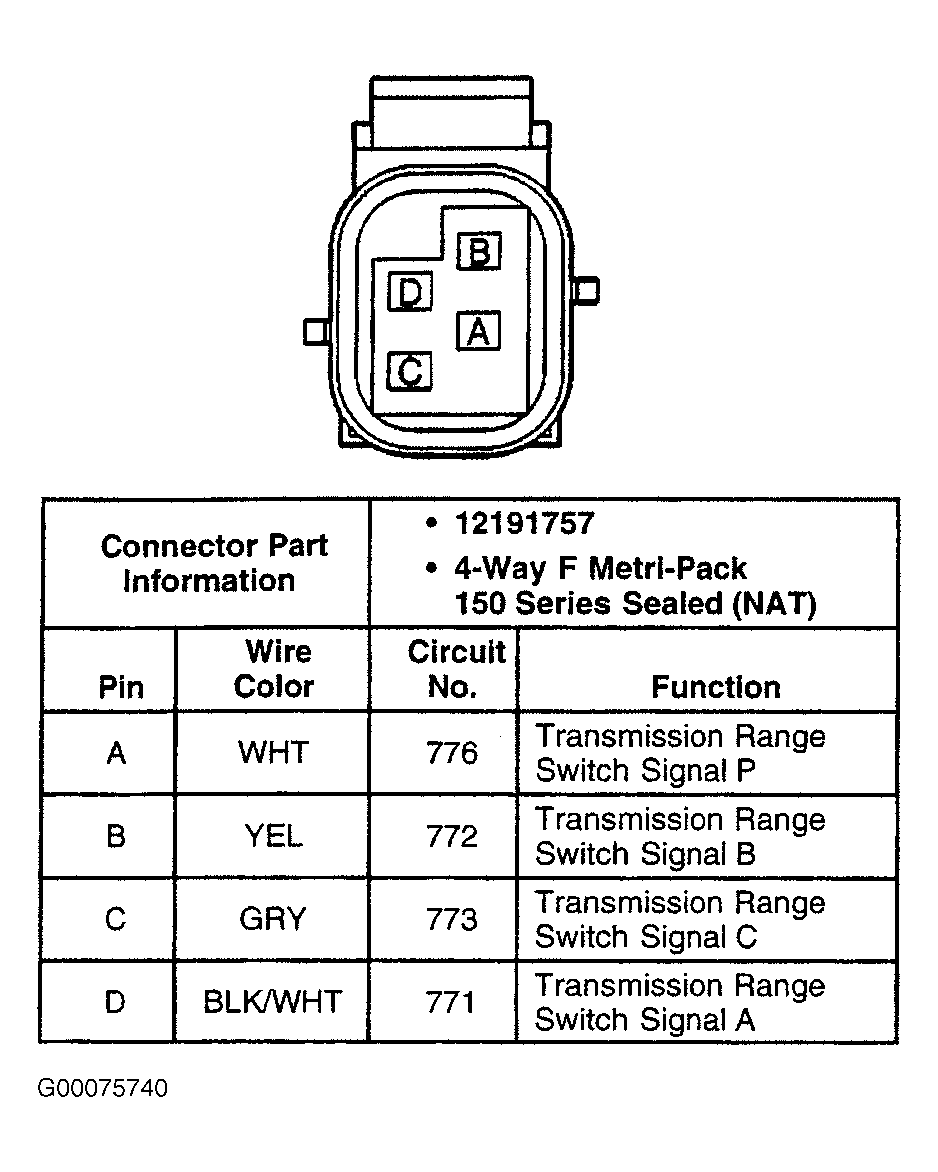

Fig 15: Identifying Transaxle Range Switch Connector C2 Terminals (Harness Side)

G00075740

Courtesy of GENERAL MOTORS CORP.

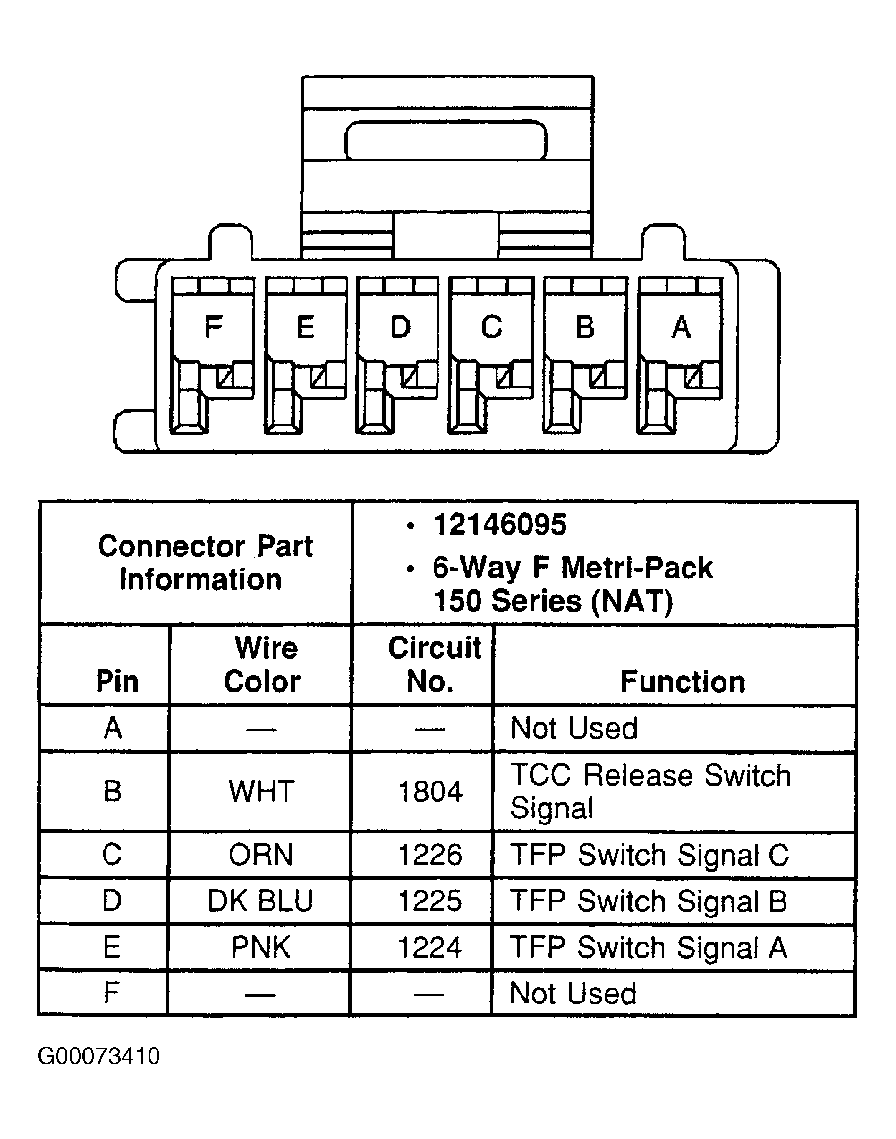

Fig 16: Identifying Transmission Fluid Pressure Manual Valve Position Switch Connector Terminals (Harness Side)

G00073410

Courtesy of GENERAL MOTORS CORP.

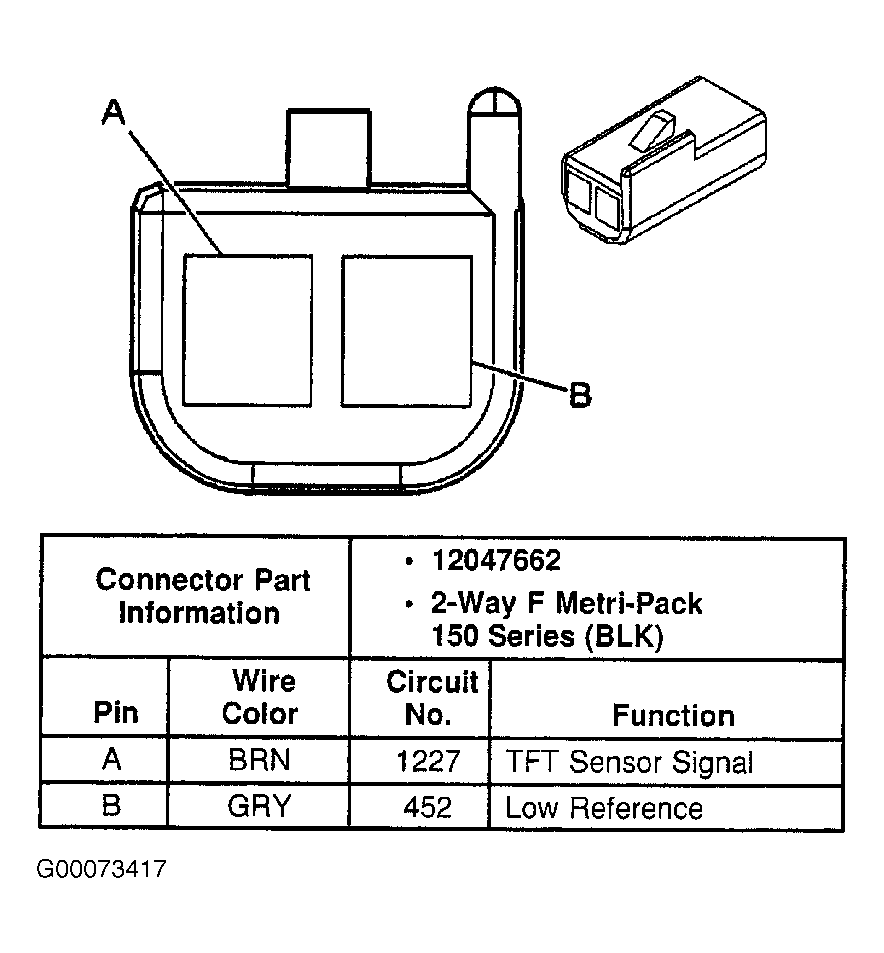

Fig 17: Identifying Transmission Fluid Temperature Sensor Connector Terminals (Harness Side)

G00073417

Courtesy of GENERAL MOTORS CORP.

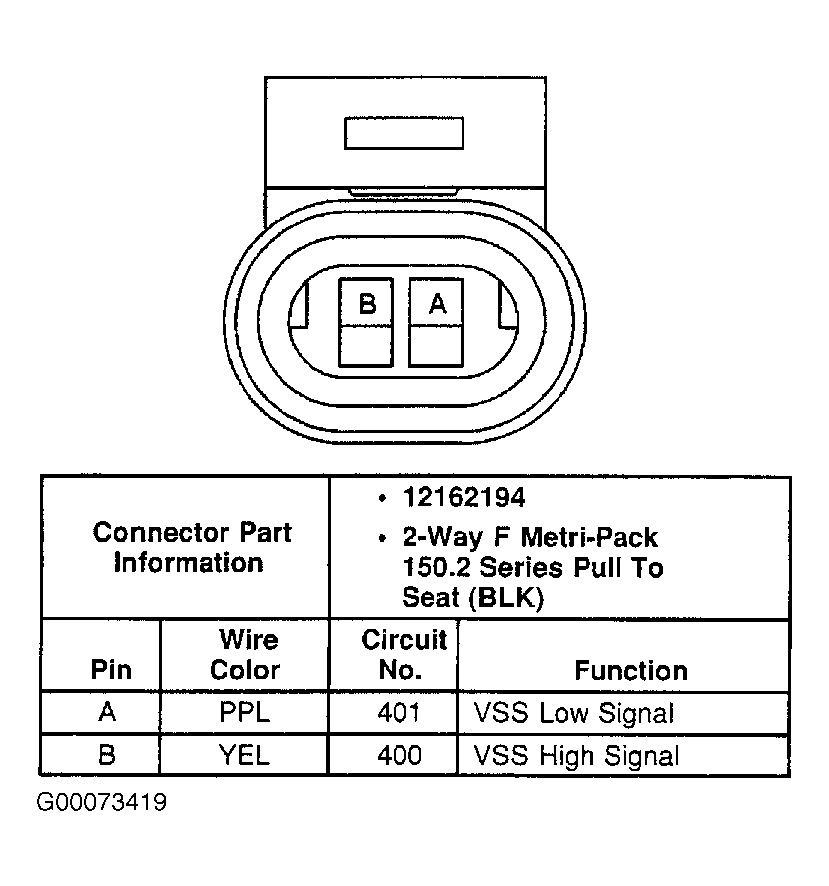

Fig 18: Identifying Vehicle Speed Sensor Connector Terminals (Harness Side)

G00073419

Courtesy of GENERAL MOTORS CORP.

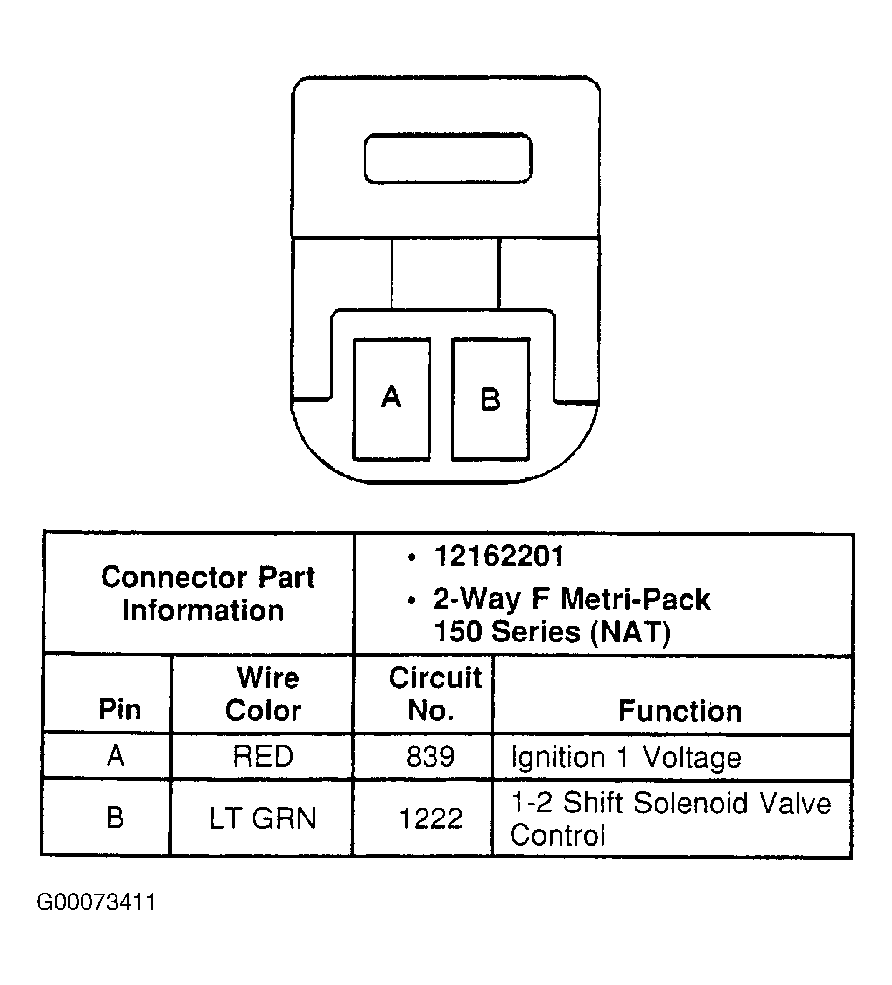

Fig 19: Identifying 1-2 Shift Solenoid Connector Terminals (Harness Side)

G00073411

Courtesy of GENERAL MOTORS CORP.

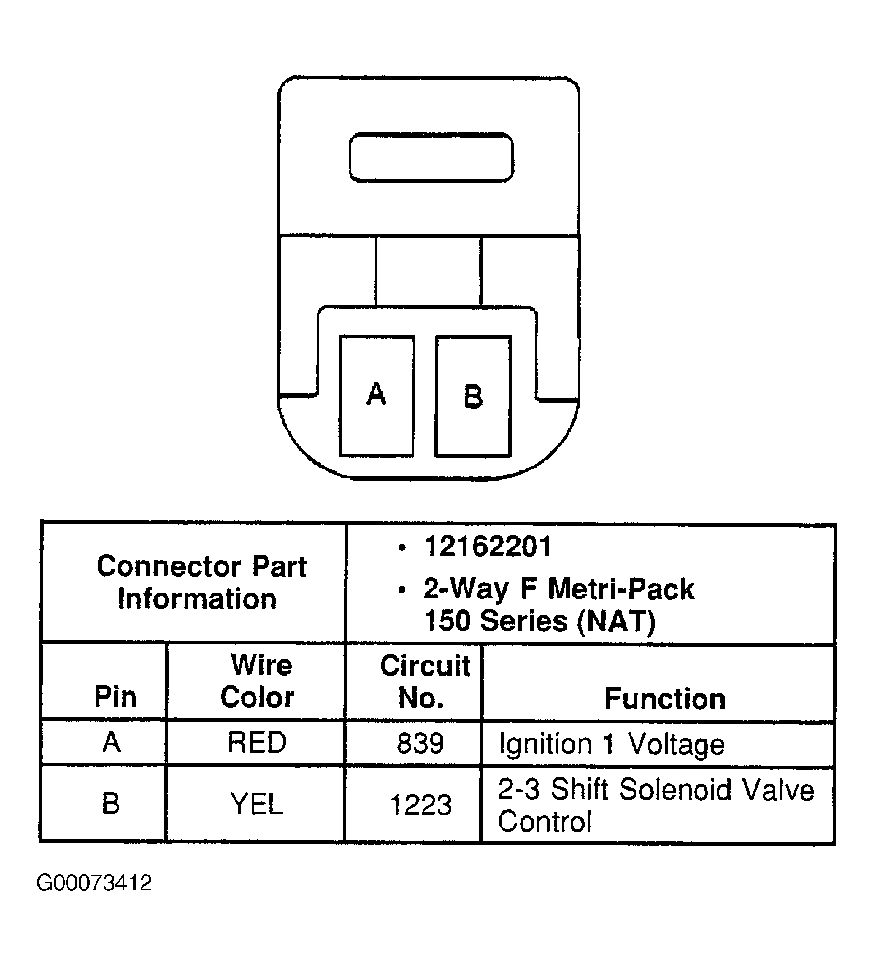

Fig 20: Identifying 2-3 Shift Solenoid Connector Terminals (Harness Side)

G00073412

Courtesy of GENERAL MOTORS CORP.
