Drive Belt Routing & Alignment: 4.2L

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, 2004 Chevrolet TrailBlazer, and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.

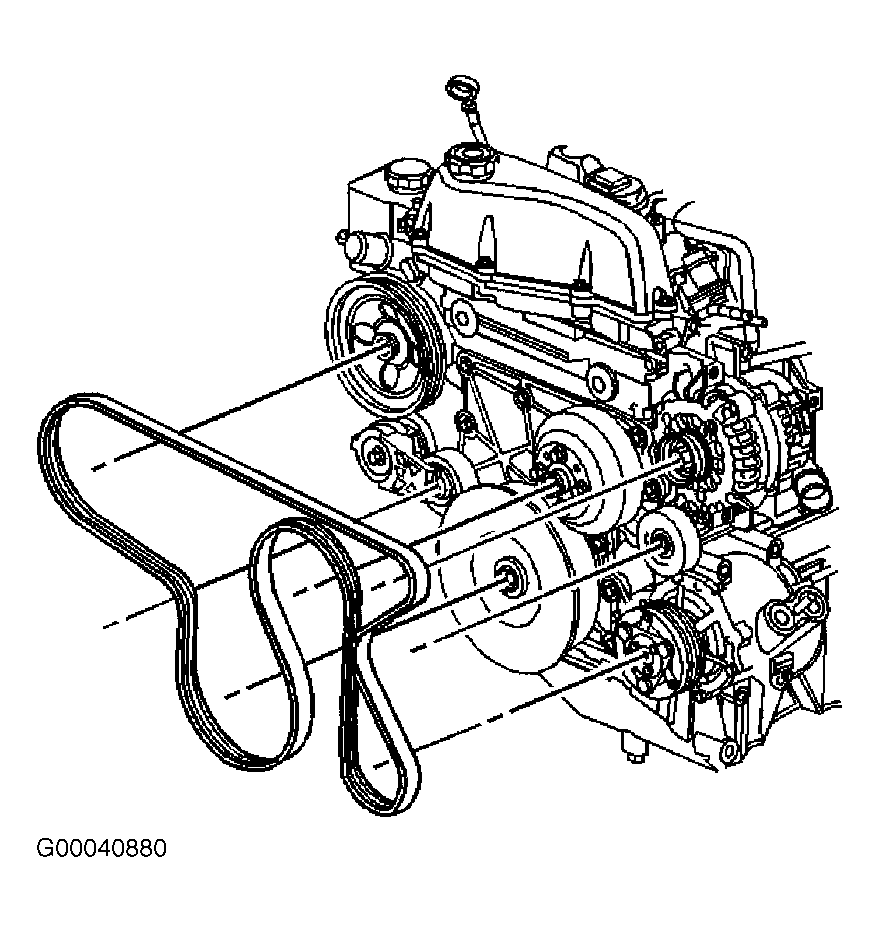

Fig 1: Serpentine Belt Routing (4.2L)
G00040880Courtesy of GENERAL MOTORS CORP.
