Drive Belt Routing: 8.1L

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For A/C belt routing, see Figure .

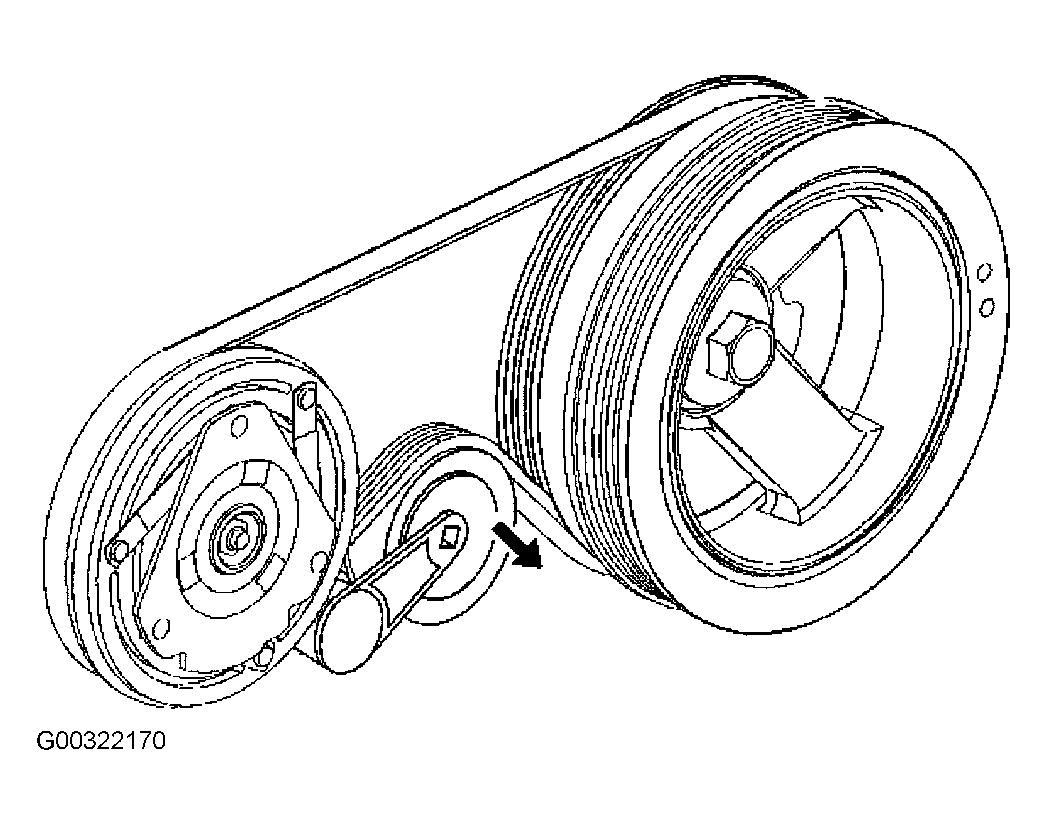

Fig 1: Serpentine Belt Routing (8.1L)

Courtesy of GENERAL MOTORS CORP.
