Installation (Rear - Caliper)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, and 2003 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

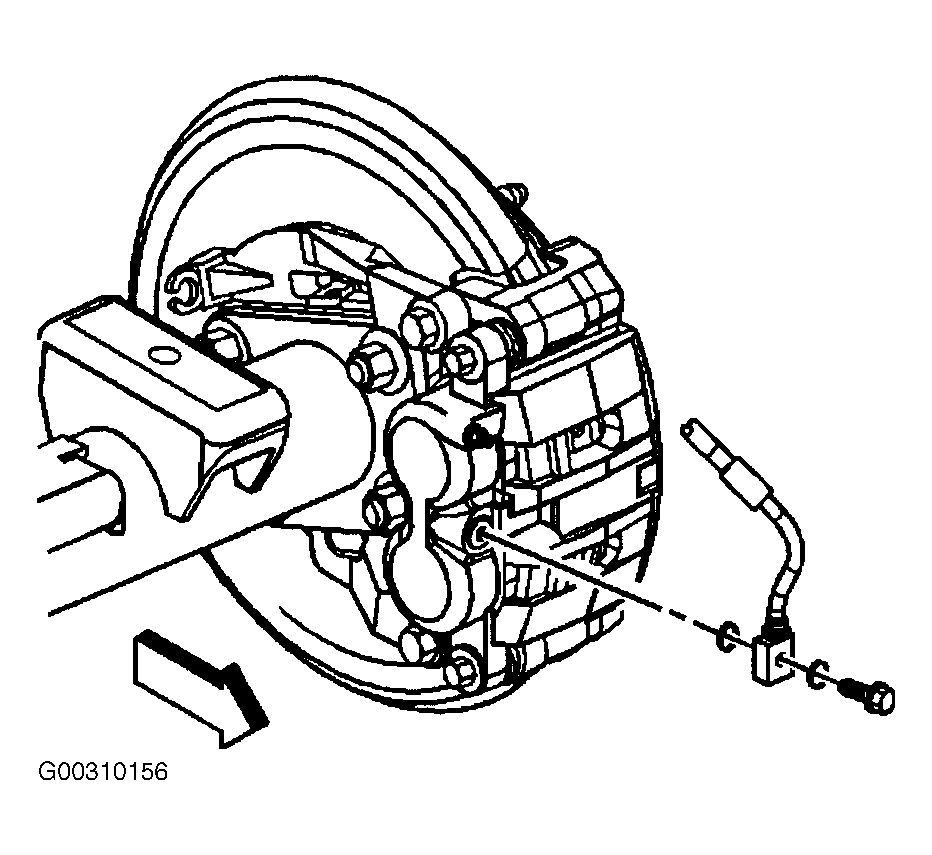

  1. Assemble 2 NEW copper brake hose gaskets and the brake hose bolt to the brake hose. See Figure.
  2. Install the brake hose to caliper bolt and 2 NEW washers to the brake caliper. Tighten the bolt to specification. See TORQUE SPECIFICATIONS .
    NOTE: The brake hose must not be twisted. Make sure the brake hose is not in contact with any suspension component.
  3. Install the brake hose into the mounting bracket.
  4. Install the brake hose retaining clip.
  5. Remove the rubber cap or plug from the exposed brake pipe fitting end.
  6. Connect the brake pipe fitting end to the brake hose. Use a backup wrench on the brake hose fitting end. Do not bend the mounting bracket or the brake pipe. Tighten the brake pipe fitting end to specification. See TORQUE SPECIFICATIONS .
  7. Bleed the hydraulic brake system. See BLEEDING BRAKE SYSTEM .
  8. Install the tire and wheel assembly. Tighten to specification. See TORQUE SPECIFICATIONS .
  9. Ensure that the brake hose does not make contact with any part of the suspension or the tire/wheel assembly. If the brake hose makes contact remove the brake hose and correct the condition.
  10. Lower the vehicle.
